Contents:
1. Bottom protection
2. Inserts and Velcro
3. Toe Pad Base
4. Seat
5. Kickstand covers
6. Handle covers
--------------------------------------------------------------------------------------------------------
1. Bottom protection

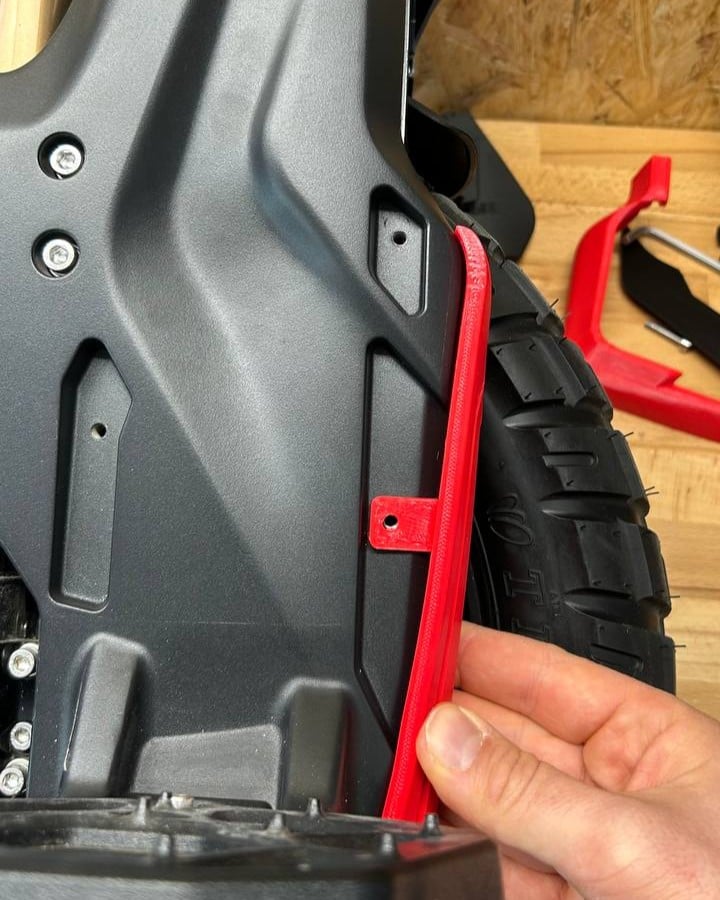

Step 1: Install the part marked as FBB L or R. Start from the middle of the EUC and work your way around so all the tabs snap in place.

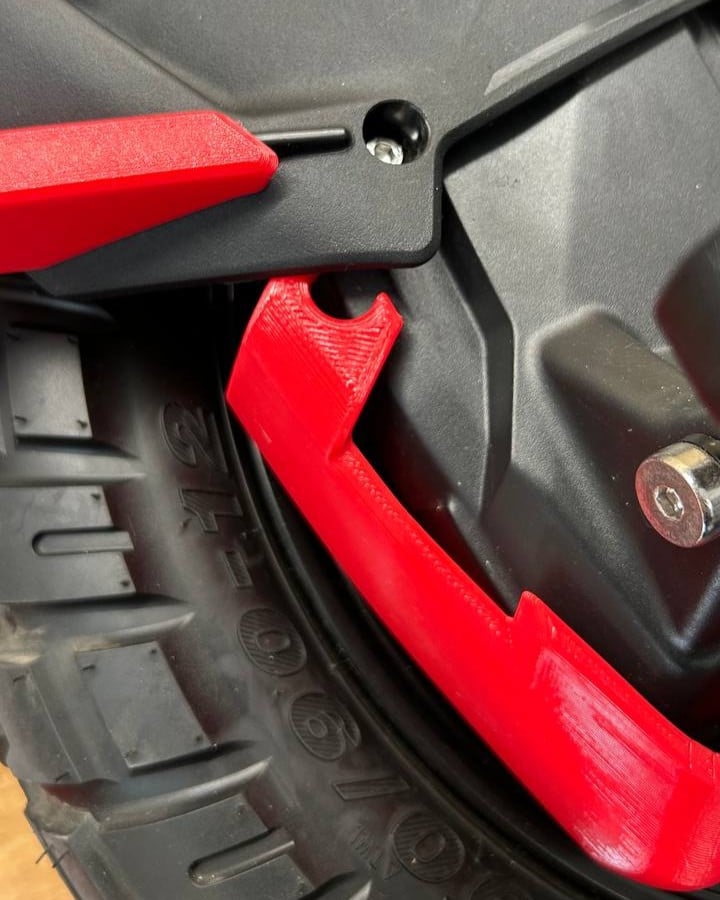

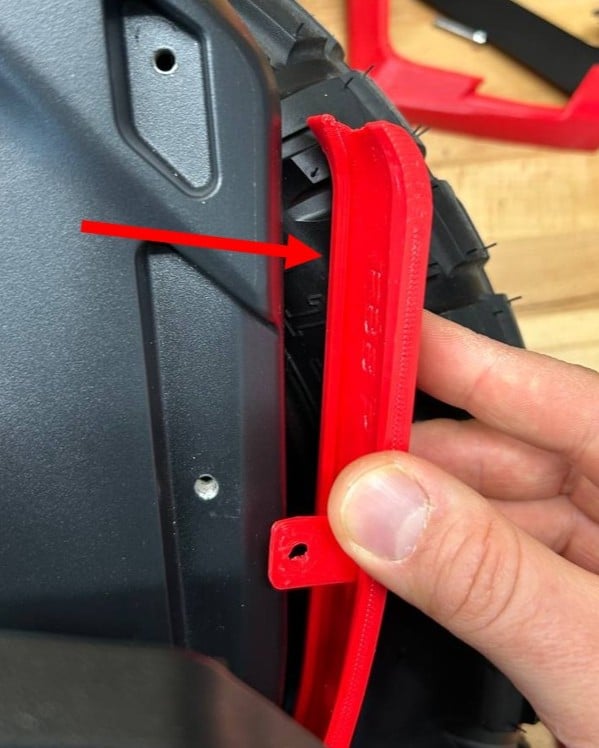

The part marked with the red arrow needs to grab the edge of the EUC.

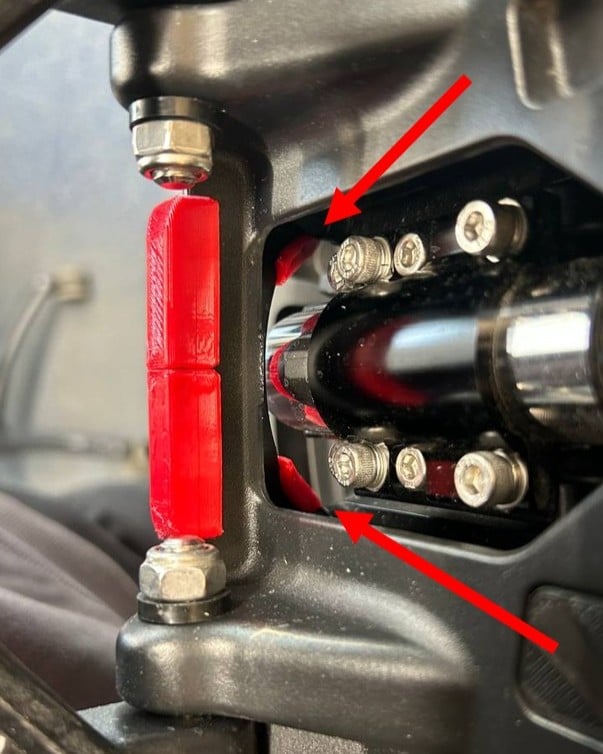

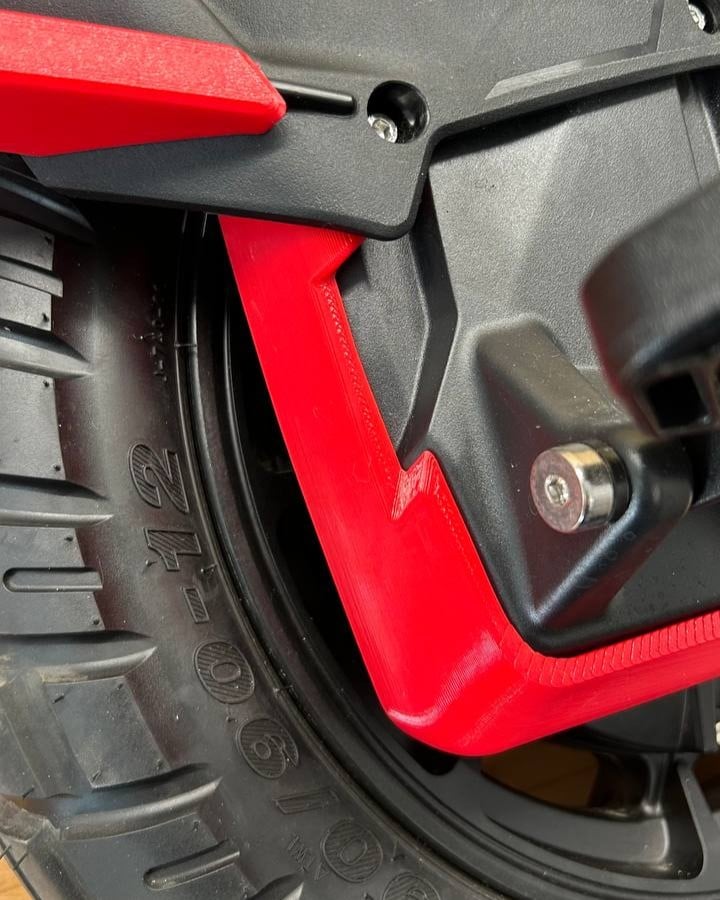

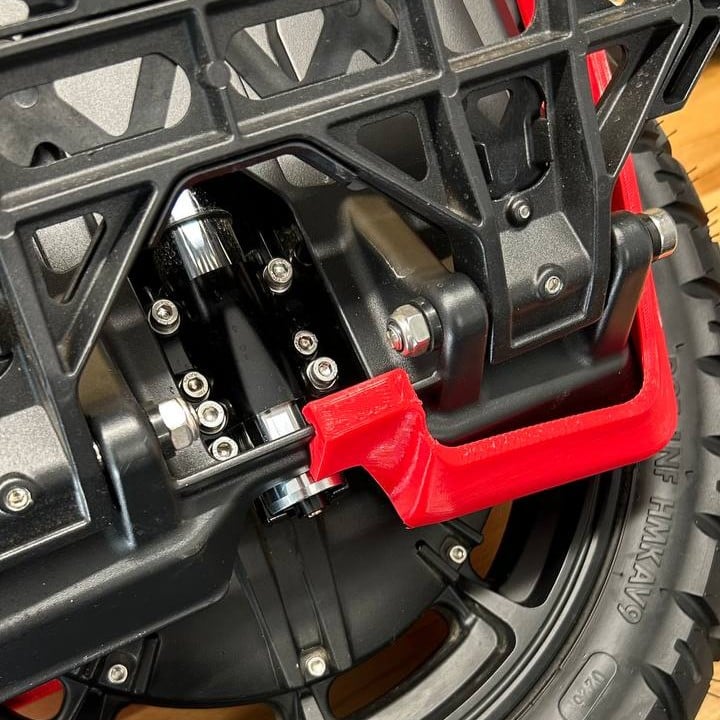

Step 2: Install the part marked as RBB L or R. Again start from the middle. Make sure that all tabs (marked with red arrow) are in place.
--------------------------------------------------------------------------------------------------------
2. Inserts and Velcro

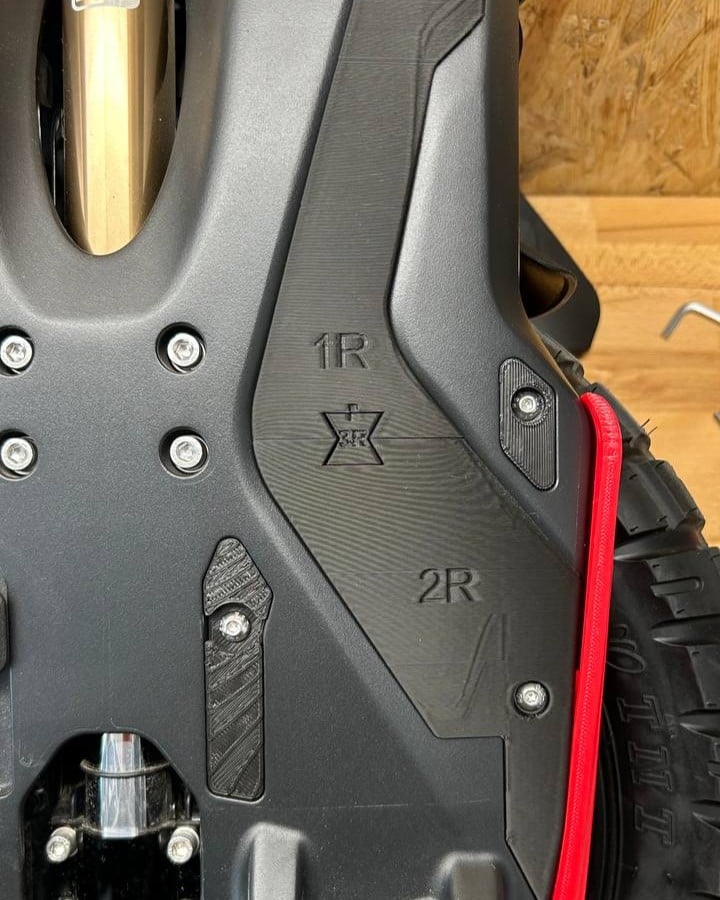

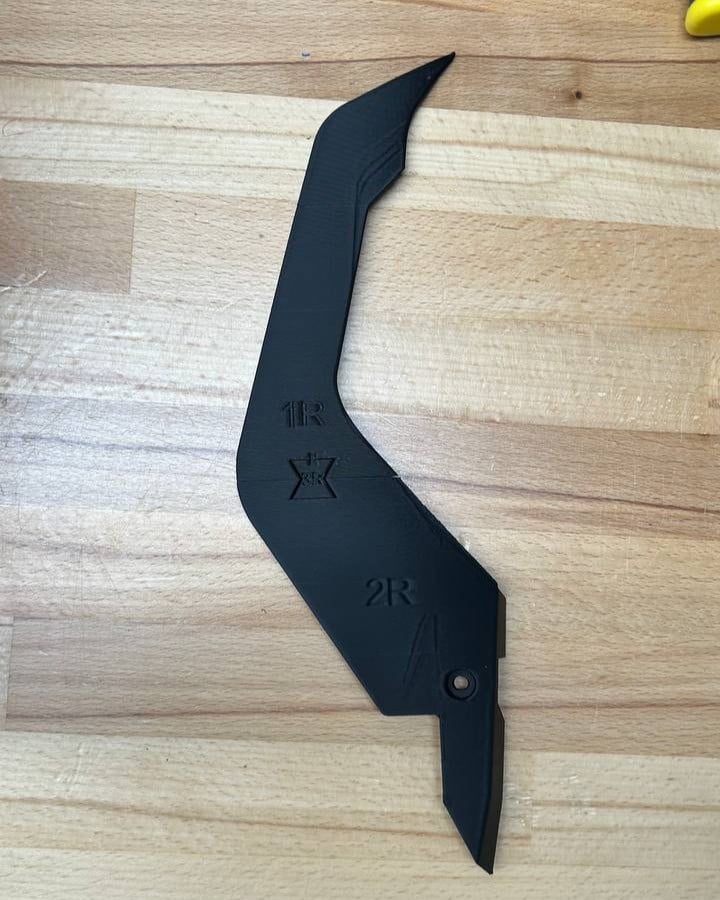

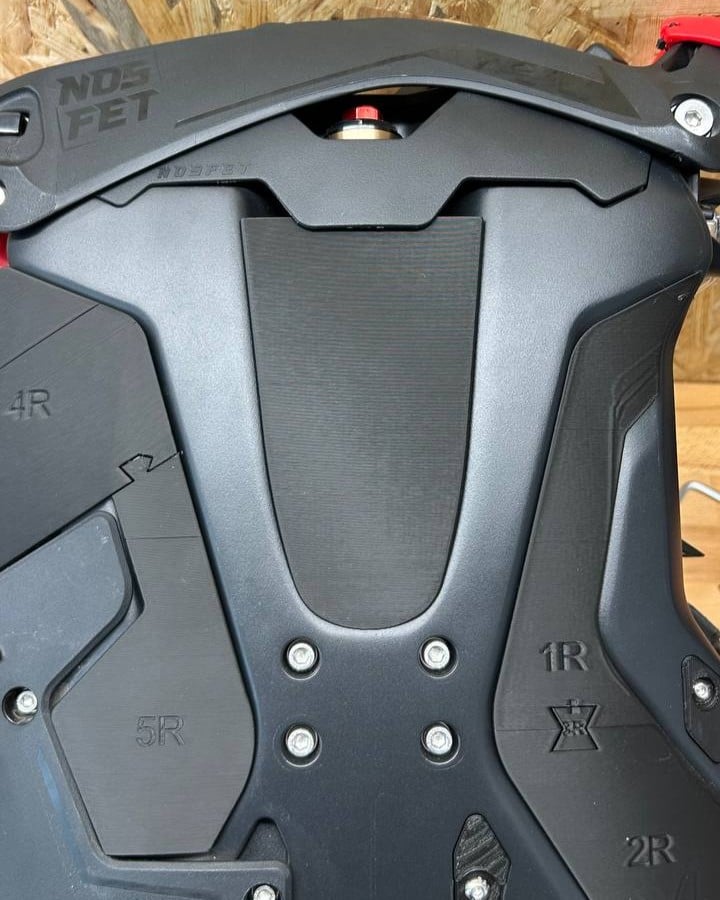

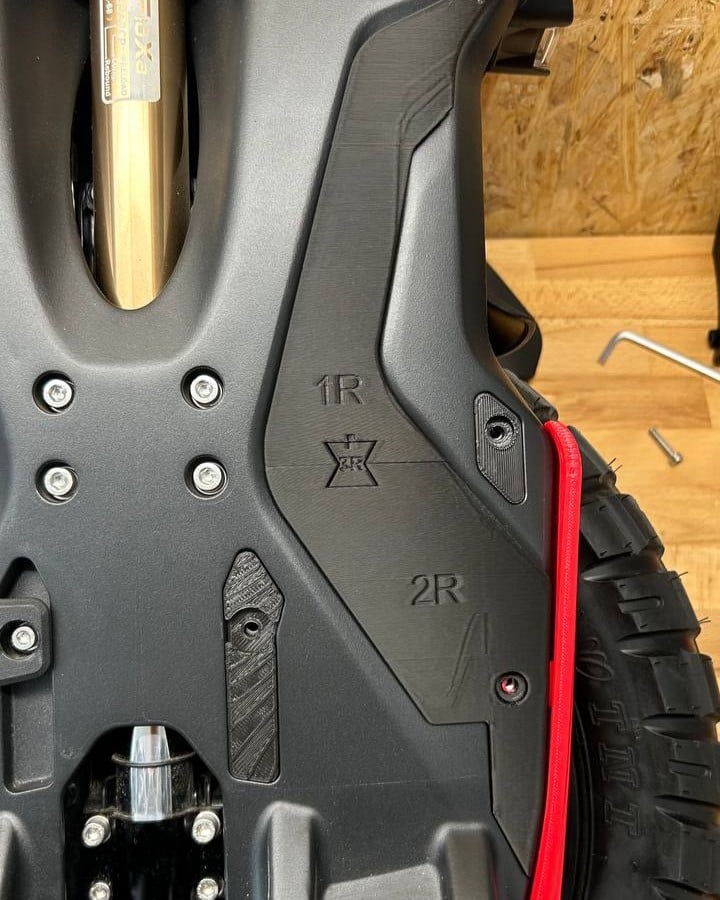

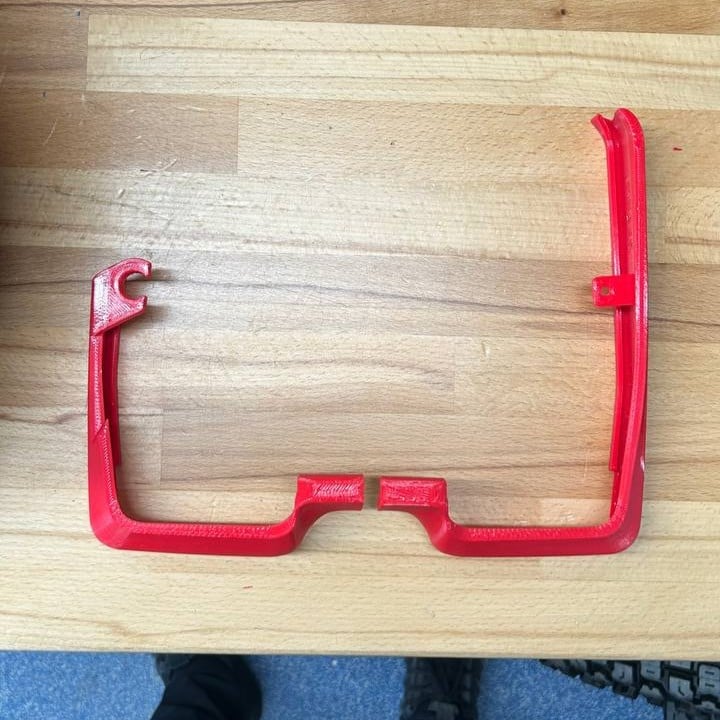

Step 1: Connect parts 1 and 2 with connector 3. Parts are marked L and R for each side. Put it in place together with 2 small inserts that fill the holes next to the main insert. Secure the pieces with the round-head screws.

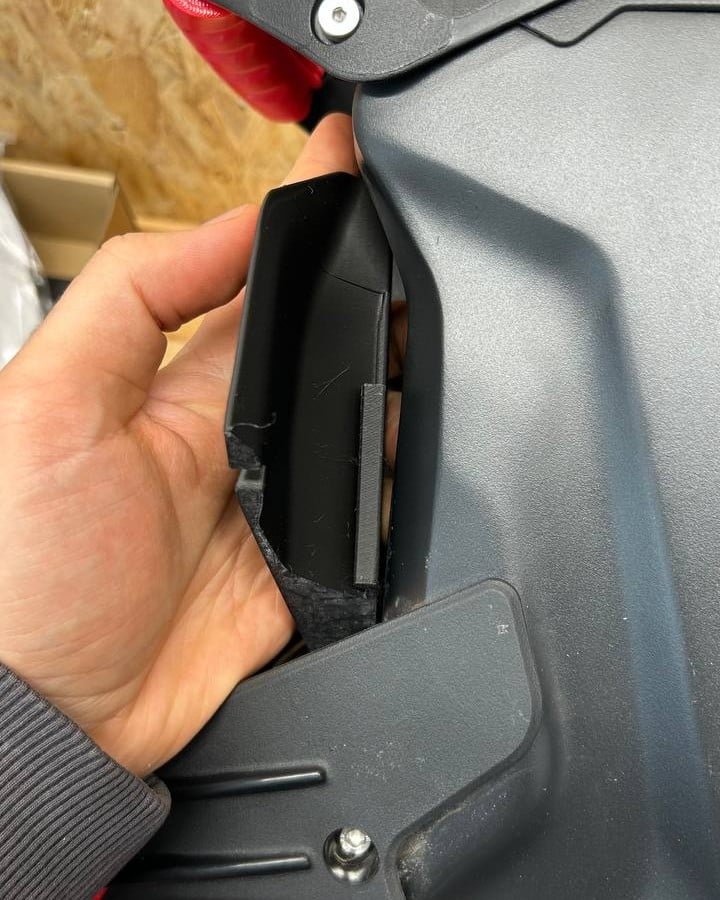

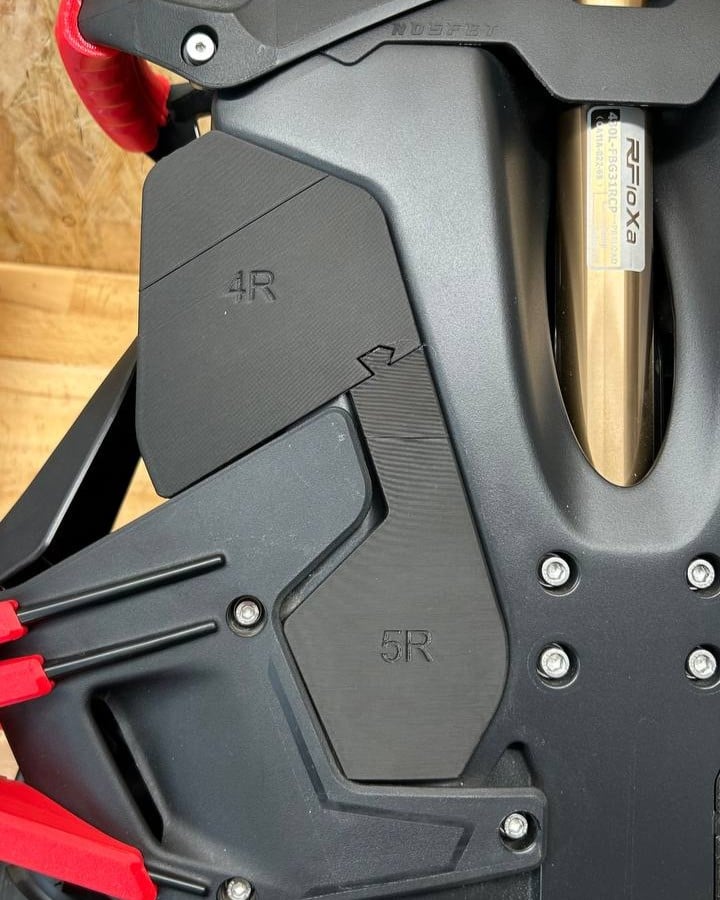

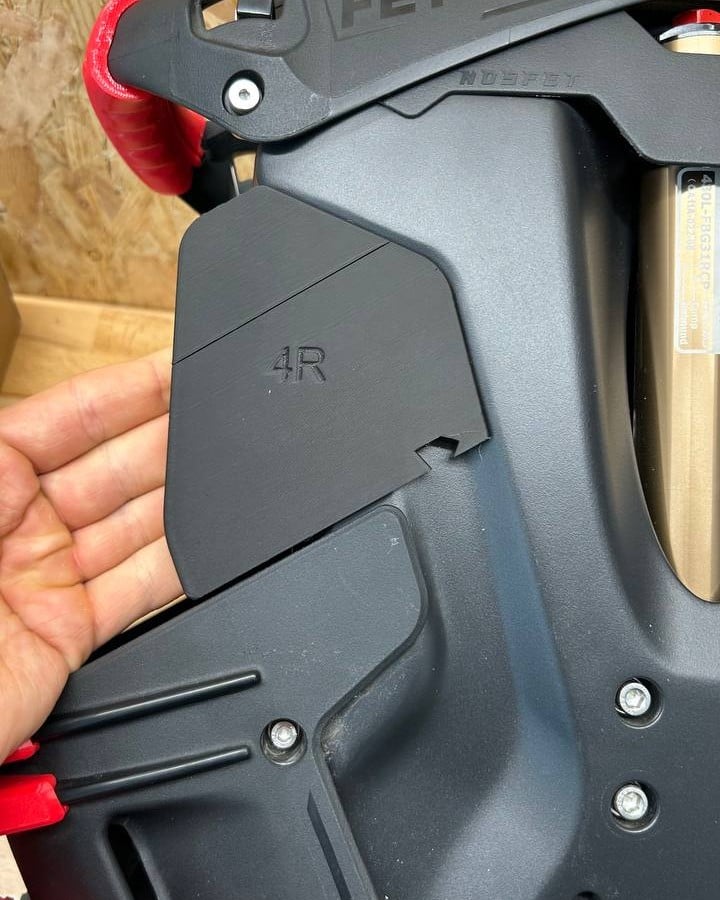

Step 2: Install the part 4. In this case there also is a tab that grabs the edge of the shell. Then slide the bottom of part 5 under the kickstand and connect the top with part 4.
Step 3: Finish with the center insert (it is the same for both sides)

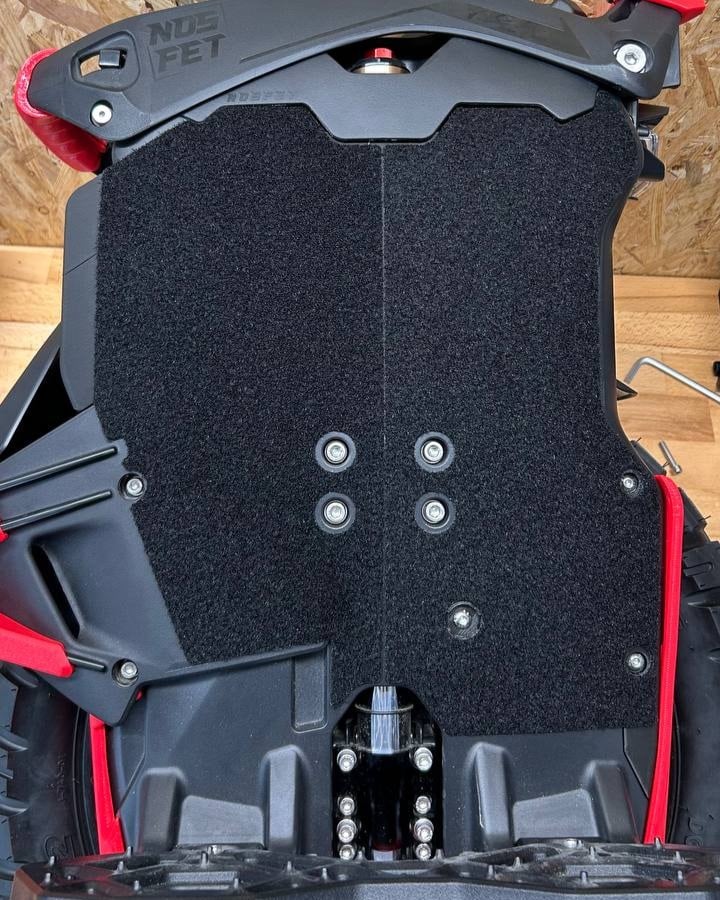

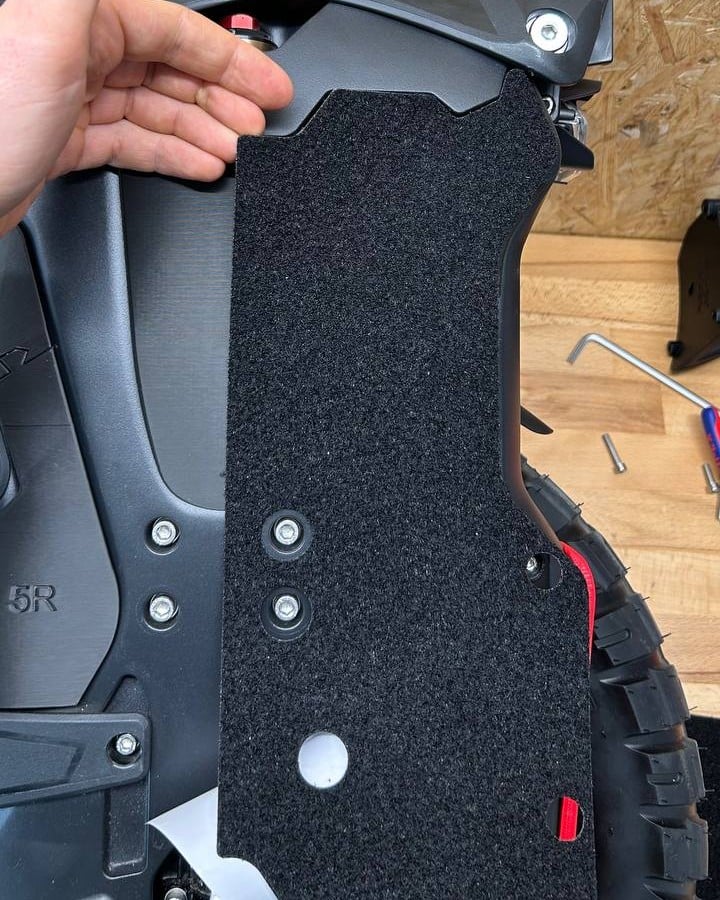

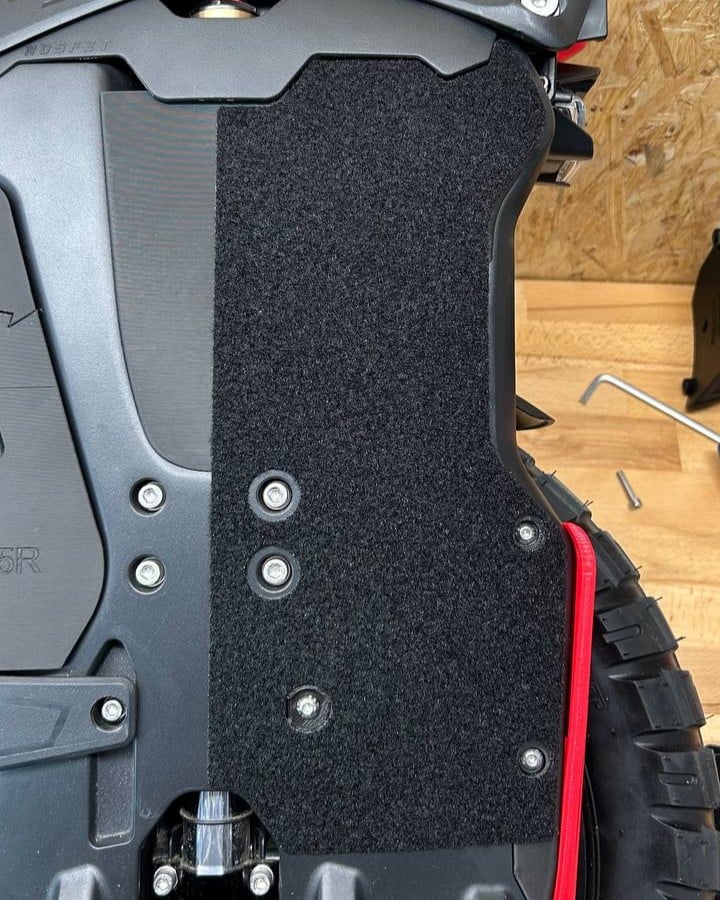

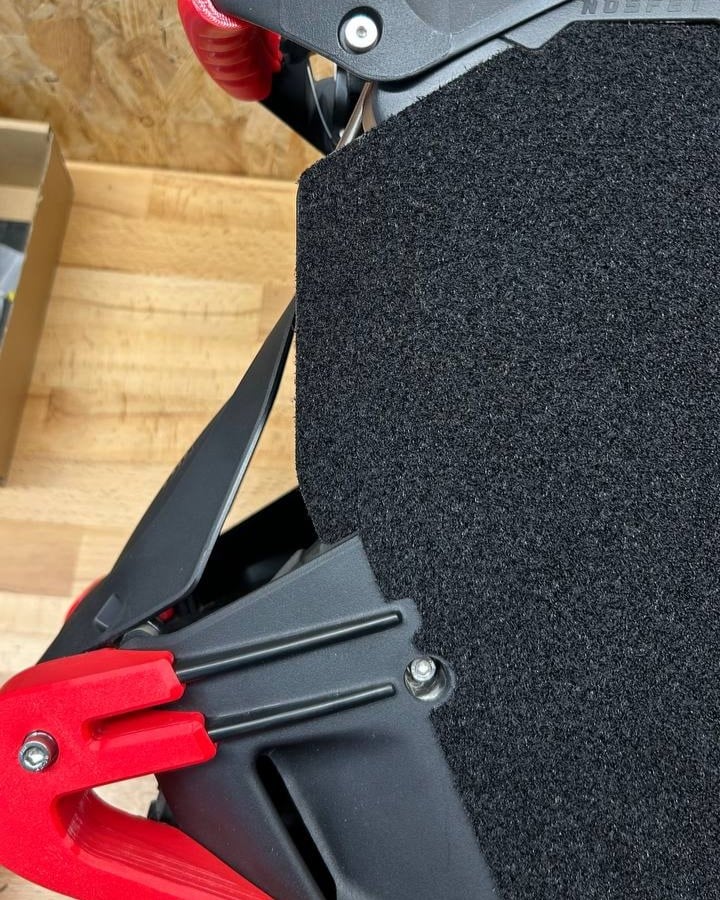

Step 4: Apply the front part of the Velcro. Make sure to align it properly with the edges and holes. If the holes are covered, cut out the excess of the velcro so you can install the Toe Pads mount in the next steps. Then proceed with the rear, don't forget about the small piece covering the end of the rear insert.
--------------------------------------------------------------------------------------------------------
3. Toe pads base

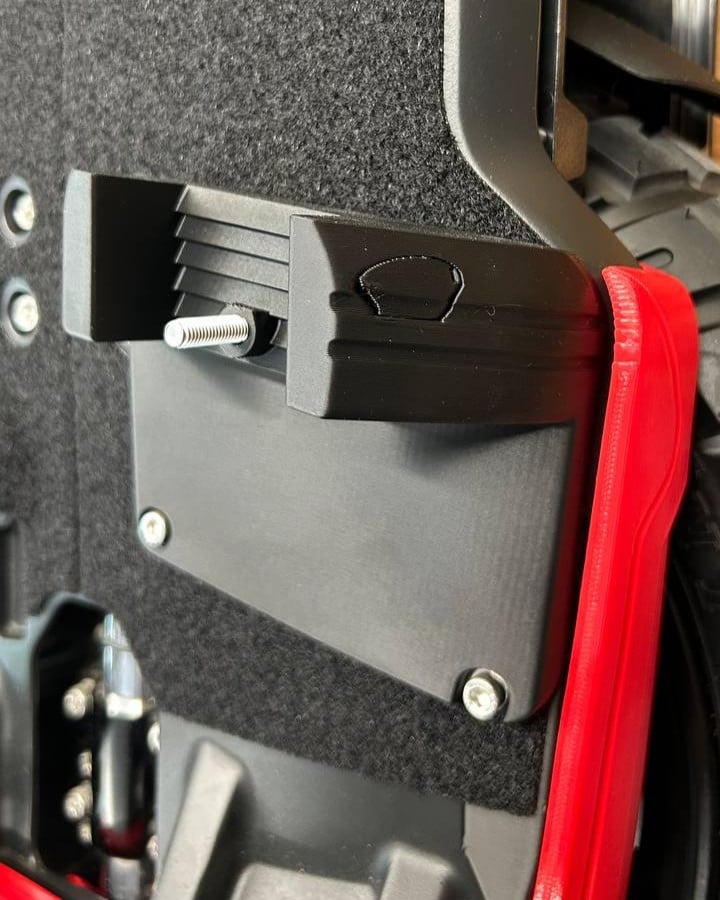

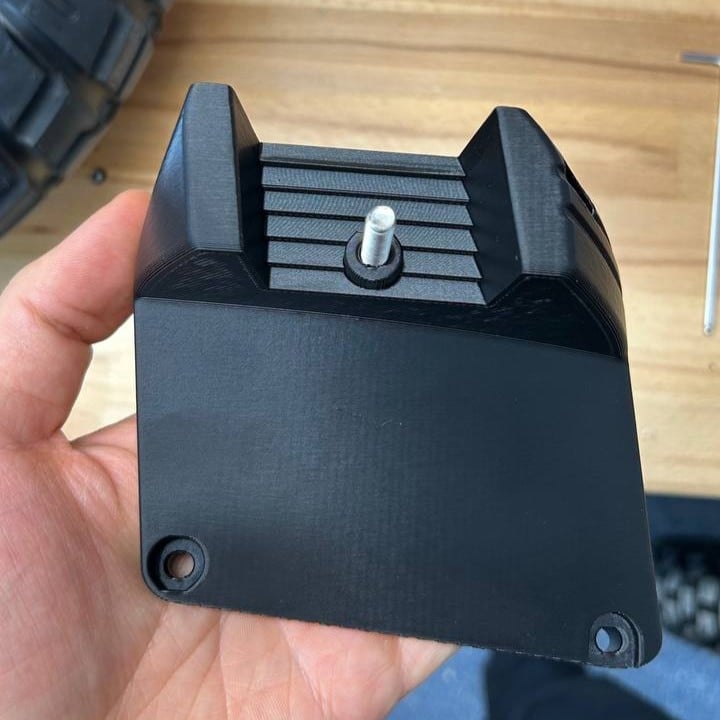

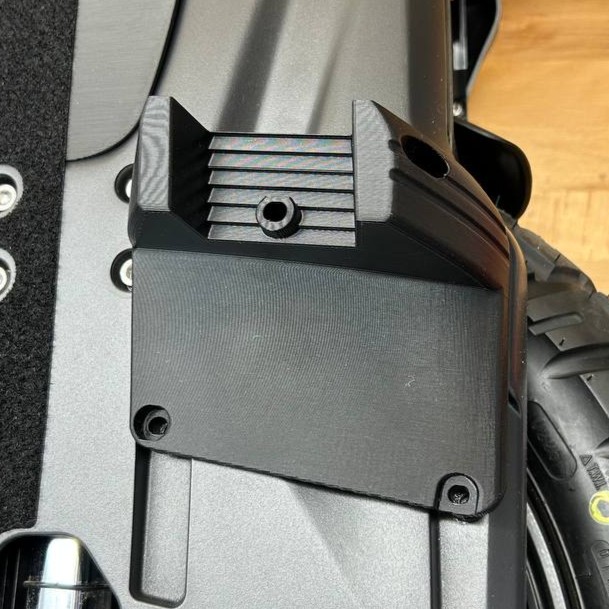

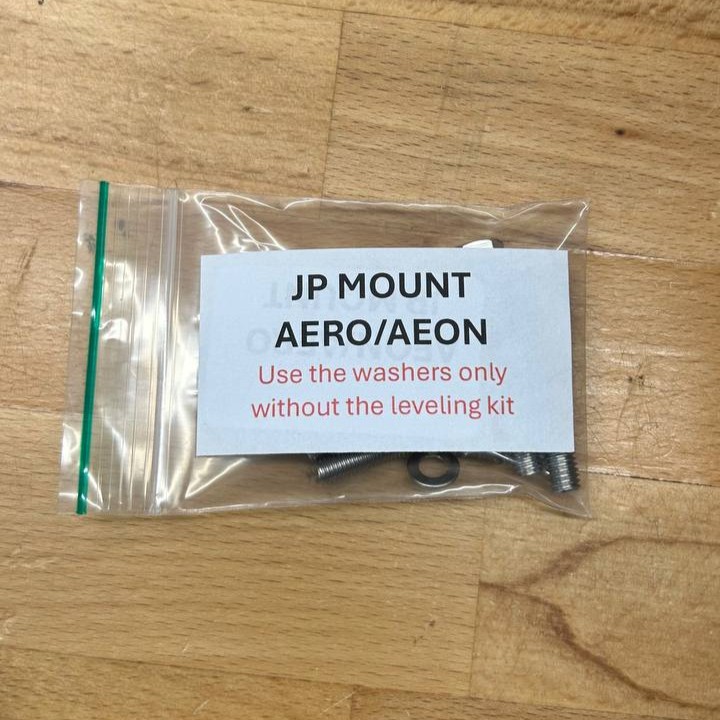

Step 1 : Insert the M6x40 screws into the Toe Pad bases. Bases are mounted on the EUC with 3 M5 screws on each side.

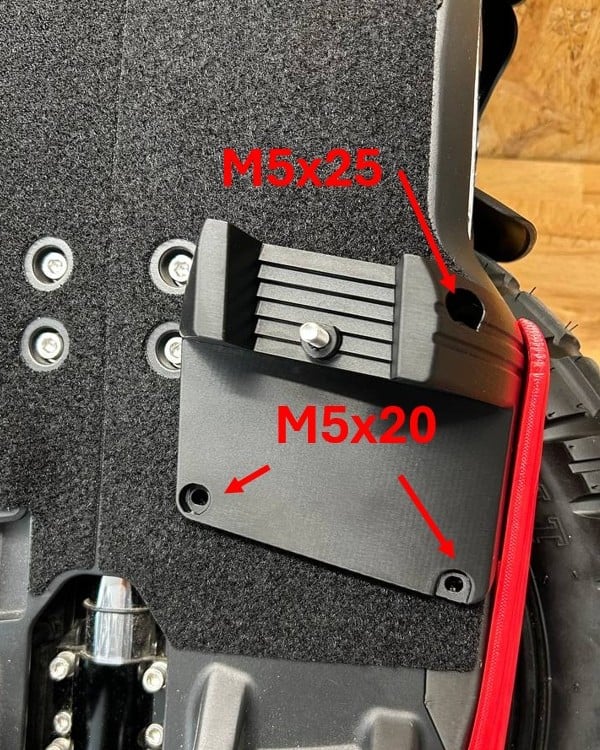

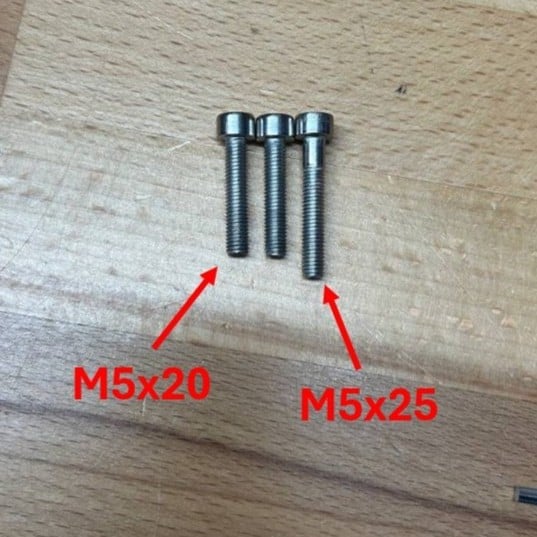

Step 2: Please note that there are M5x20 and M5x25 screws and they need to be installed in the right holes as marked in the photo.
When all screws are installed, insert the provided plug.

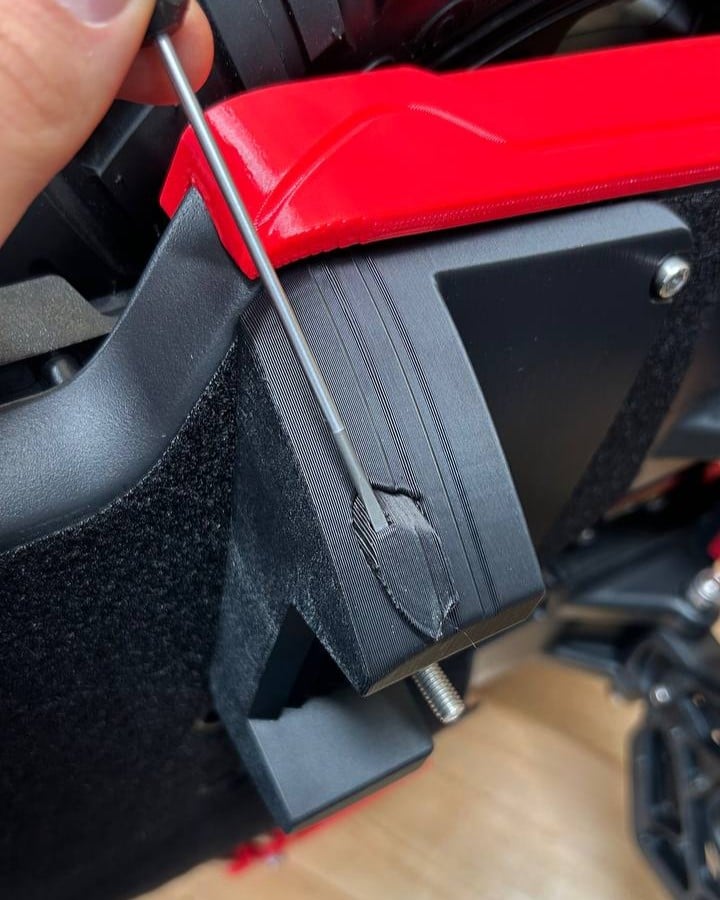

Step 3: if you need to remove the plug, push it out using small flathead screwdriver.
--------------------------------------------------------------------------------------------------------
4. Seat

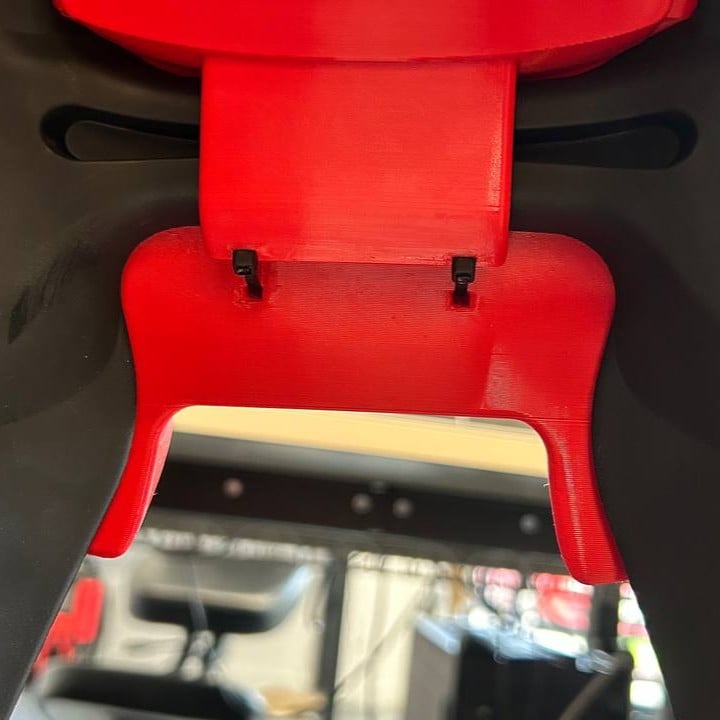

Step 1 - Slide the seat on the top handle. Make sure that the flap on the bottom goes underneath the handle.

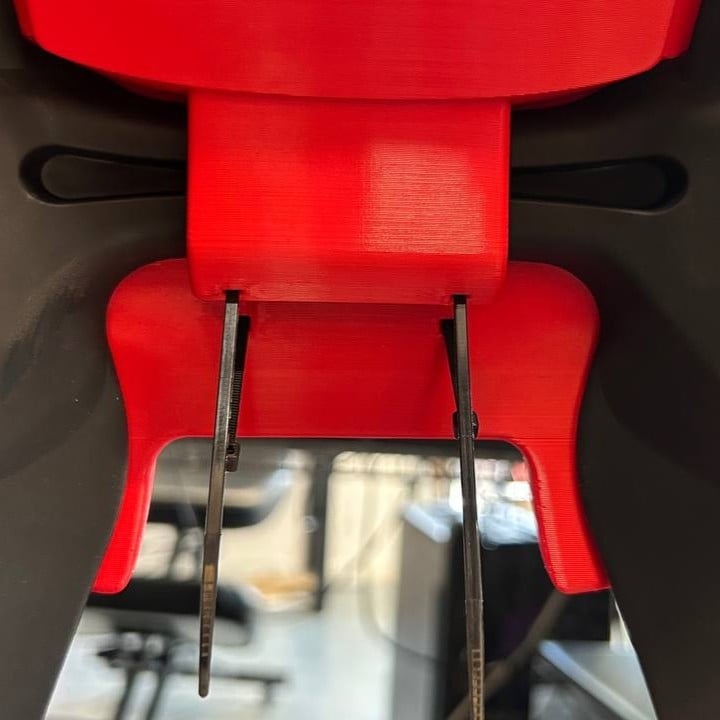

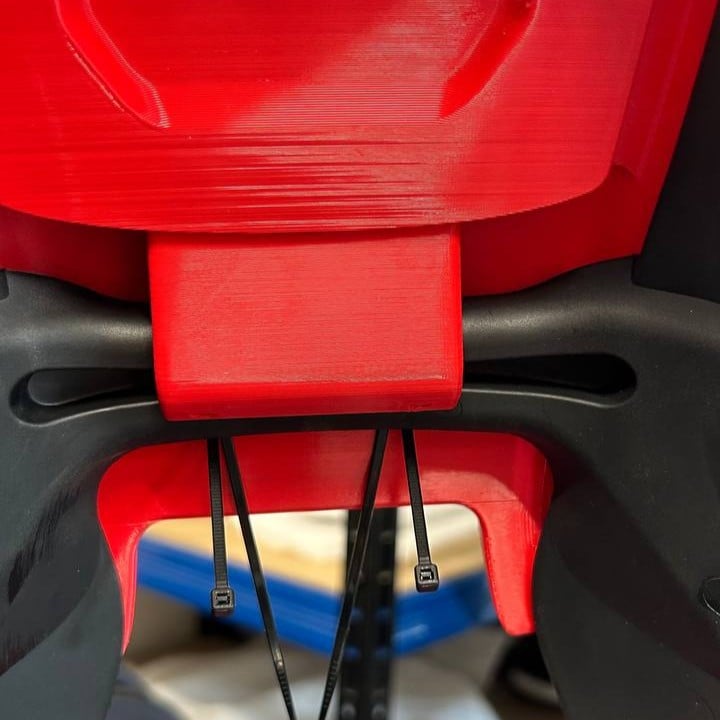

Step 2: pull the ends of the zipties through the holes, tighten and trim the ends.
--------------------------------------------------------------------------------------------------------
5. Kickstand Covers

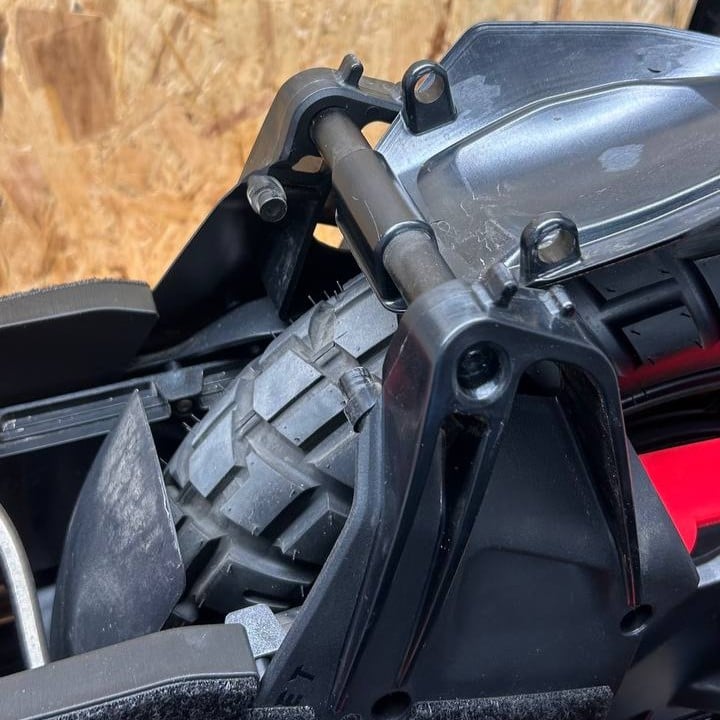

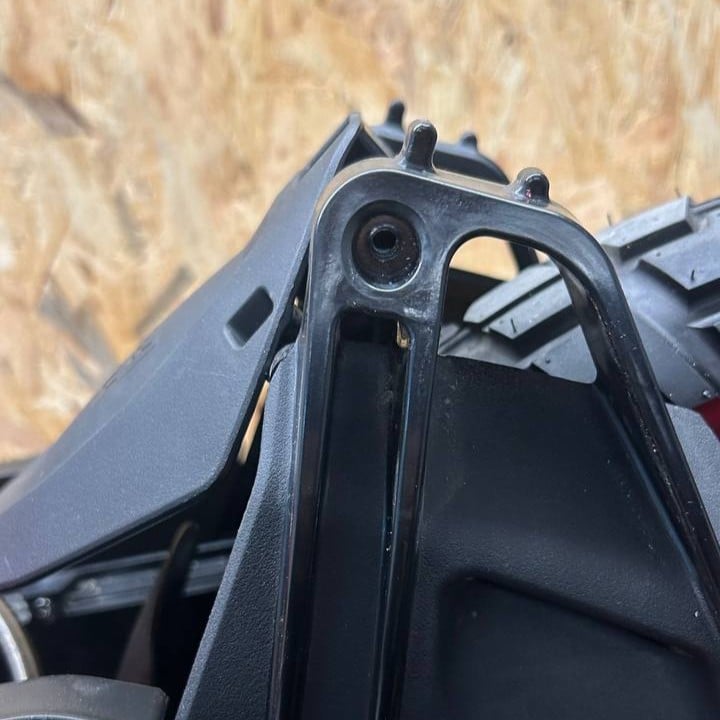

Step 1: Remove the screw holding the kickstand bar on both sides. Pull them away from each other to release the mudguard and rotate it away like in the photo.

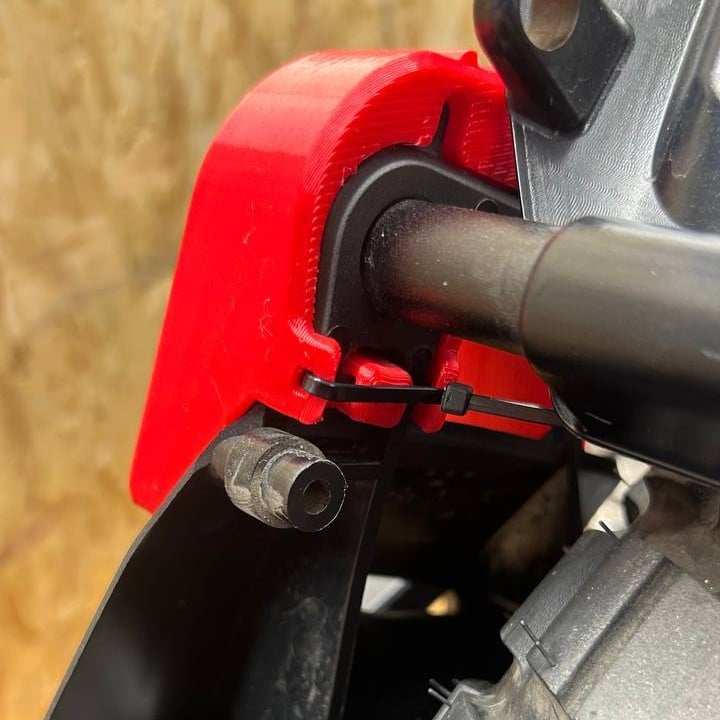

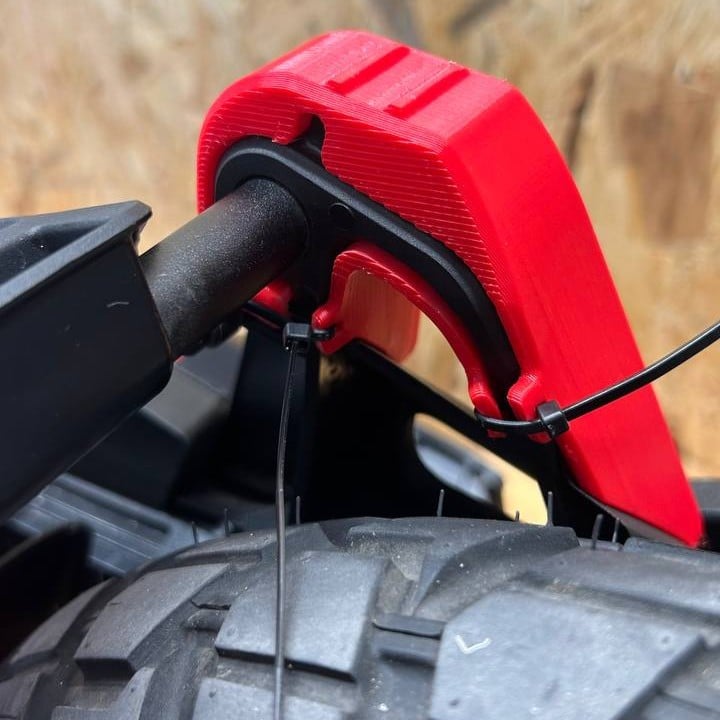

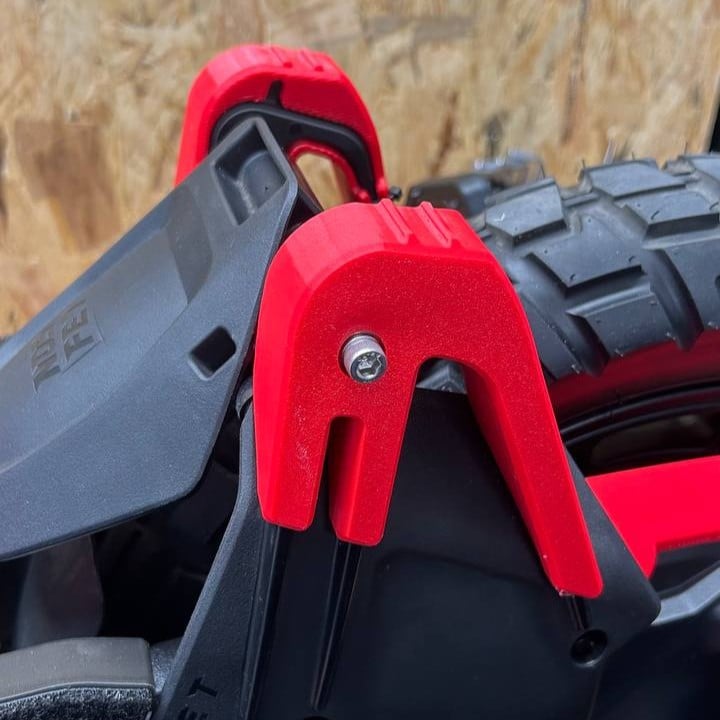

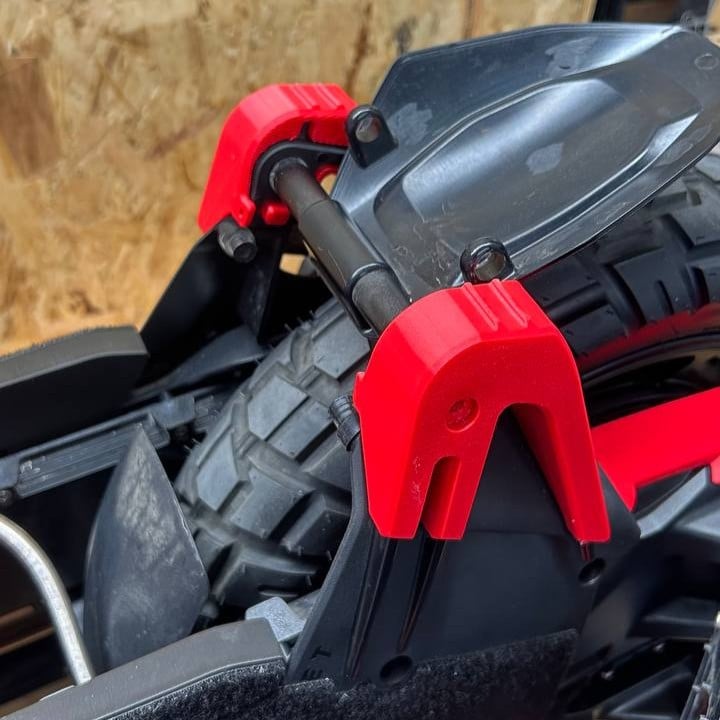

Step 2: slide the covers on the kickstand and secure it in place with zipties. Reinstall the stock screws
--------------------------------------------------------------------------------------------------------
6. Handle Covers

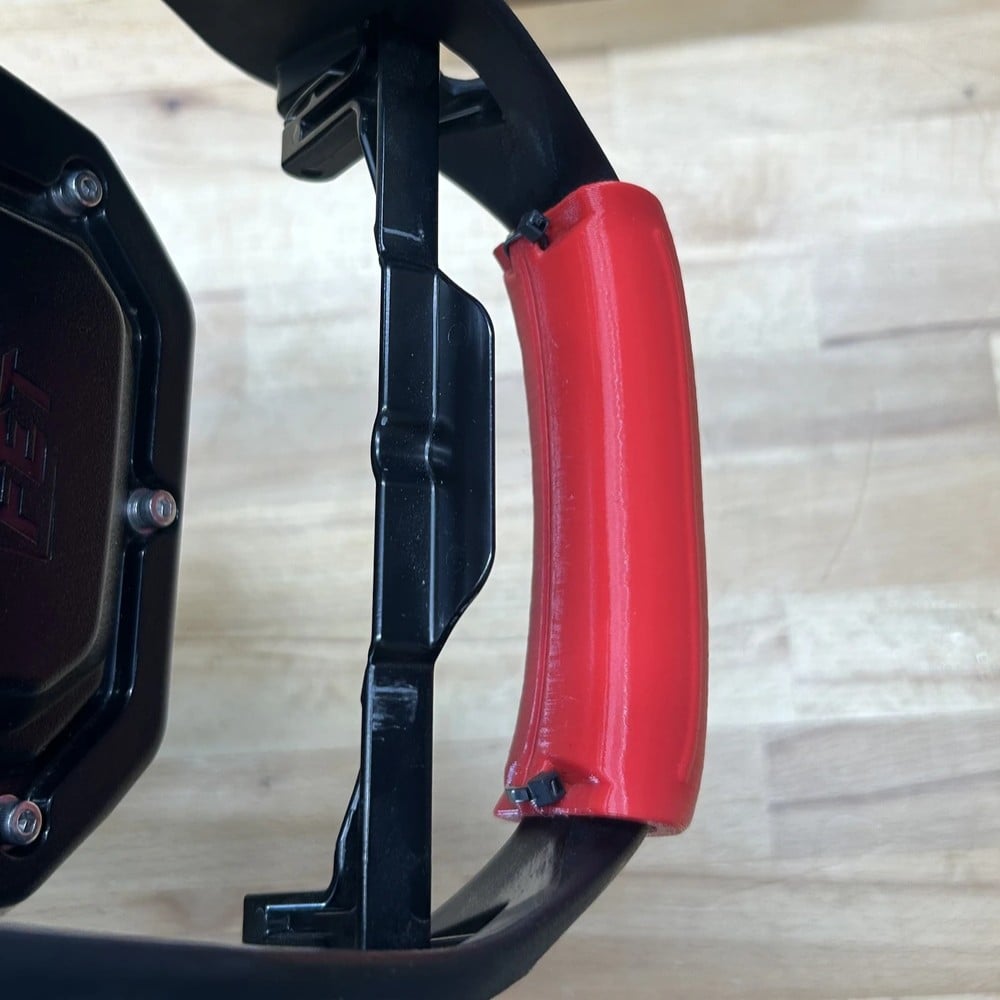

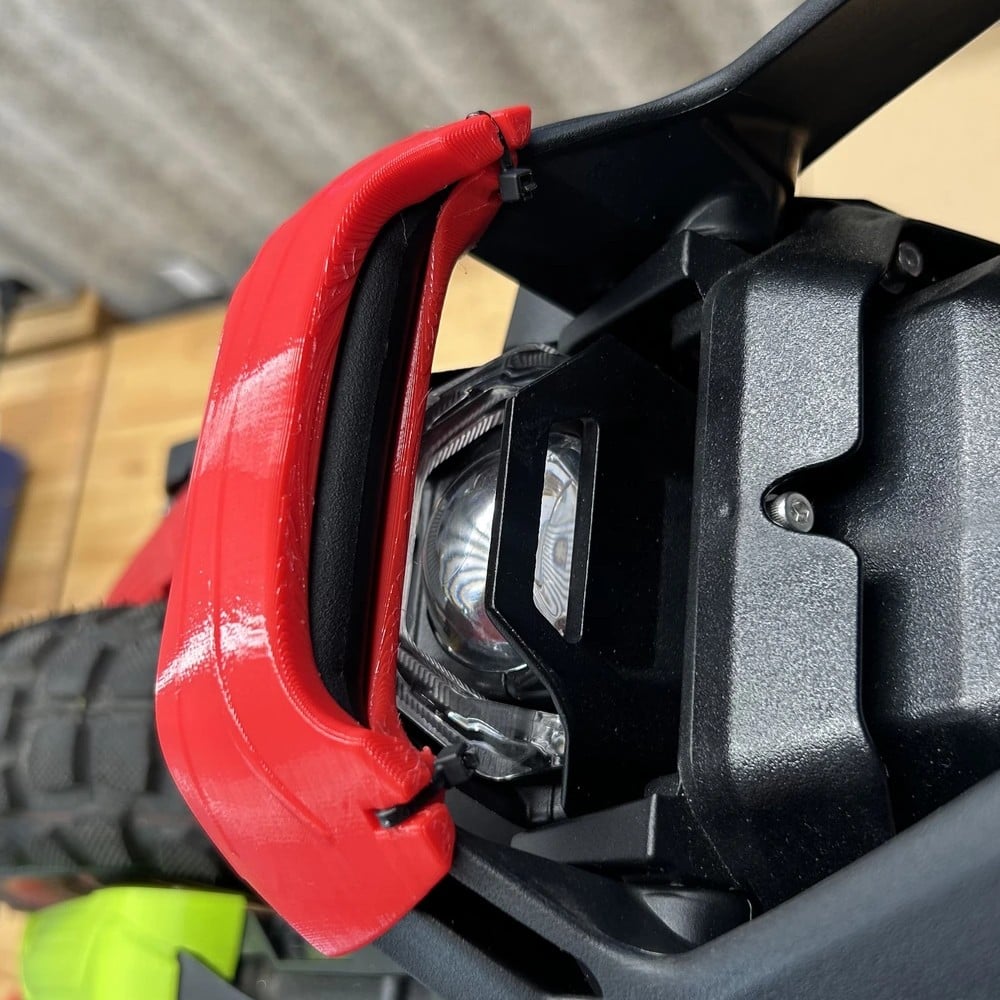

Step 1: slide the covers on the handles. Secure with provided zipties.
