1. Upper Armor

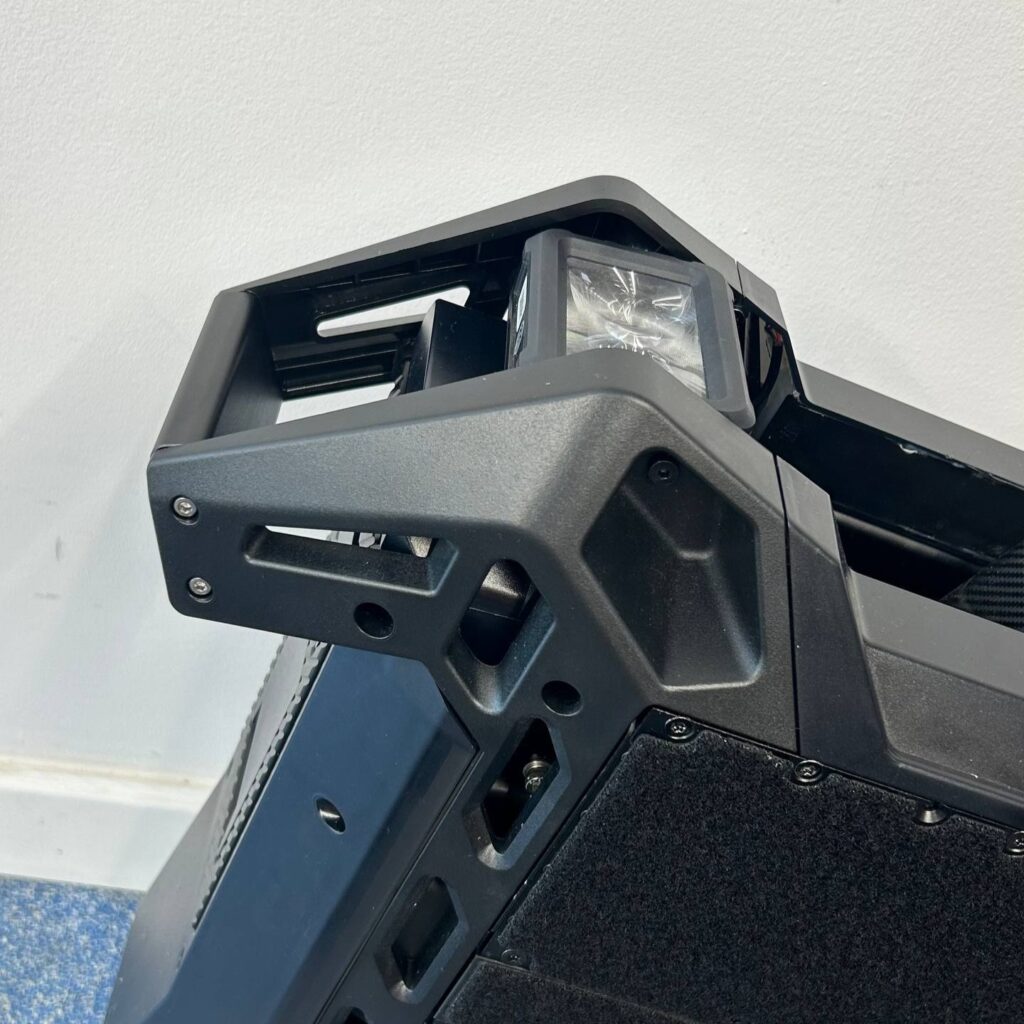

Step 1 - Remove the screws holding the front lamp and the display, unplug and remove them from the EUC.

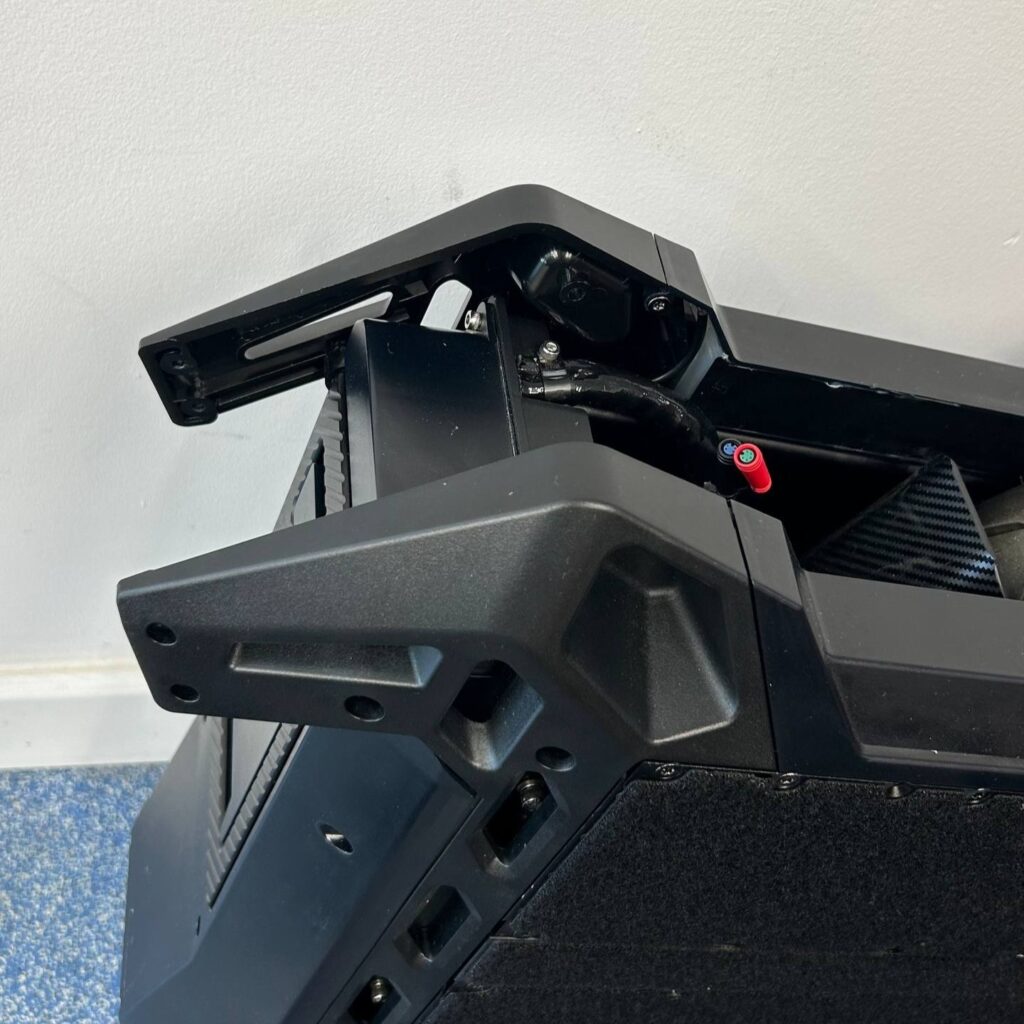

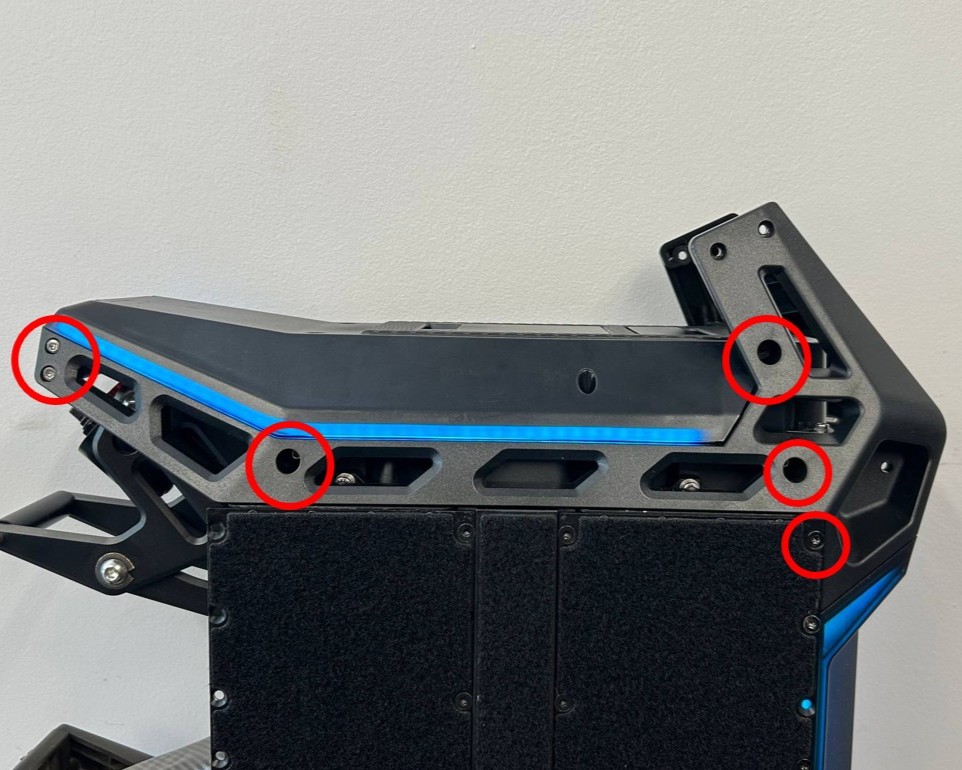

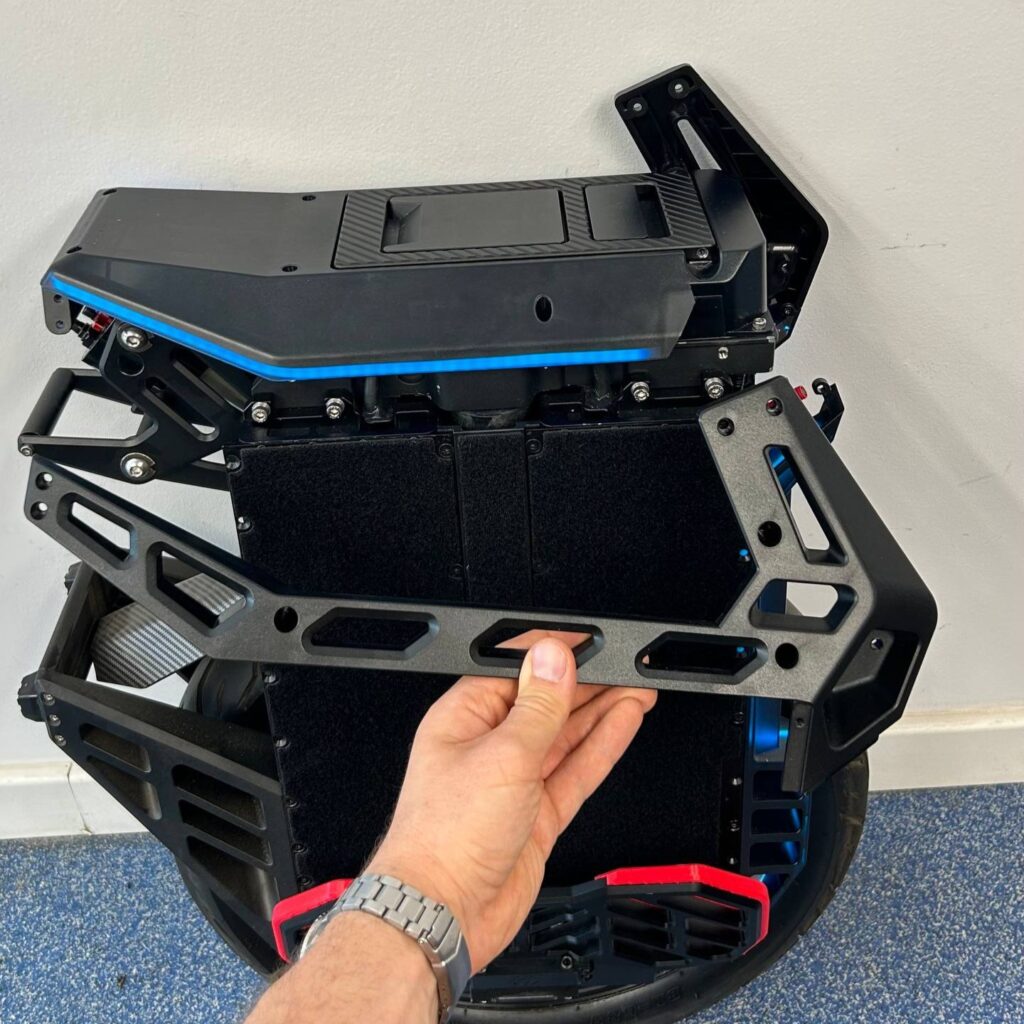

Step 2 - remove all the screws holding the plastic trims on both sides. Then carefully remove the part. Keep the screws organised as they are different type and size.

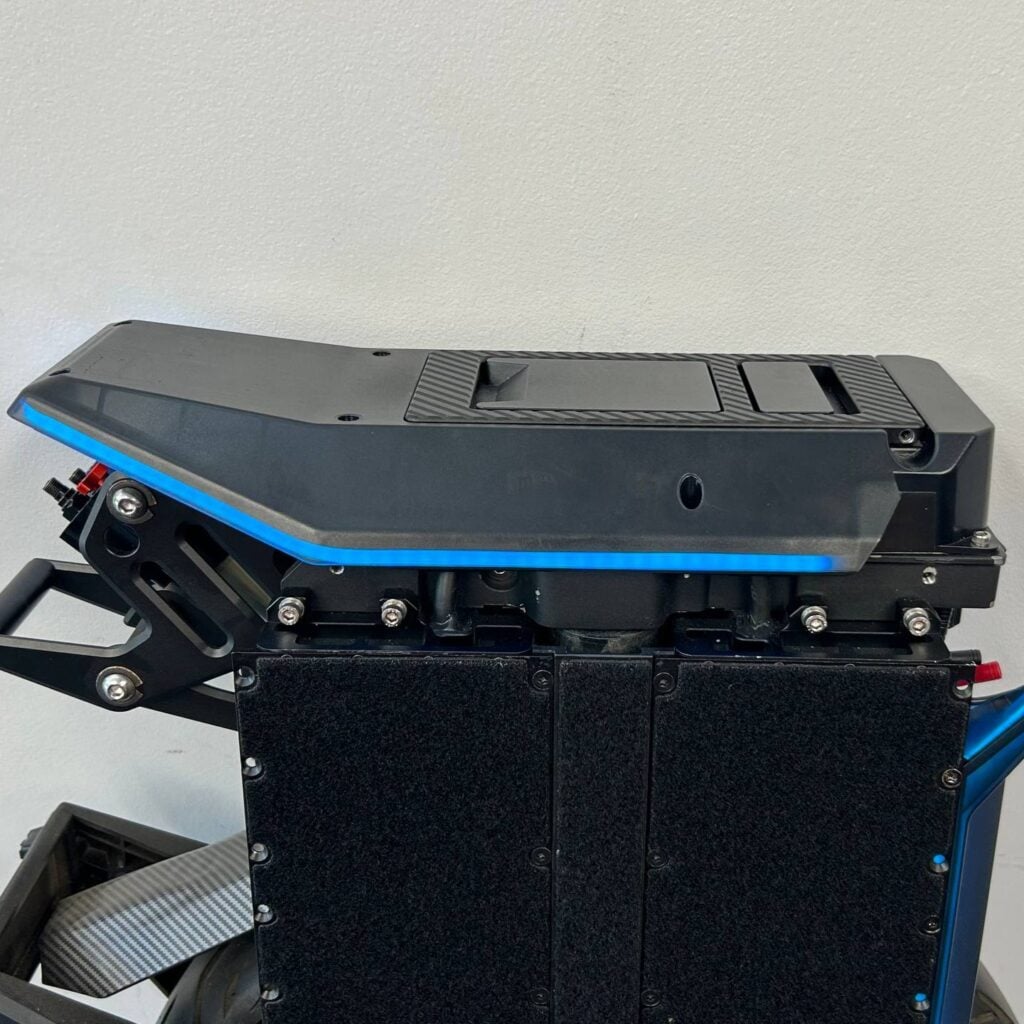

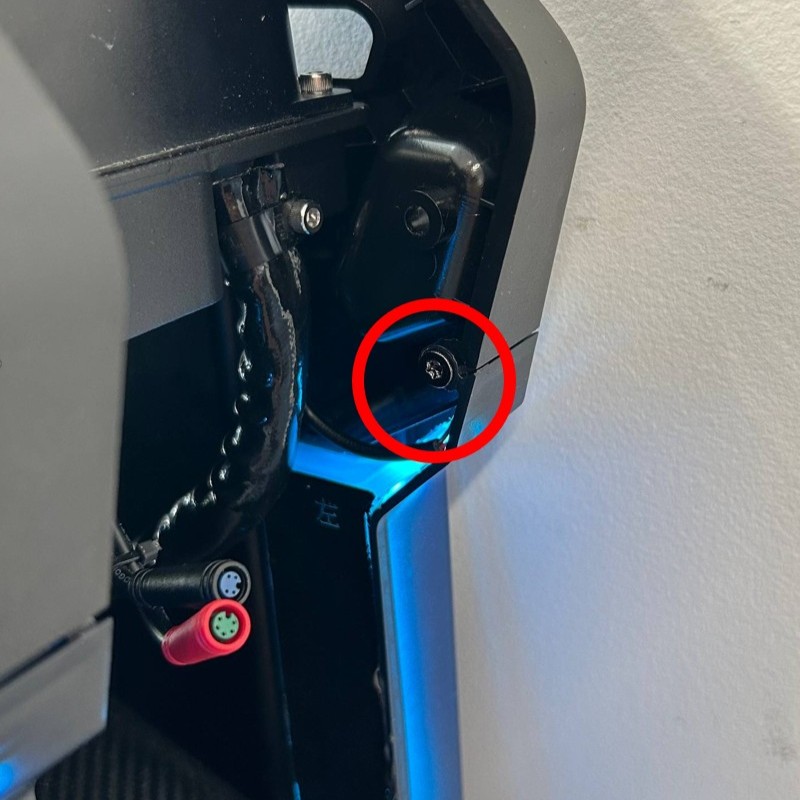

Step 3 - remove the 2 screws holding the rear bar from the top.

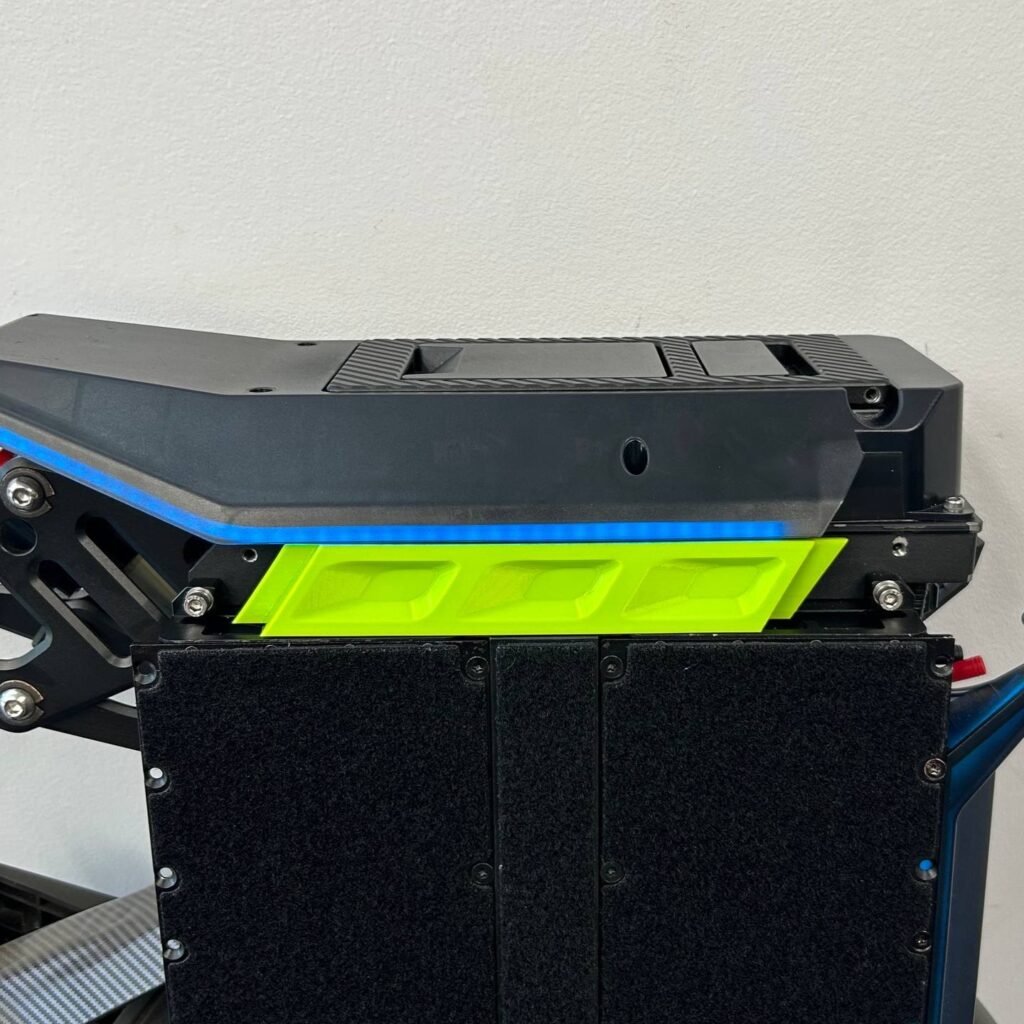

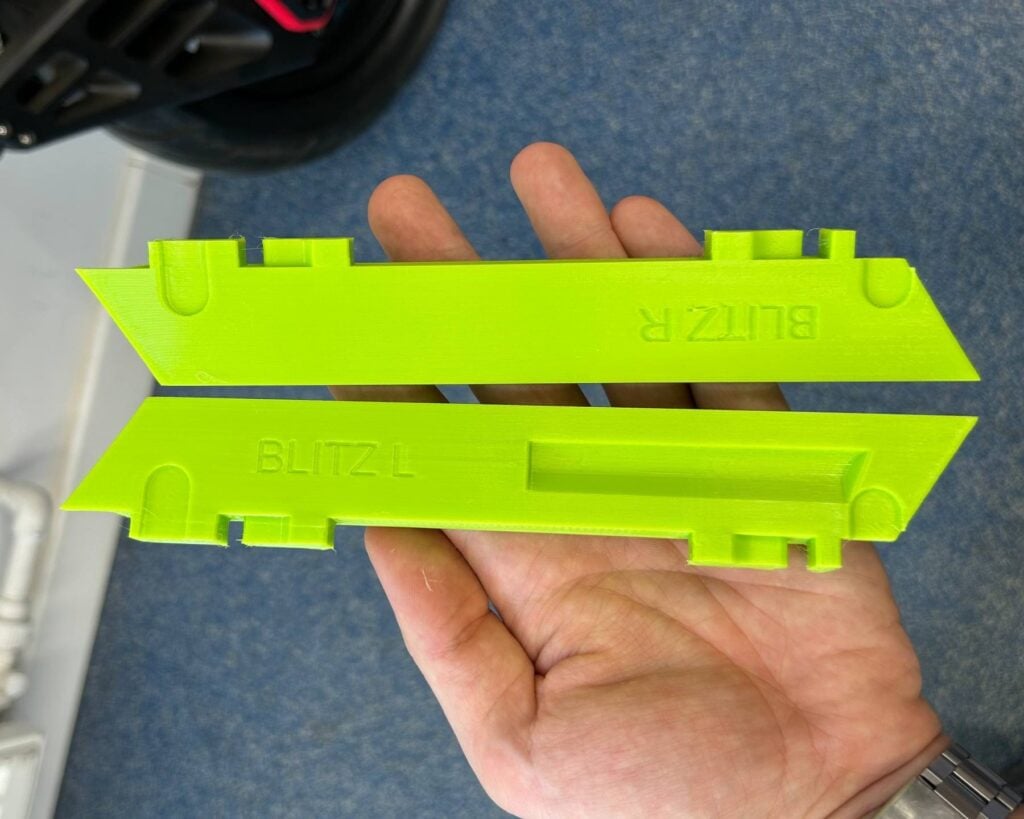

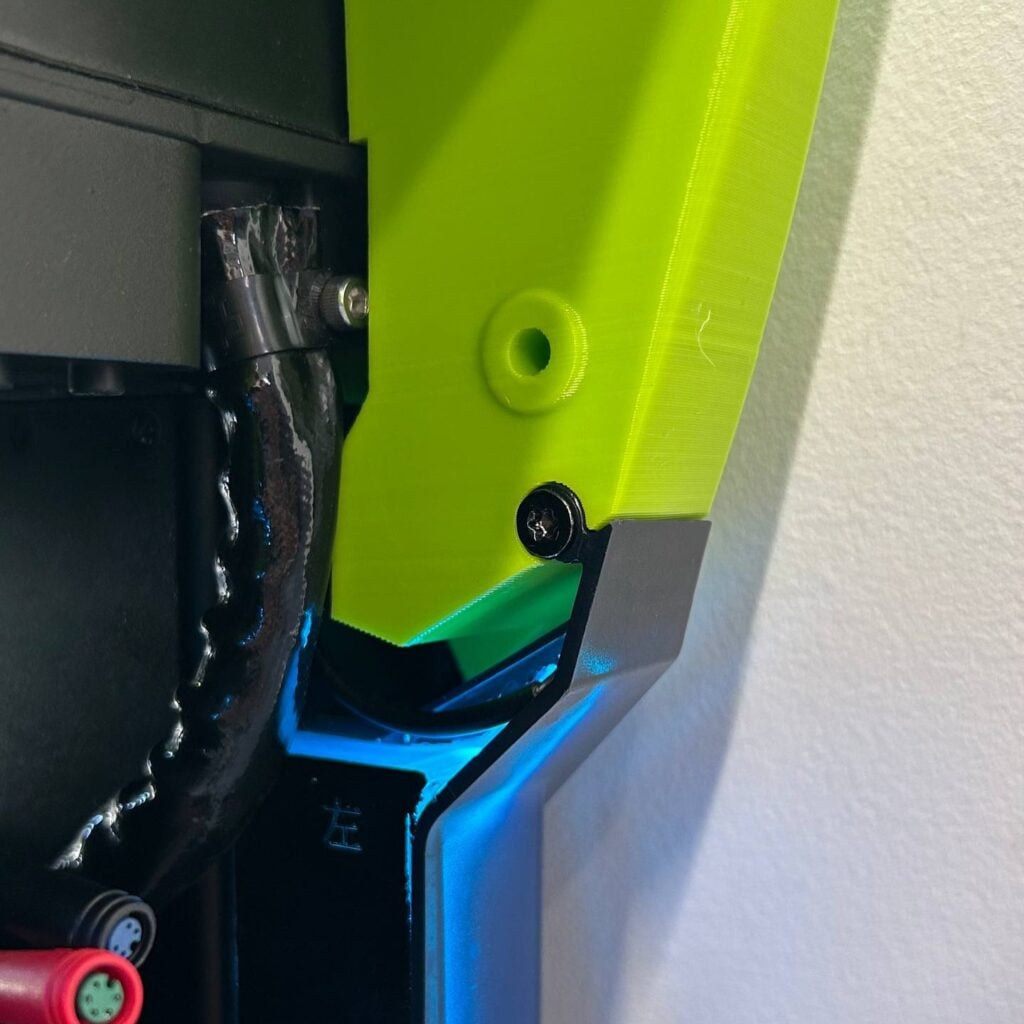

Step 4 - install the top-center parts. Please note that they are marked for left and right side.
Step 5 - pick the front bumper mounts from the installation pack. Insert the square M4 nuts into the slots and install the mounts on the EUC using provided (not stock) screws.

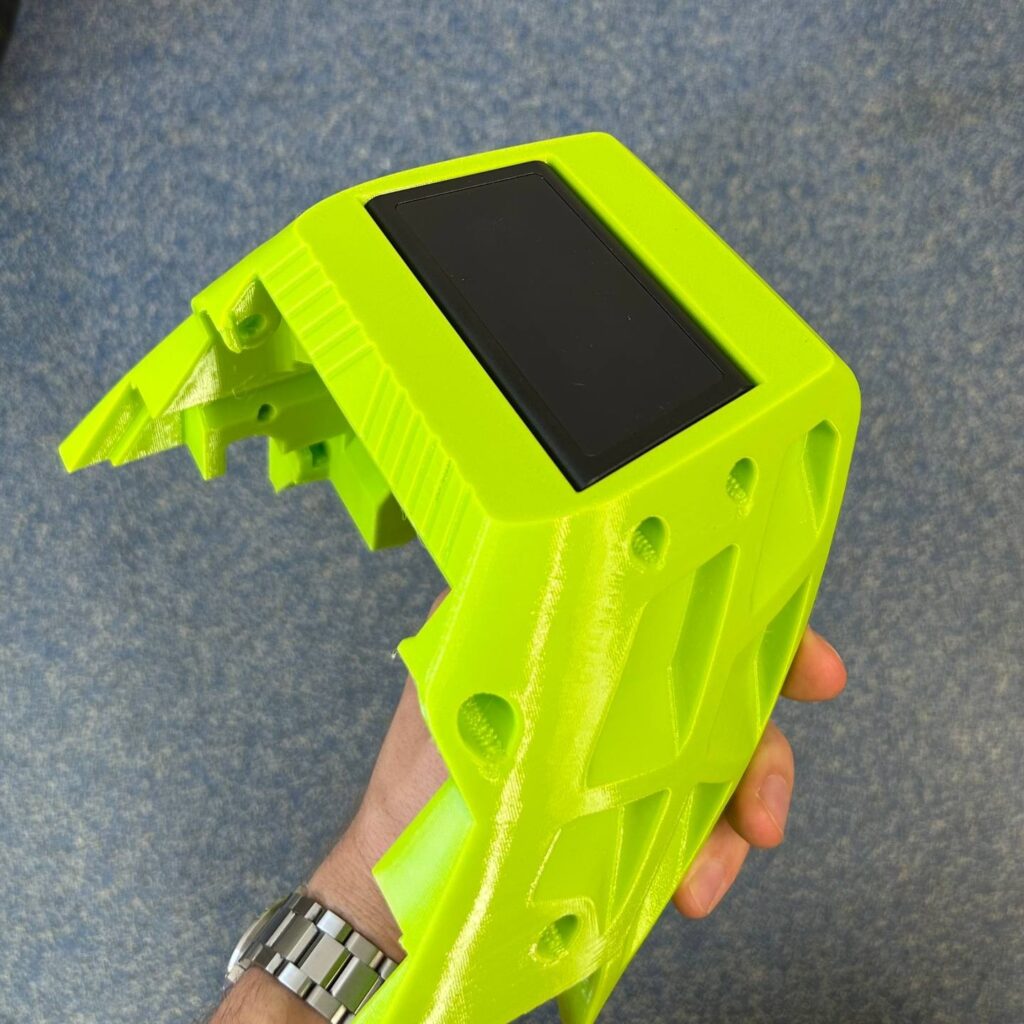

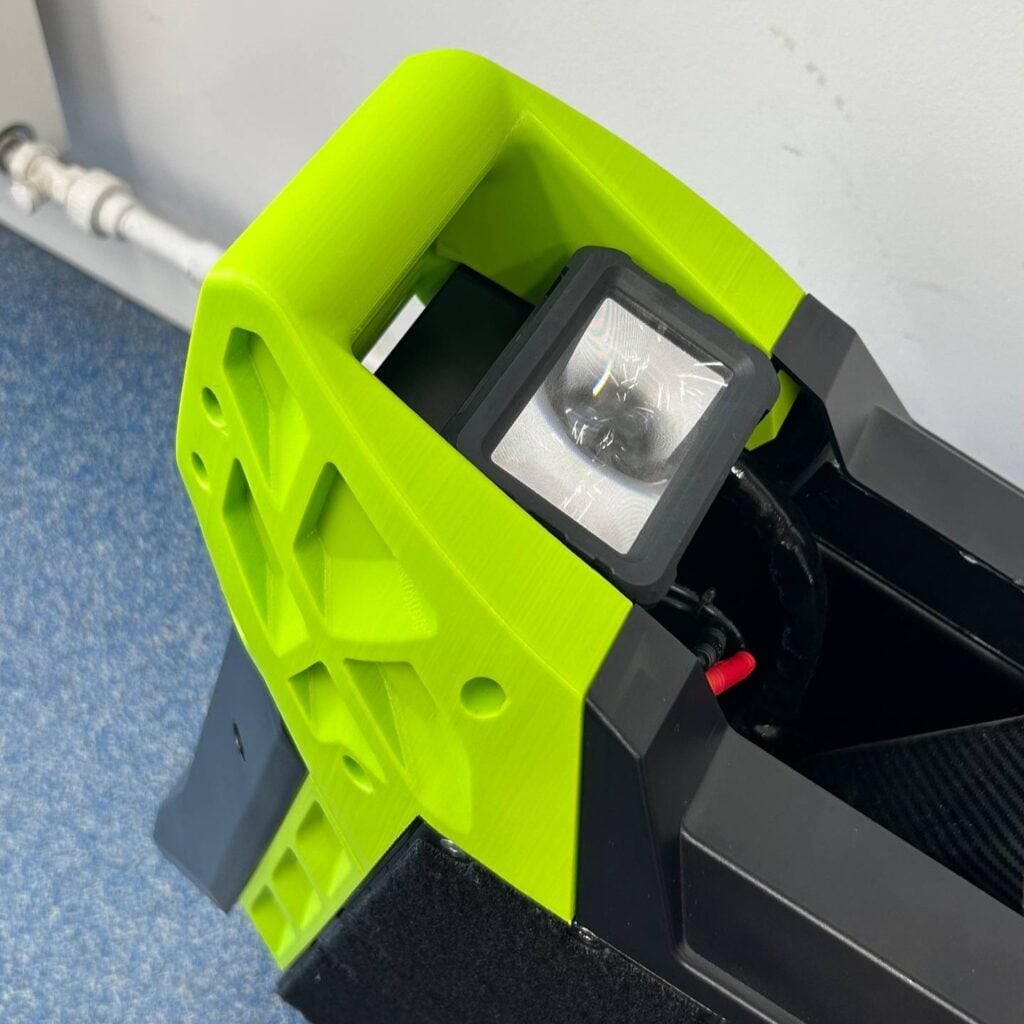

Step 6 - Insert the screen into the bumper, then install the bumper on the EUC starting from one side. Make sure that it is properly aligned and then proceed with the other side.

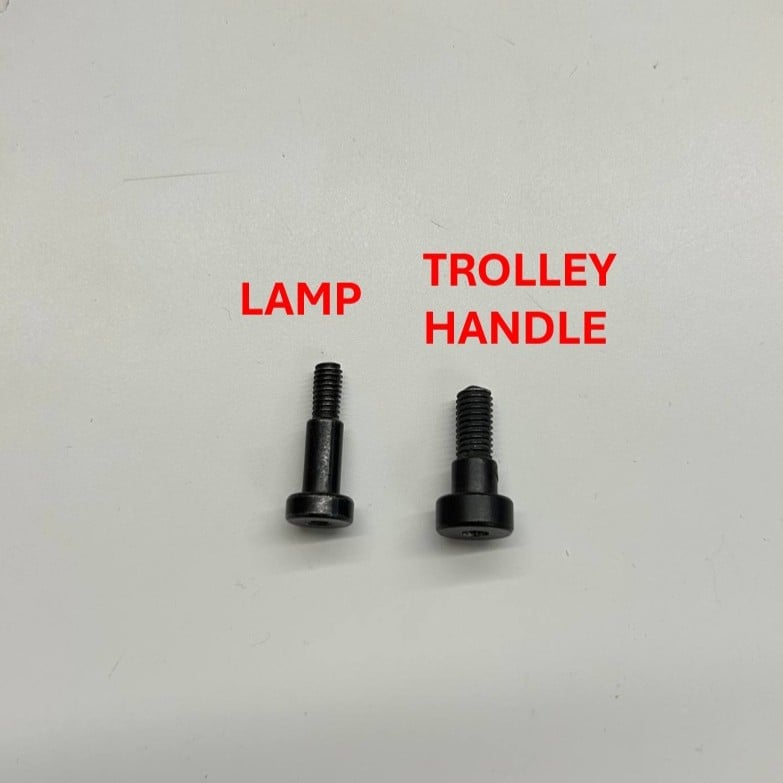

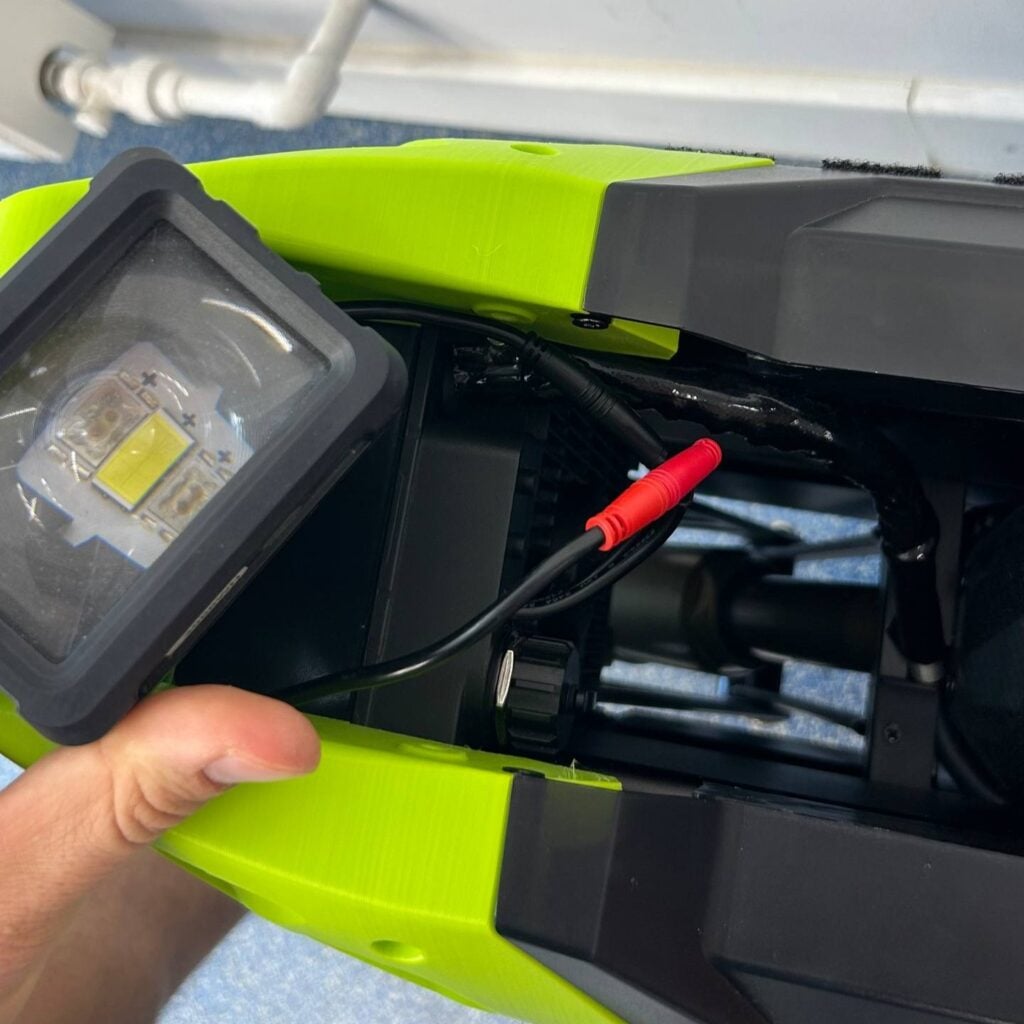

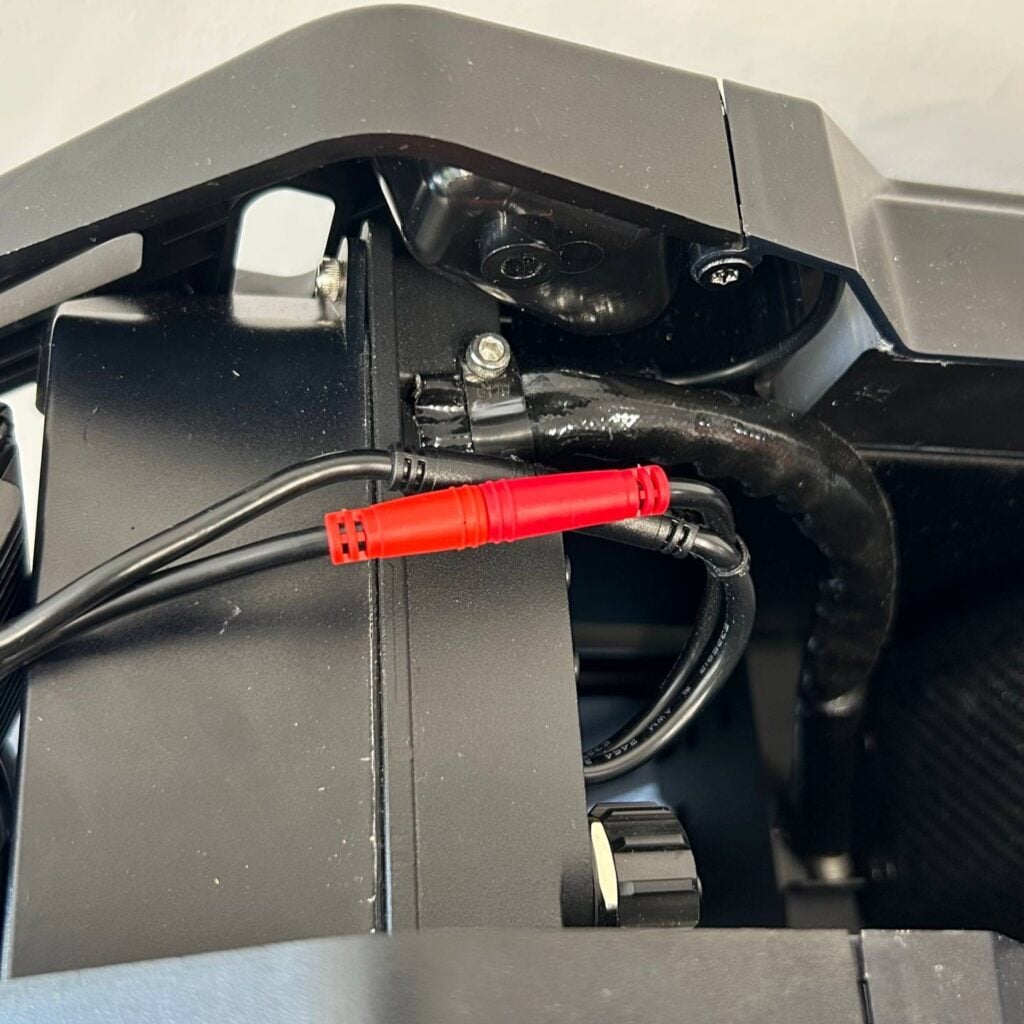

Step 7 - Reinstall the stock screws, plug in the display and lamp. Please make sure to use the right screws for the lamp and trolley handle

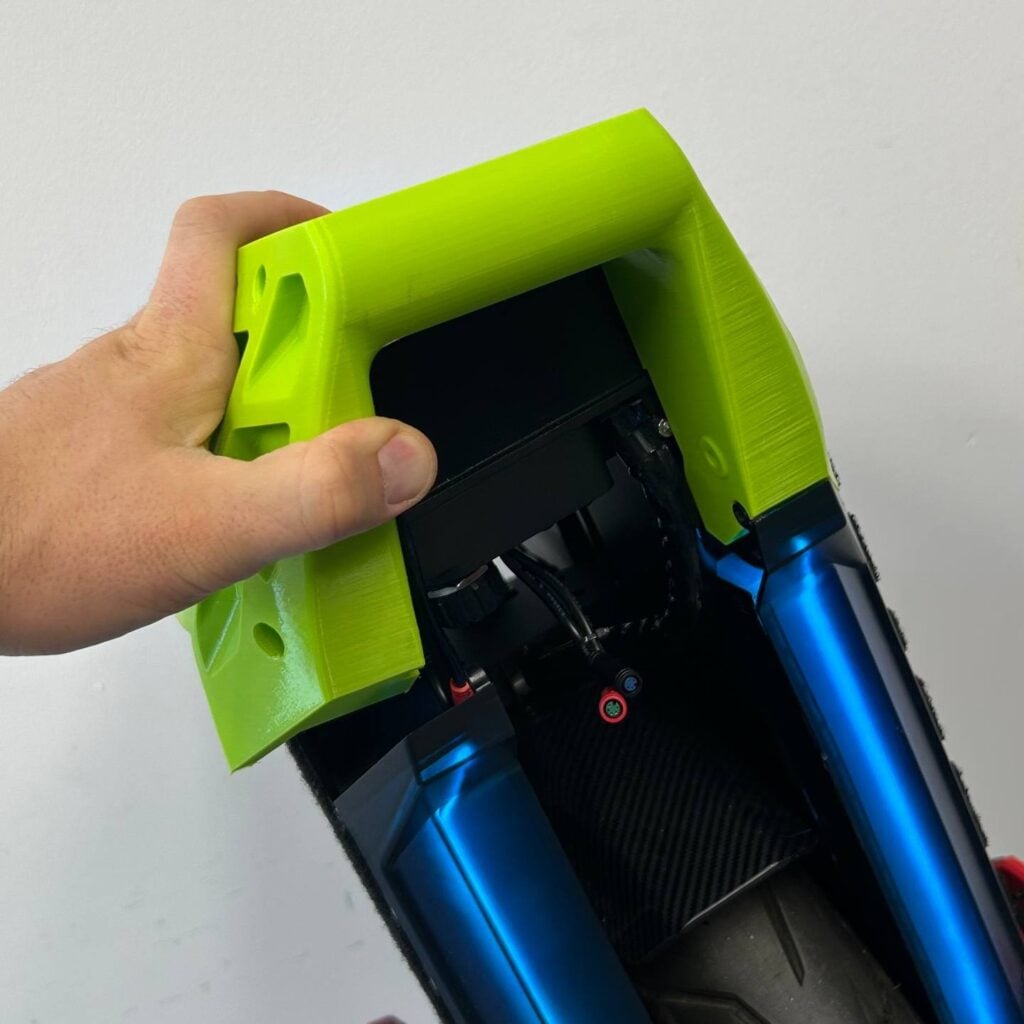

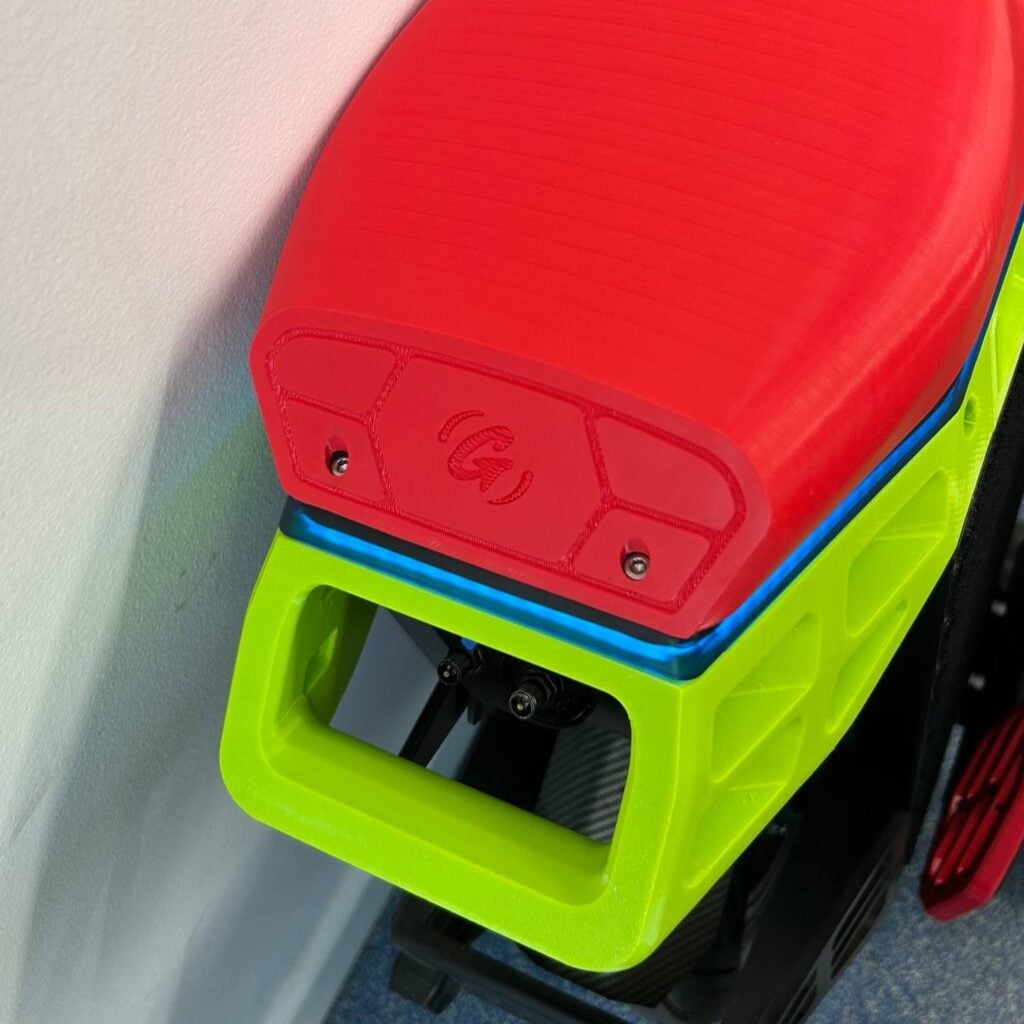

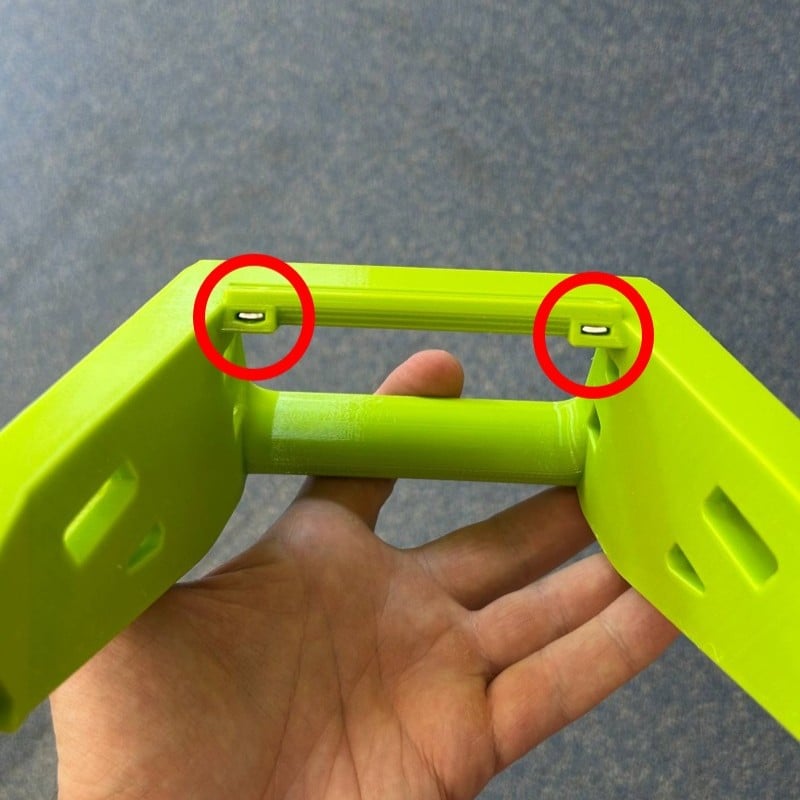

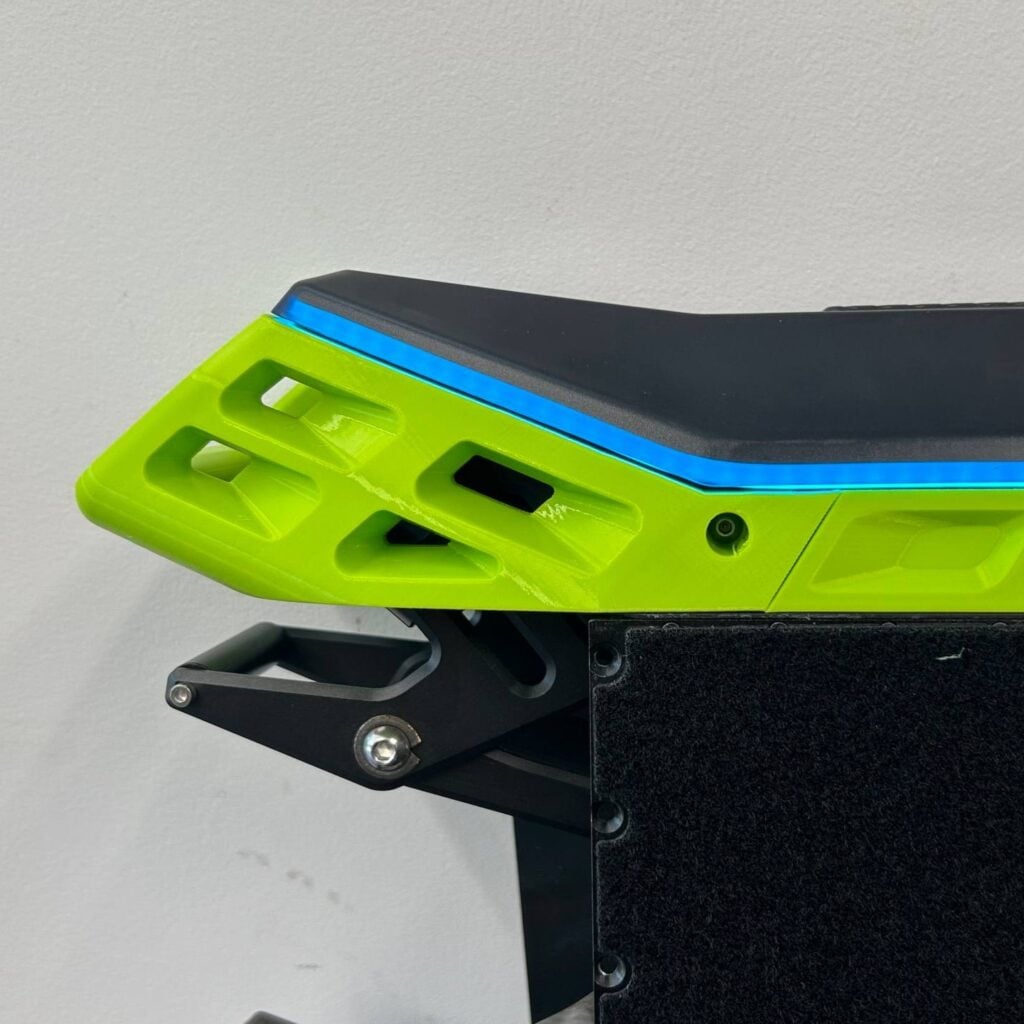

Step 8 - insert the square nuts into the slots in the rear bumper. Then install it using stock screws.

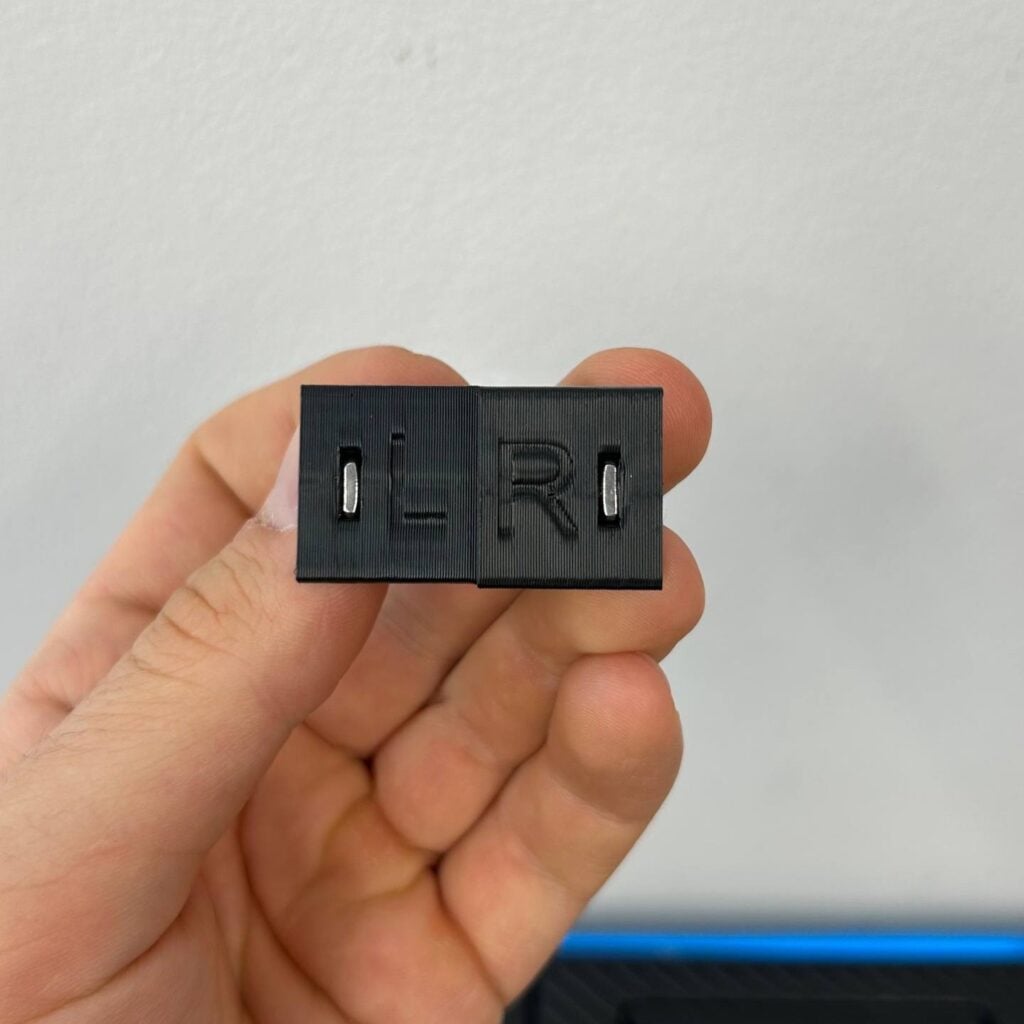

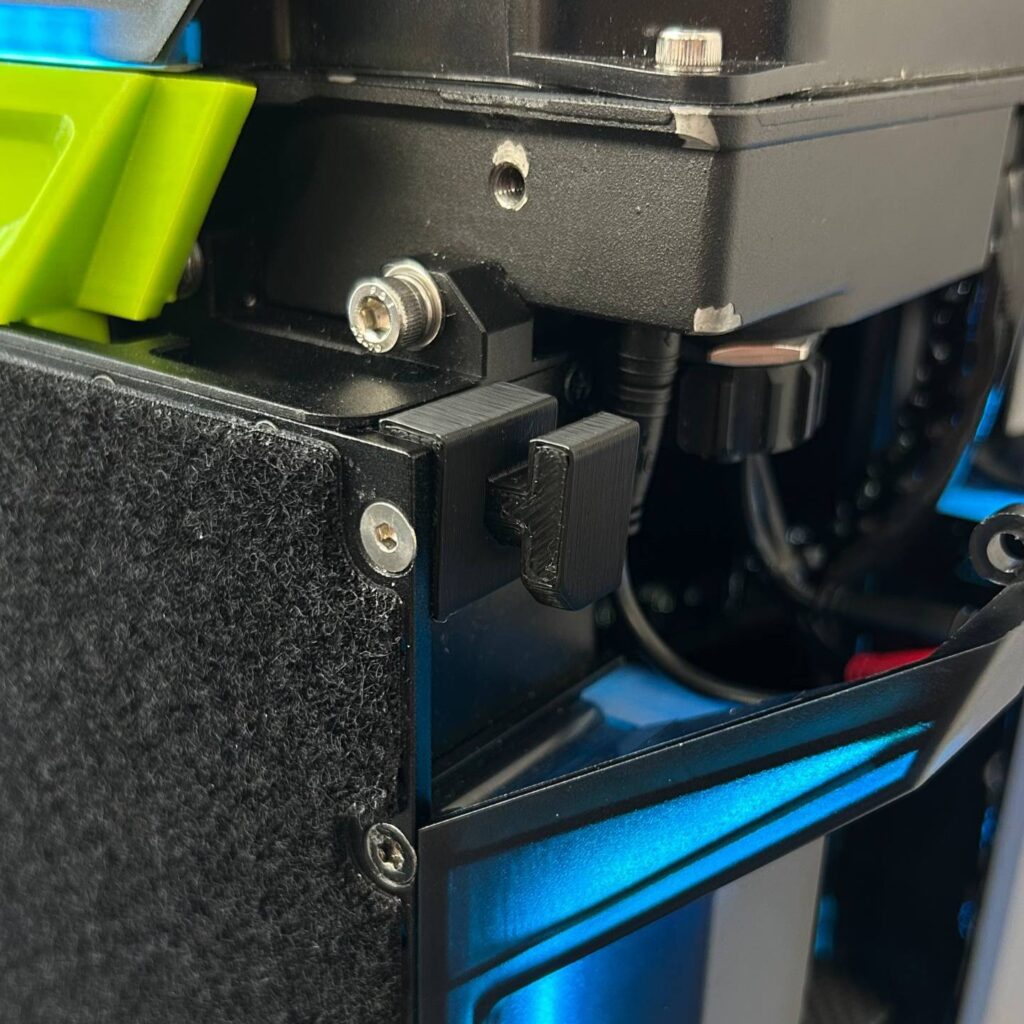

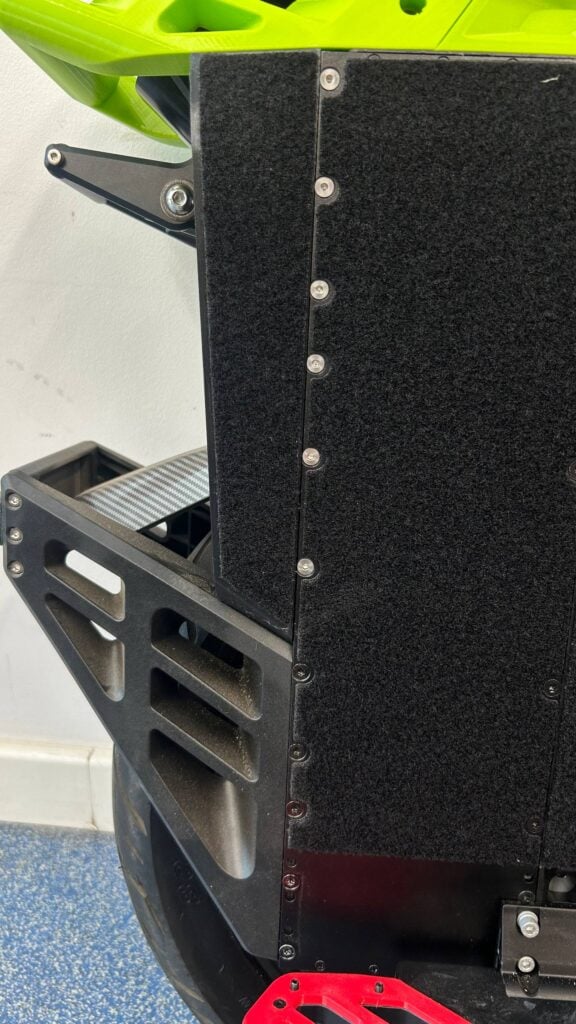

Step 9 - Insert the square nuts into the slots of the velcro extensions. Install it on the EUC using provided screws
--------------------------------------------------------------------------------------------------------
2. Bottom Armor

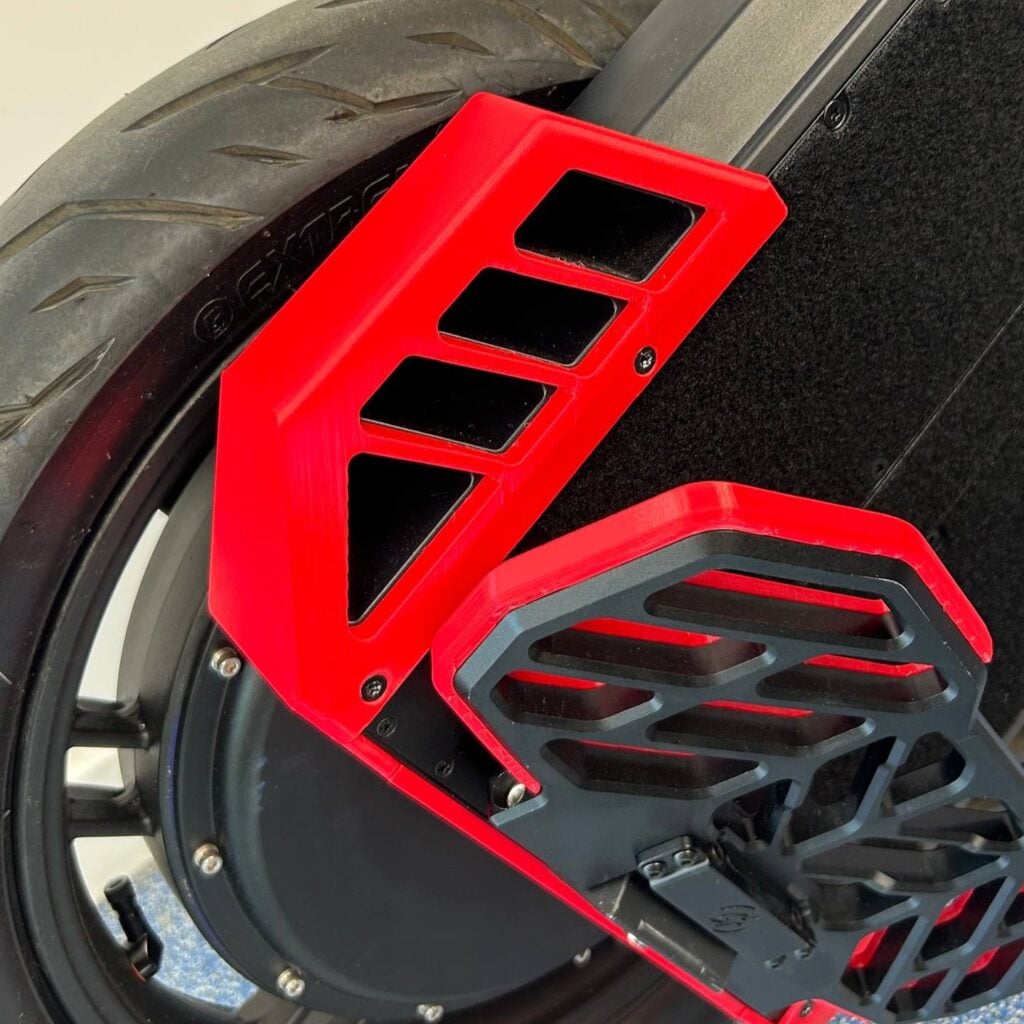

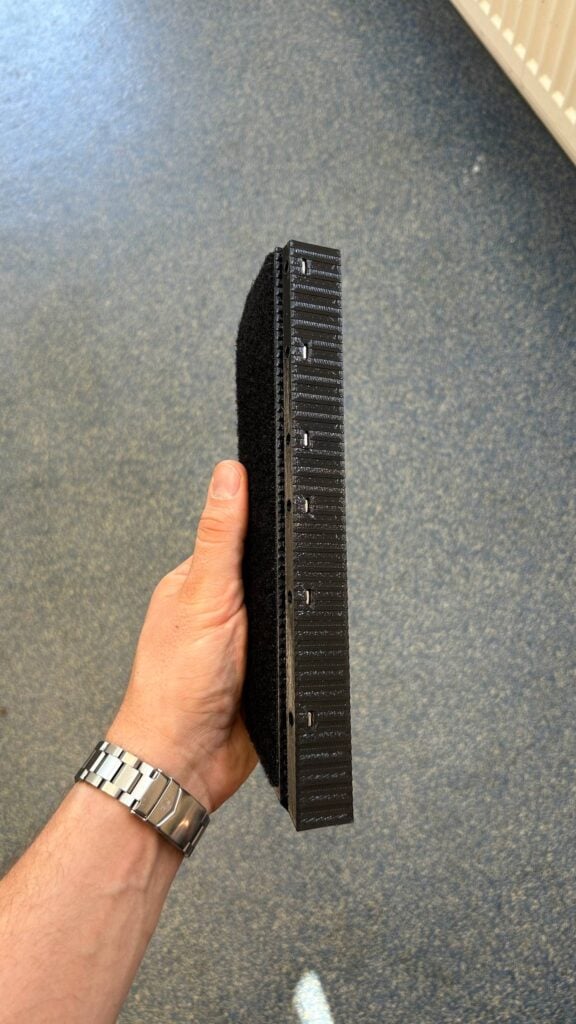

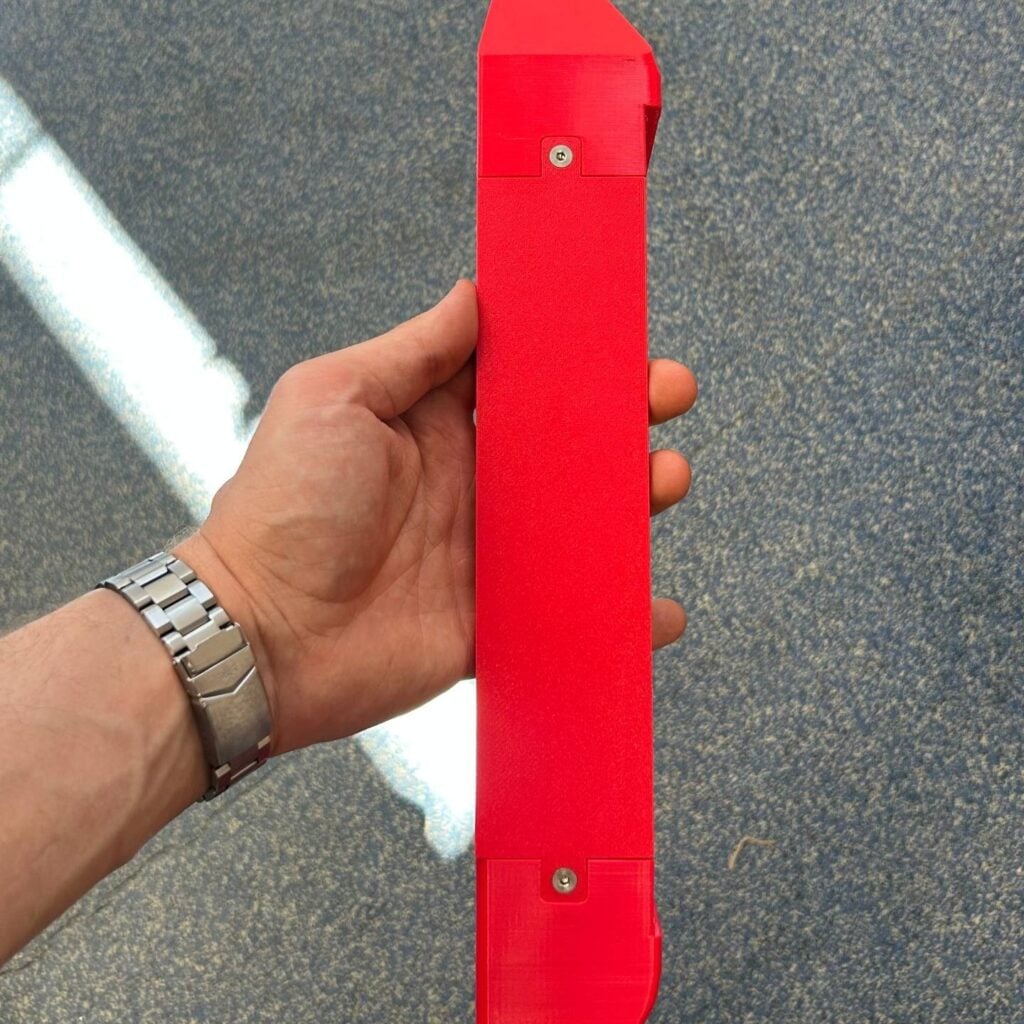

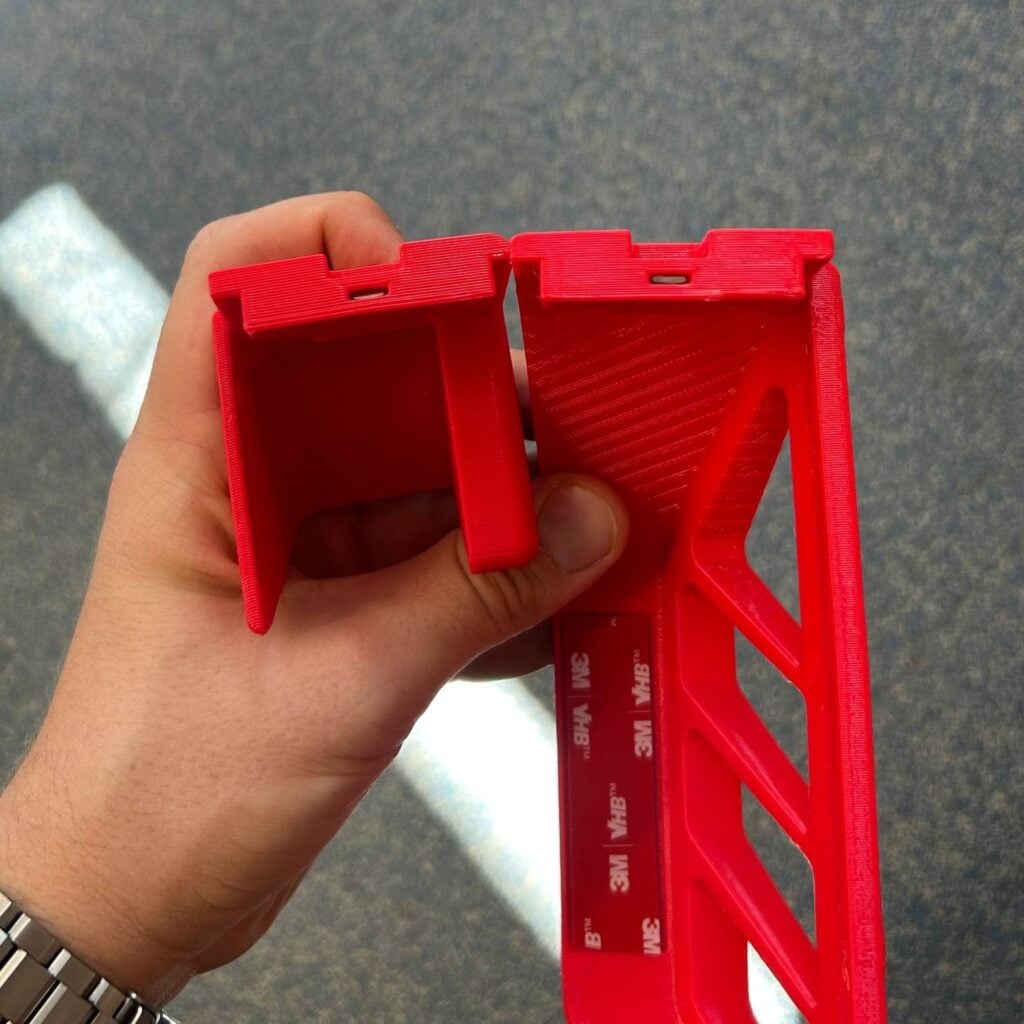

Step 1 - Inserts the square nuts into the slots of the front and rear parts. Then connect them with the center covers using provided screws.

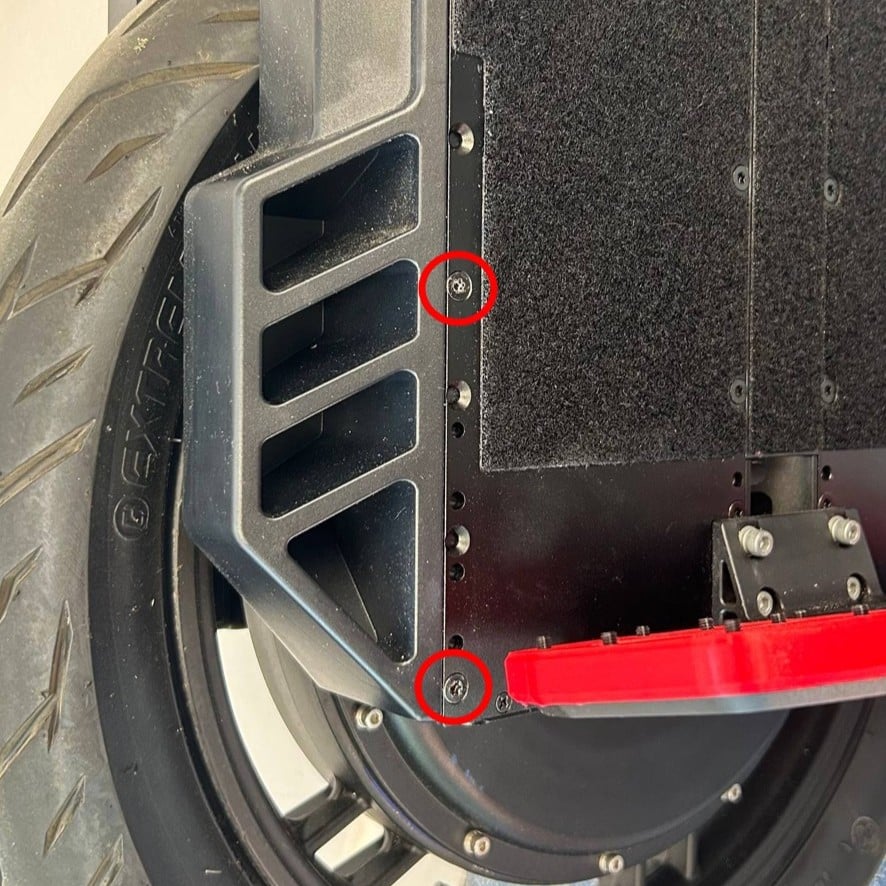

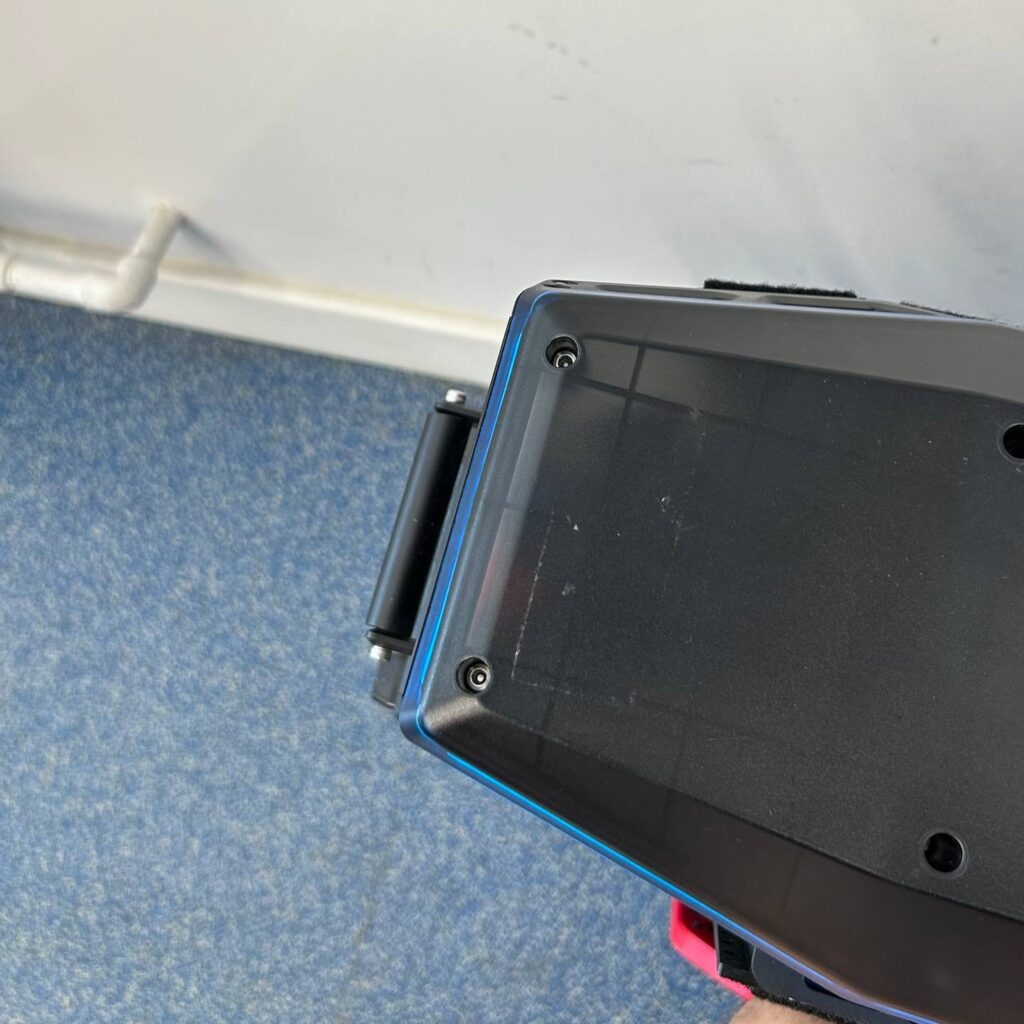

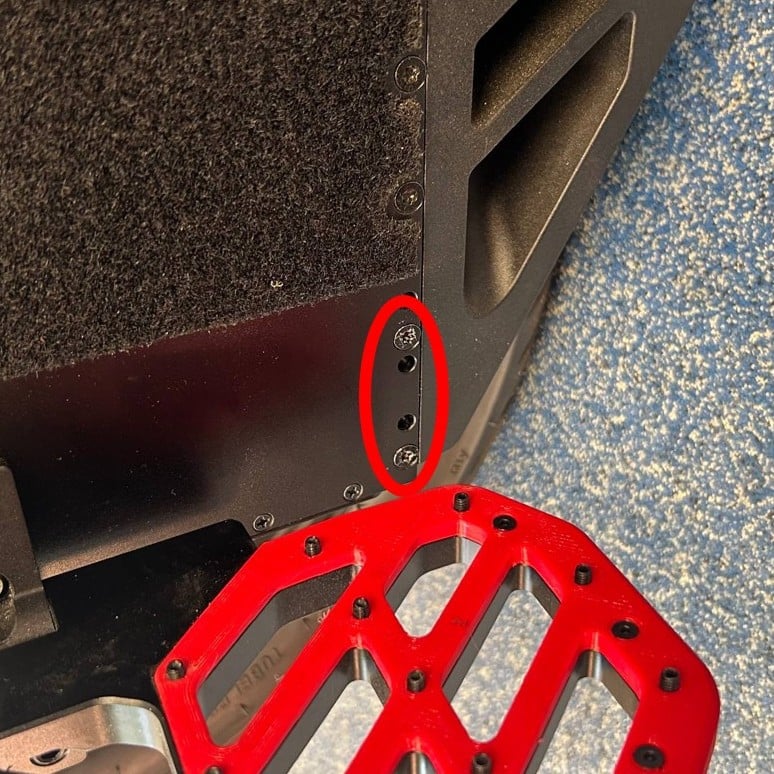

Step 2 - Remove 2 screws from the bottom front and bottom rear parts.
Reuse them in the next steps.

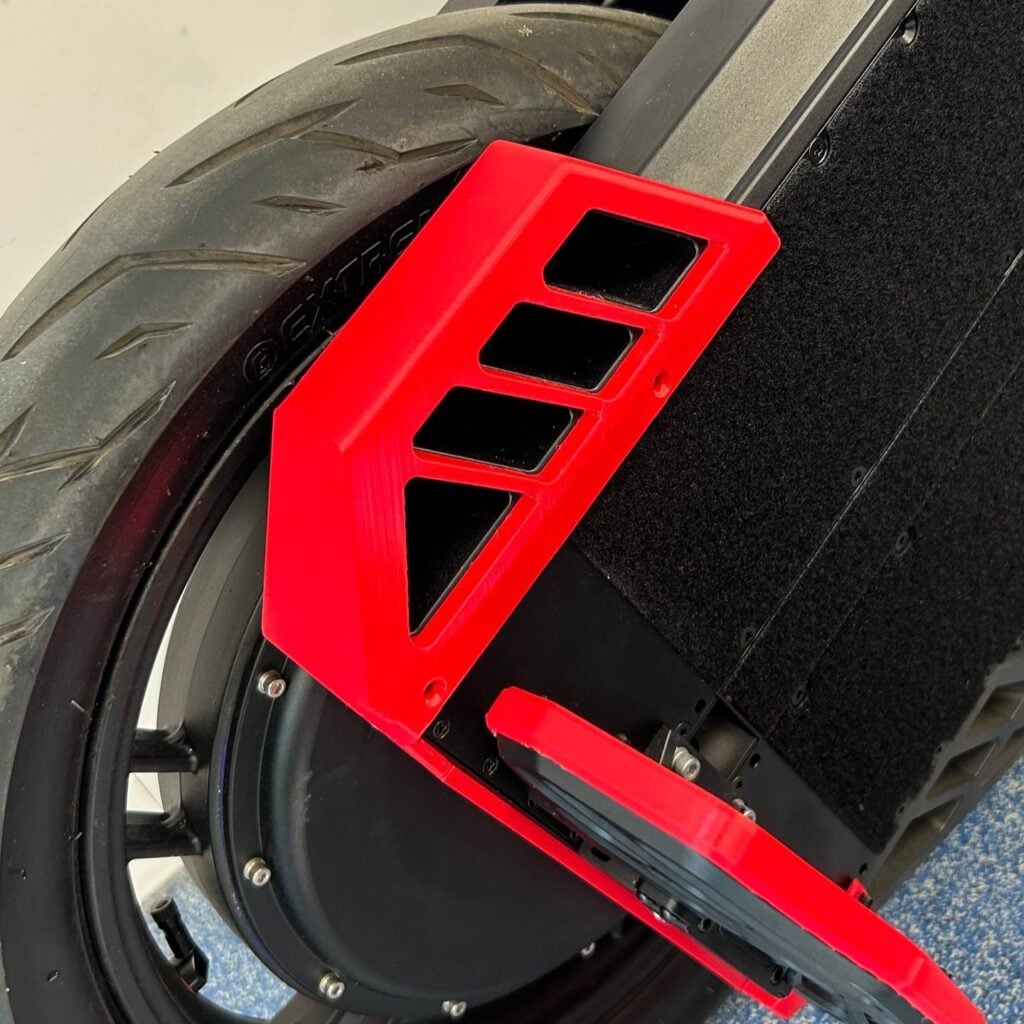

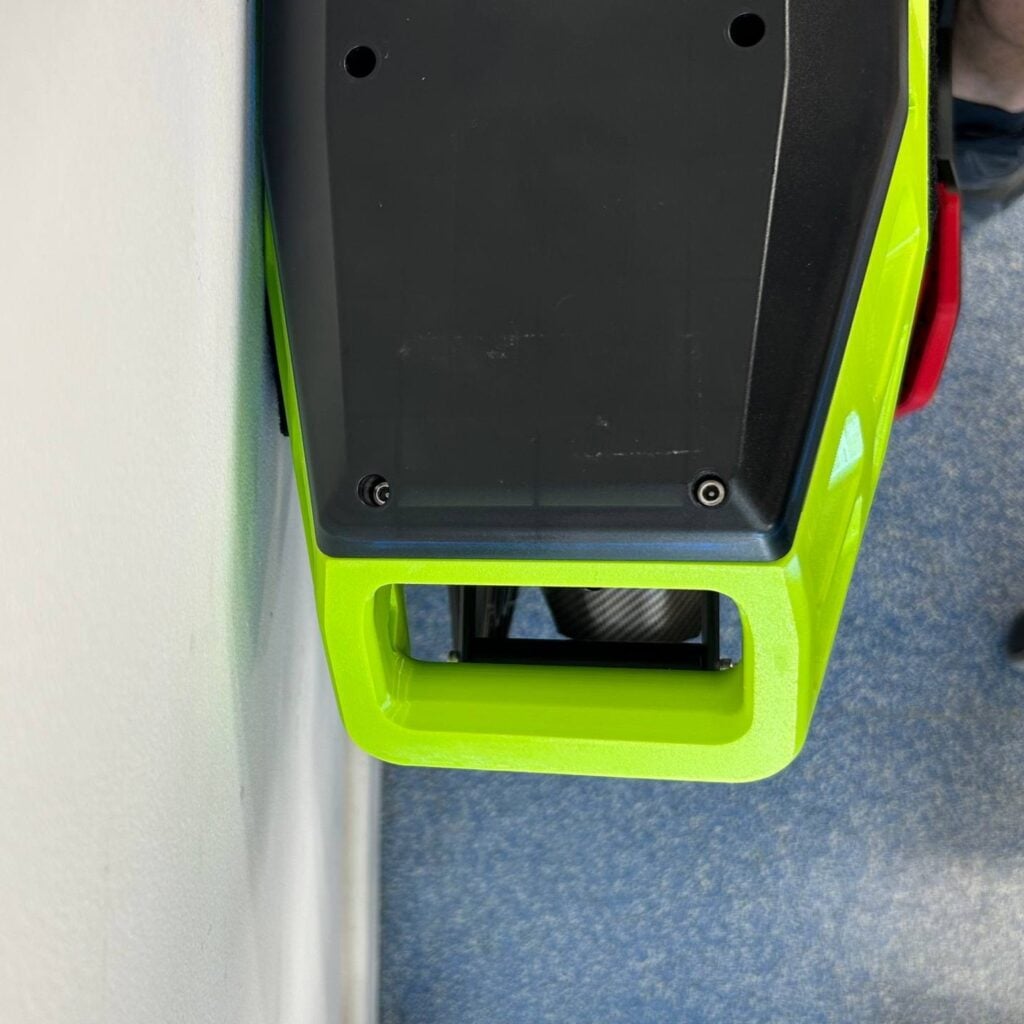

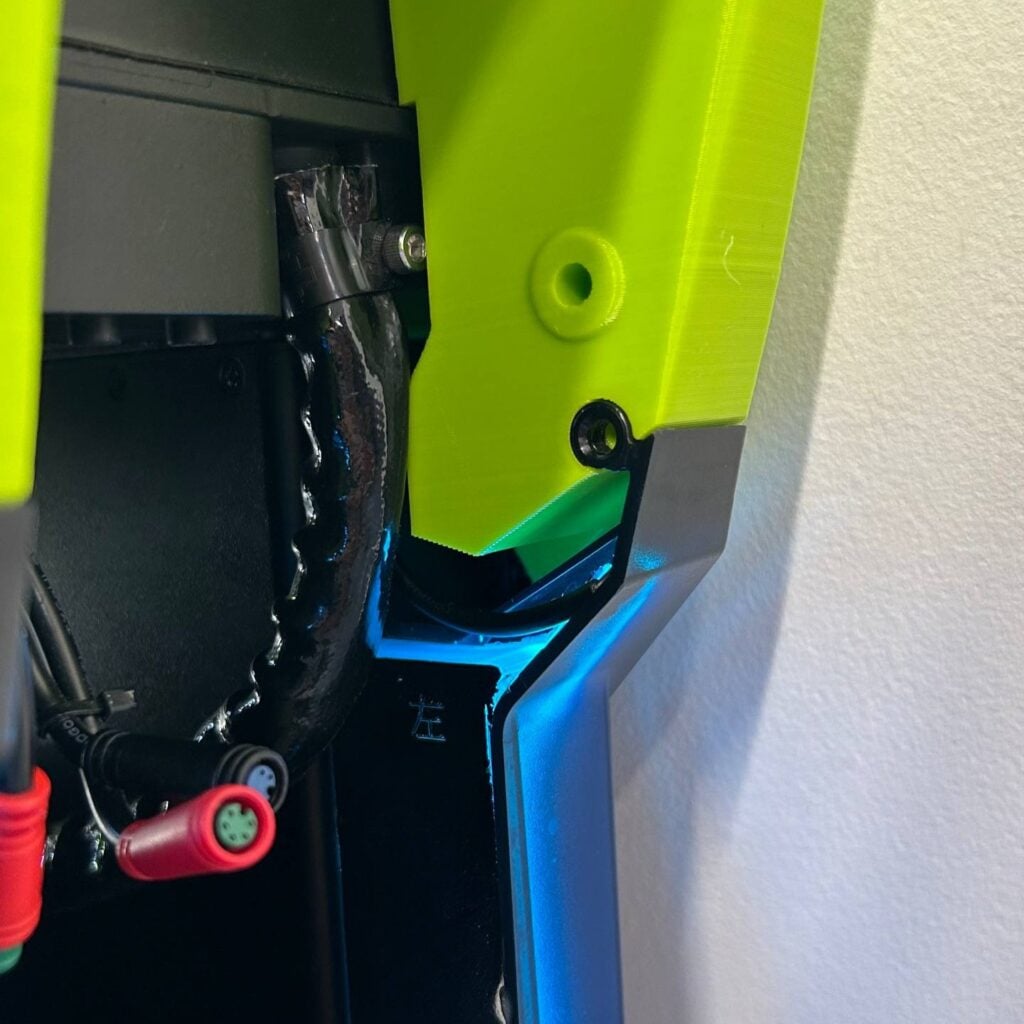

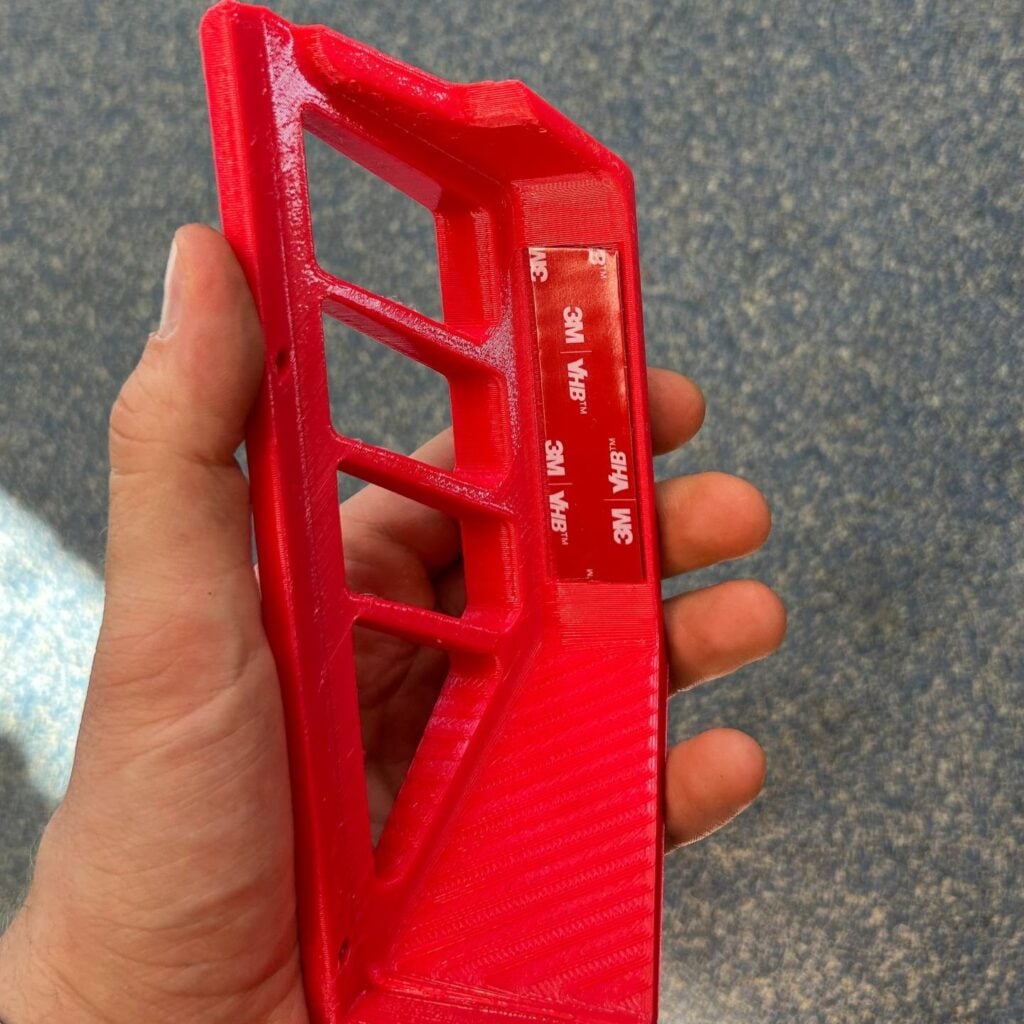

Step 3 - Peel off the protective layer from the inside of the front part. Start the installation with the front part alignment, then go throught the center to the back.

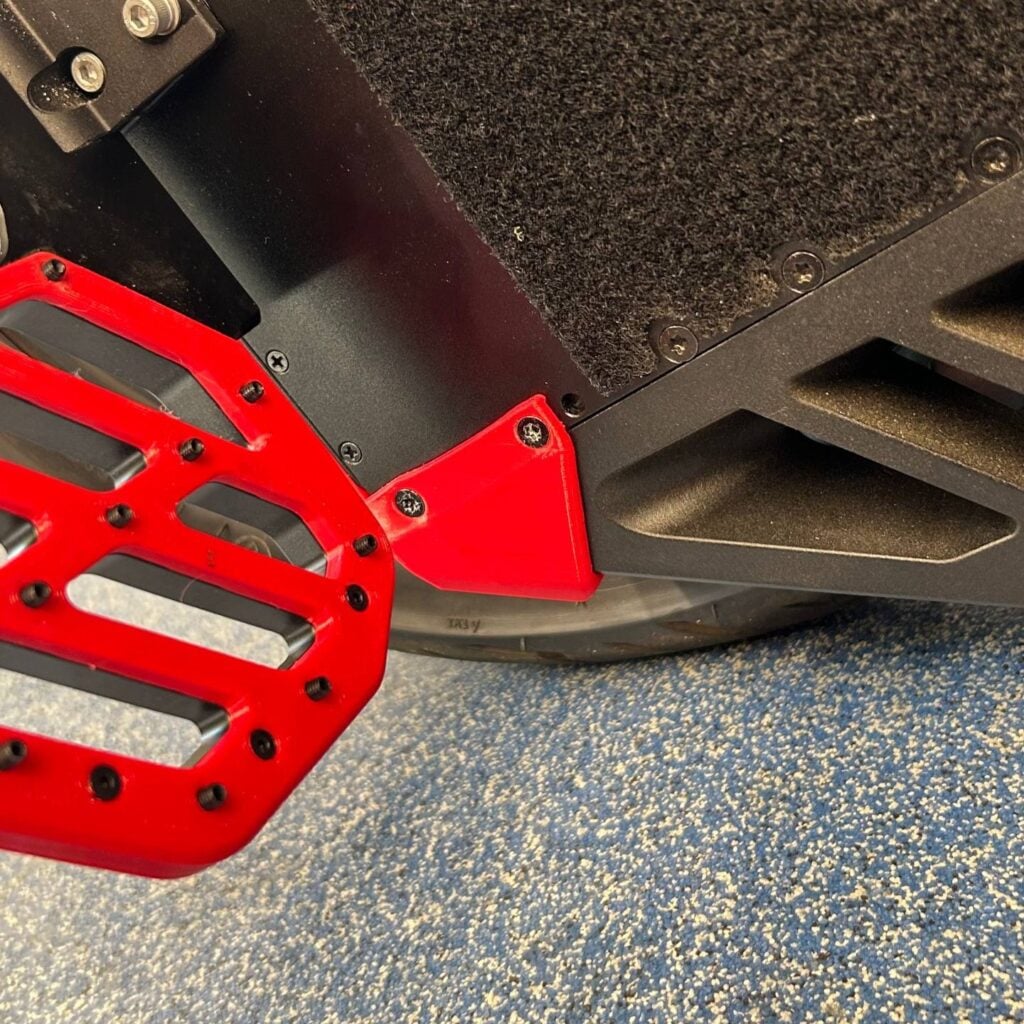

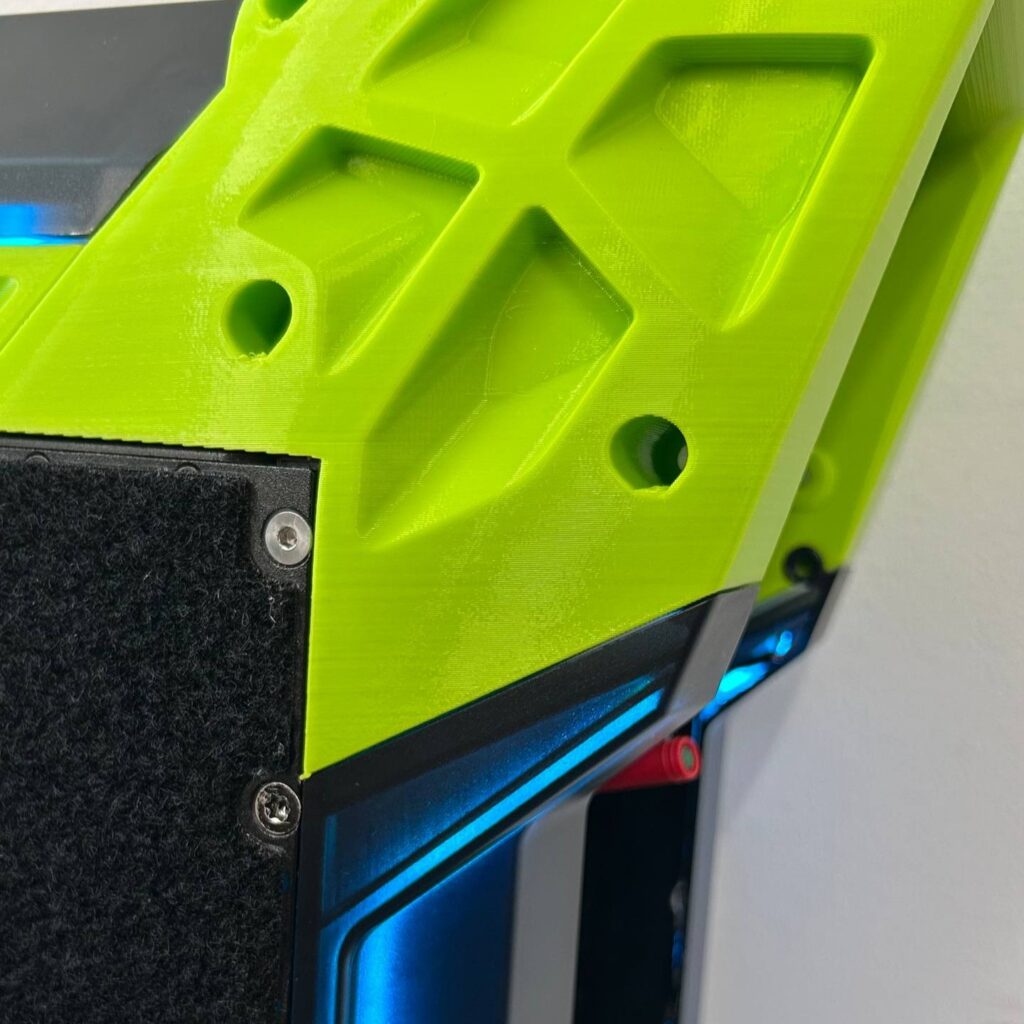

Step 4 - Reinstall the stock screws to keep the bumpers in place.
--------------------------------------------------------------------------------------------------------
3. Seat

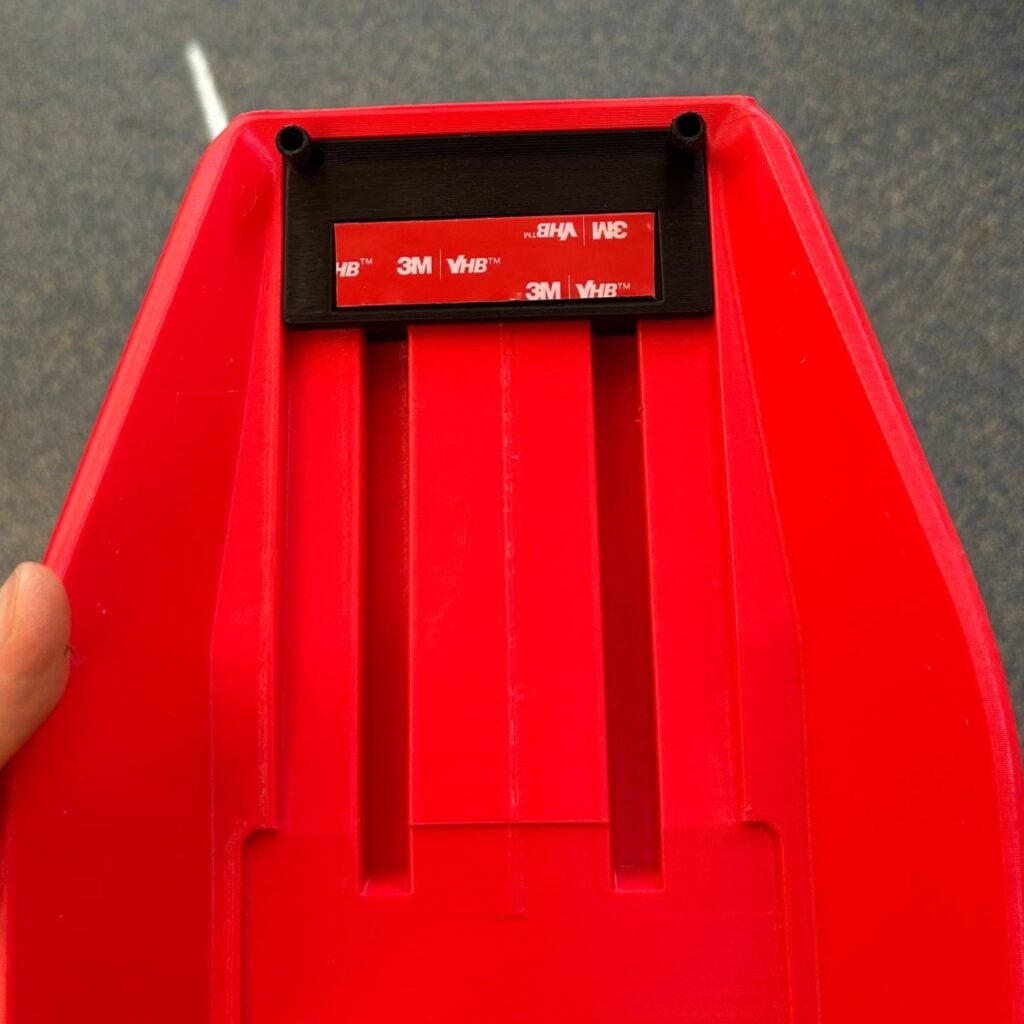

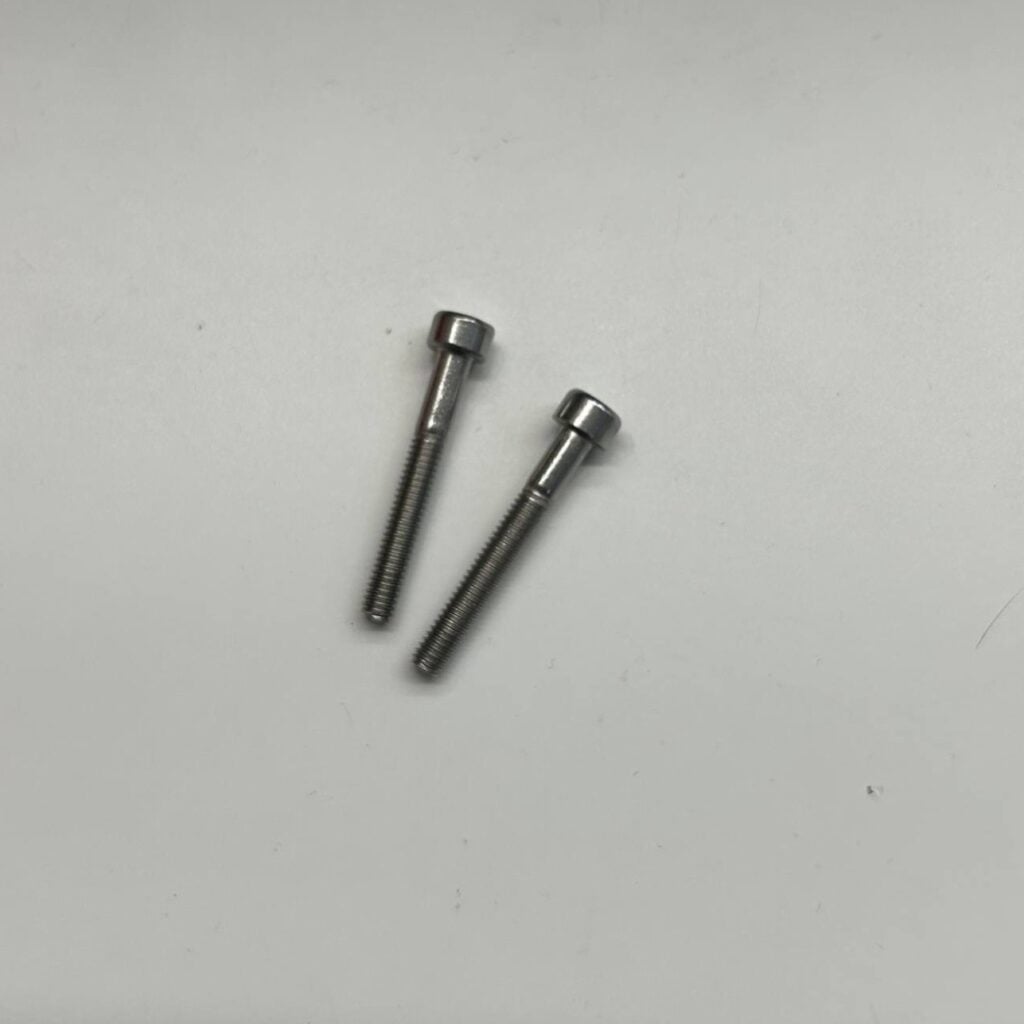

Step 1 - Insert the slider into the seat. Peel off the protective film from the tape and install the seat in the EUC using provided M4x30 screws. Slide the seat to the back to expose the center part of the shell.

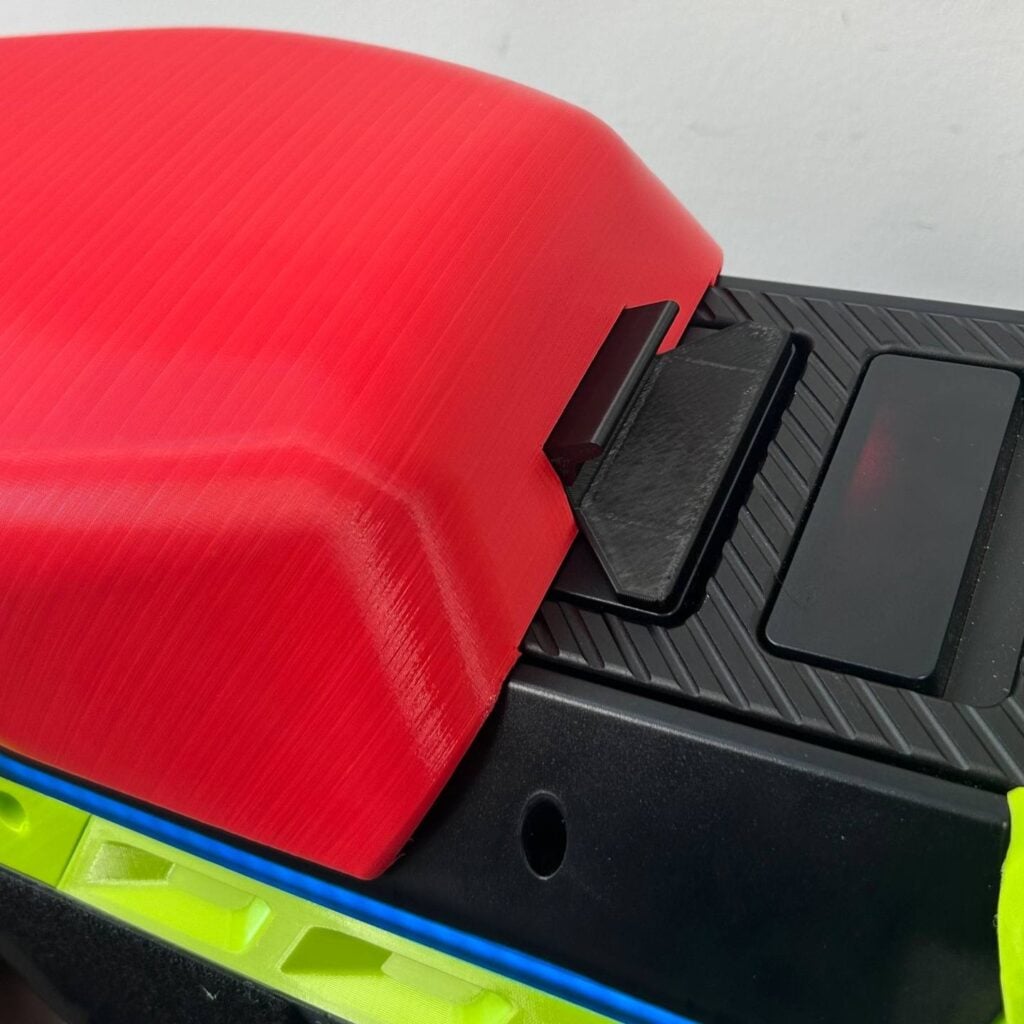

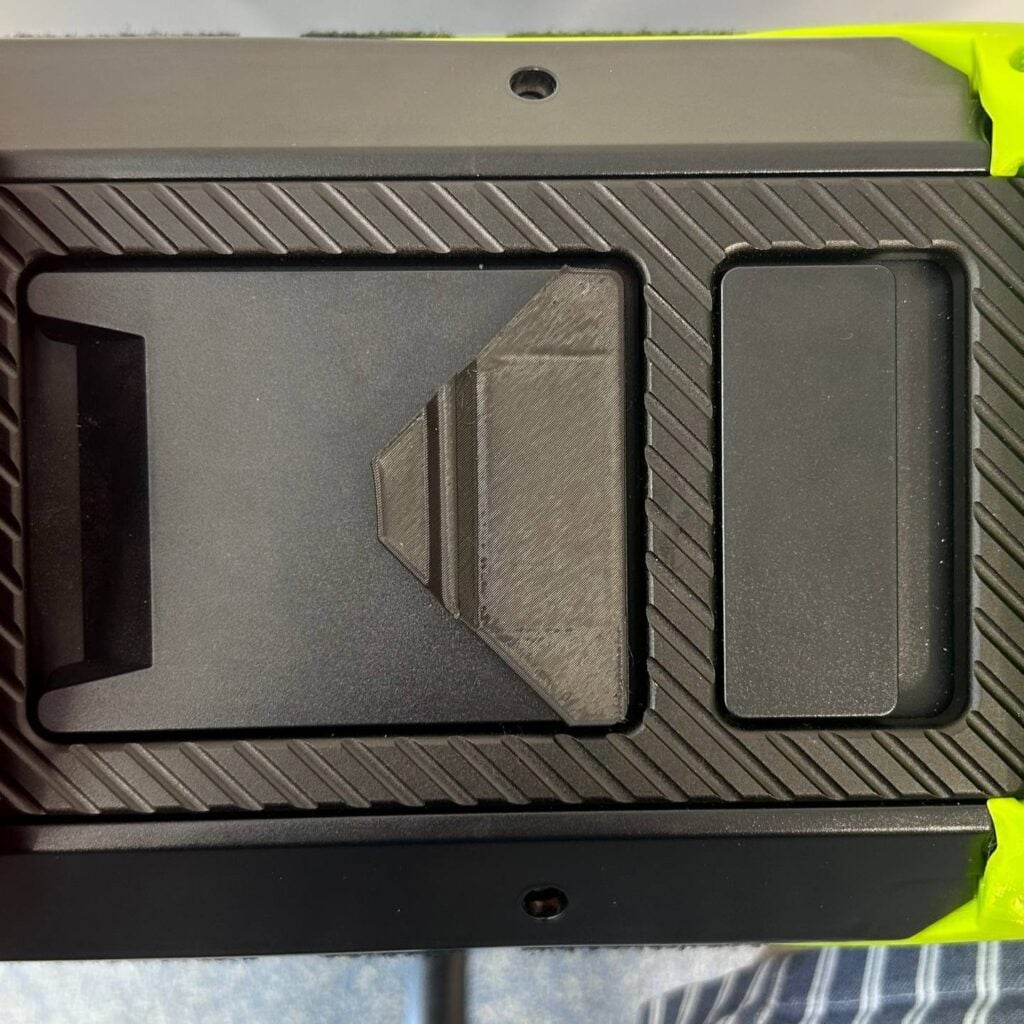

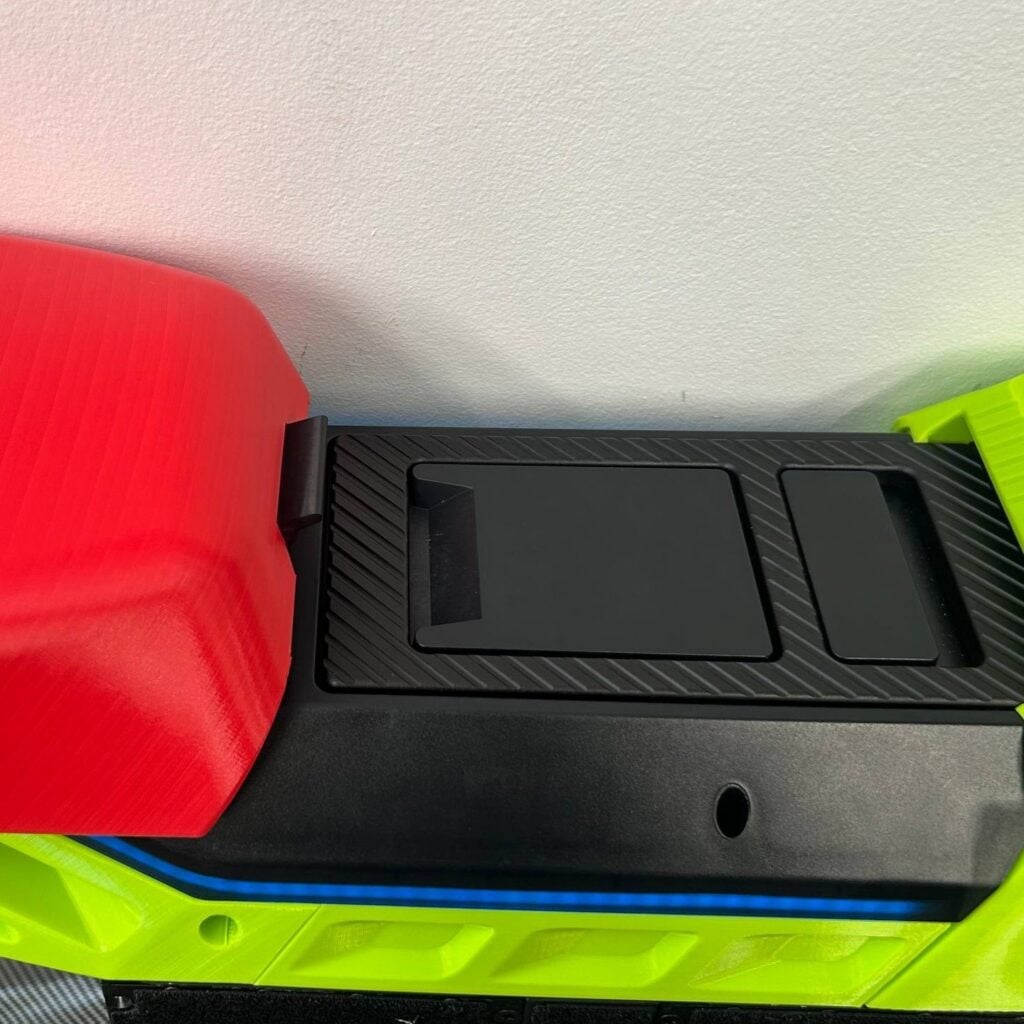

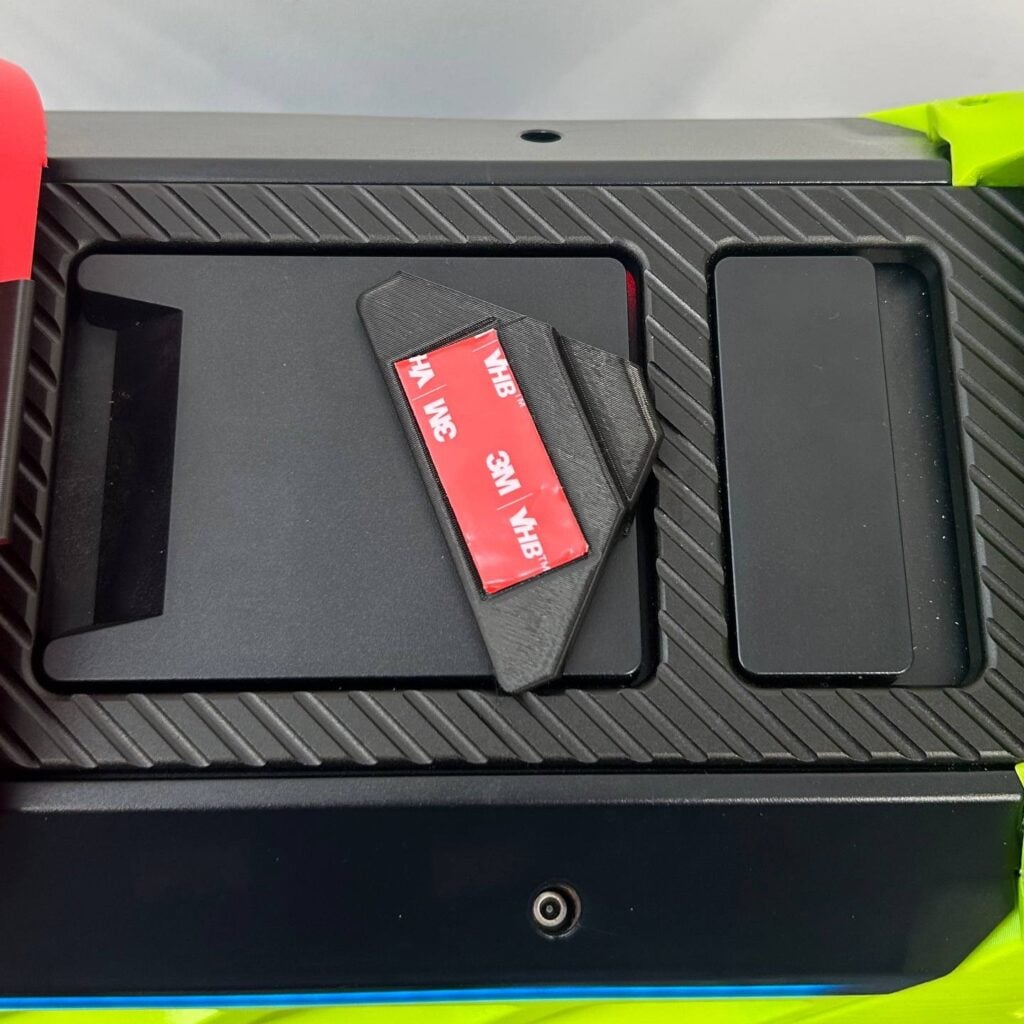

Step 2 - peel off the protective film from the locking part. Align it with the edges like in the photo and press down for 30s to achieve proper adhesion. Slide the seat to the front to lock it in position.
