Inmotion V11Y - Fairing Plates - Installation Guide

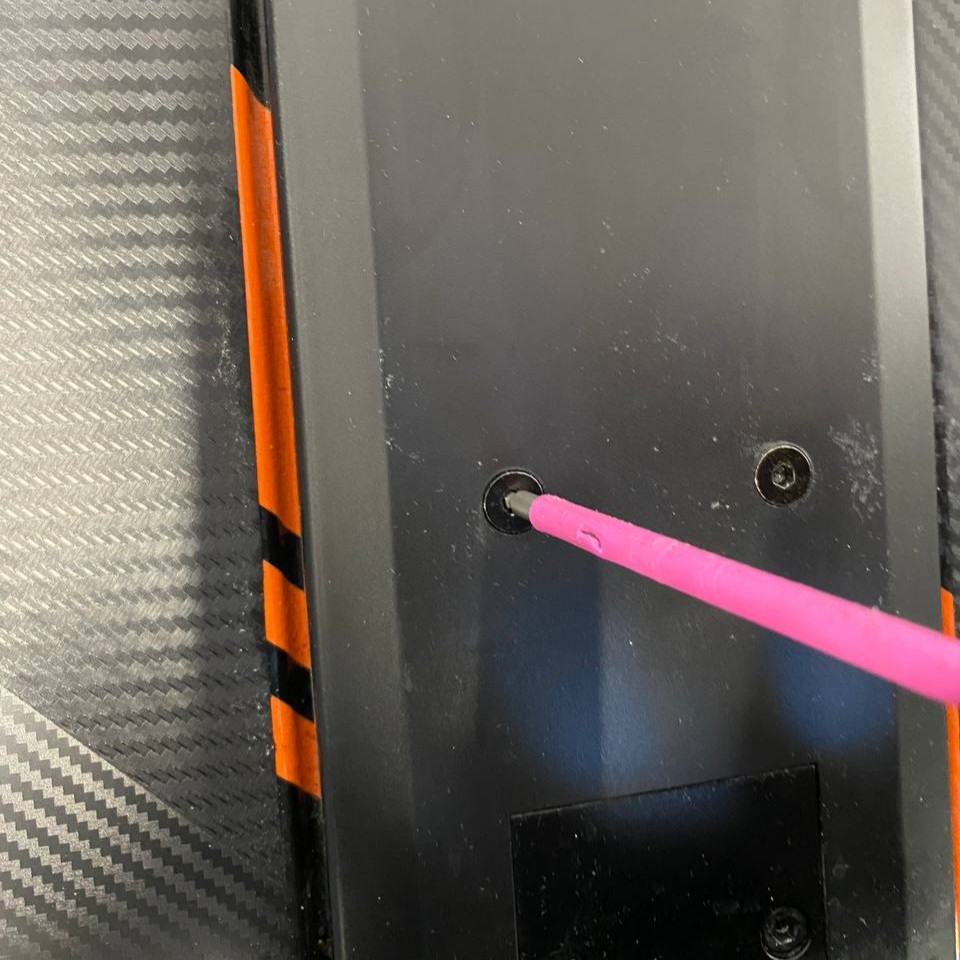

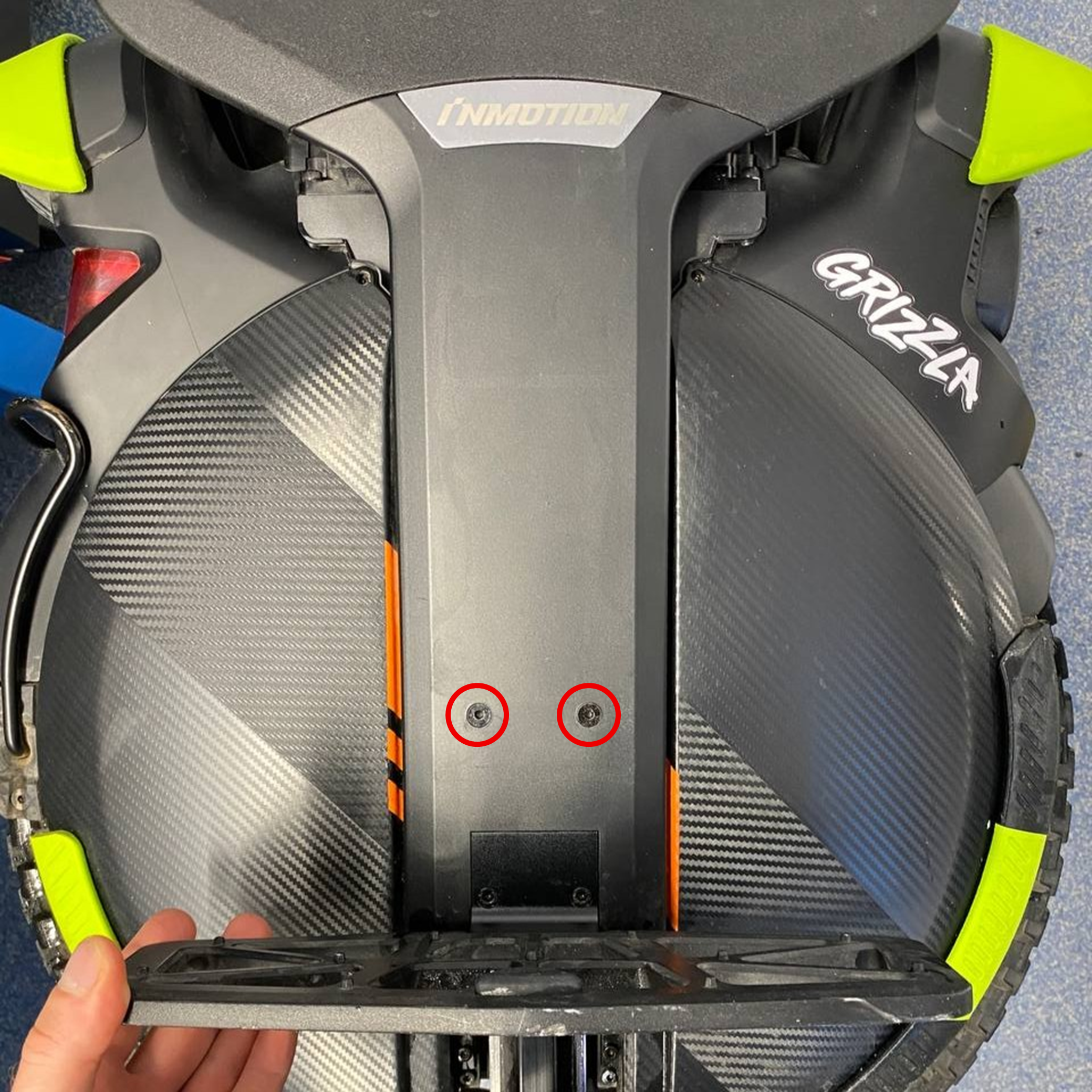

Step 1: Remove the 2 screws just above the pedal hanger

 Step 2: Clean the side surface with isopropyl alcohol

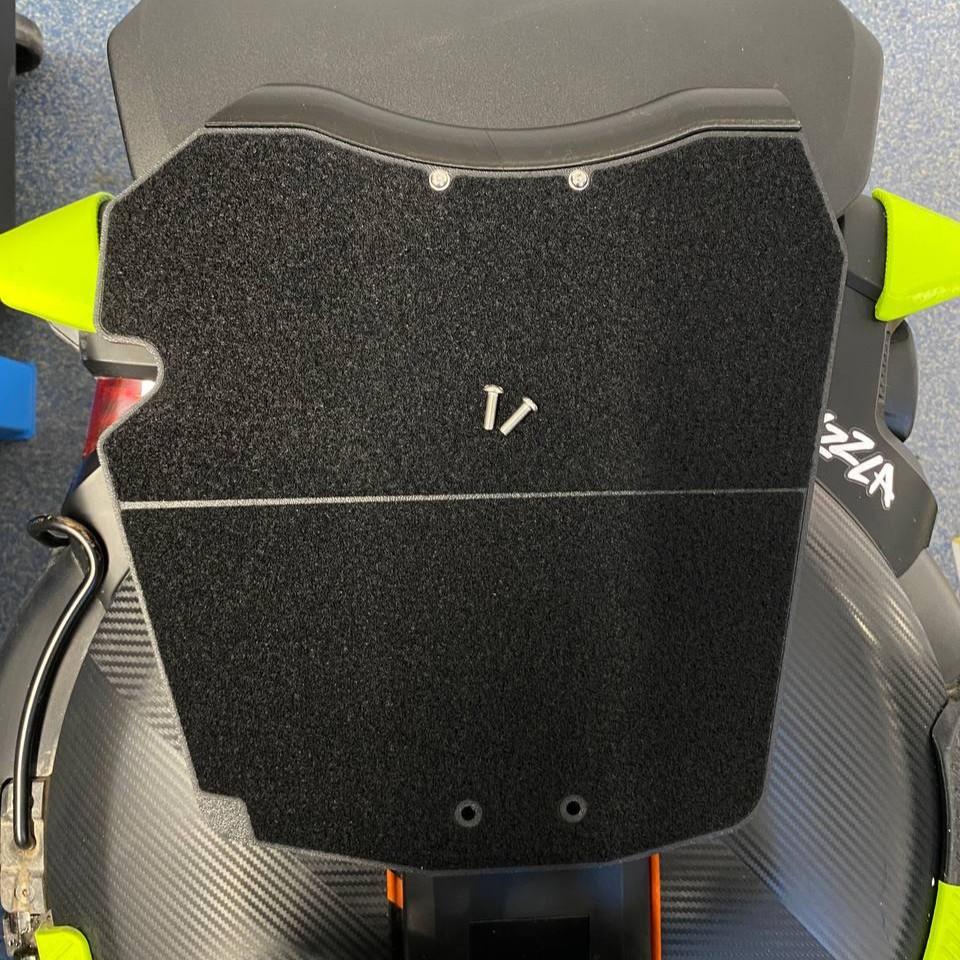

 Step 3: Take one plate for the correct side (R on the picture) and 2 bolts from the installation pack

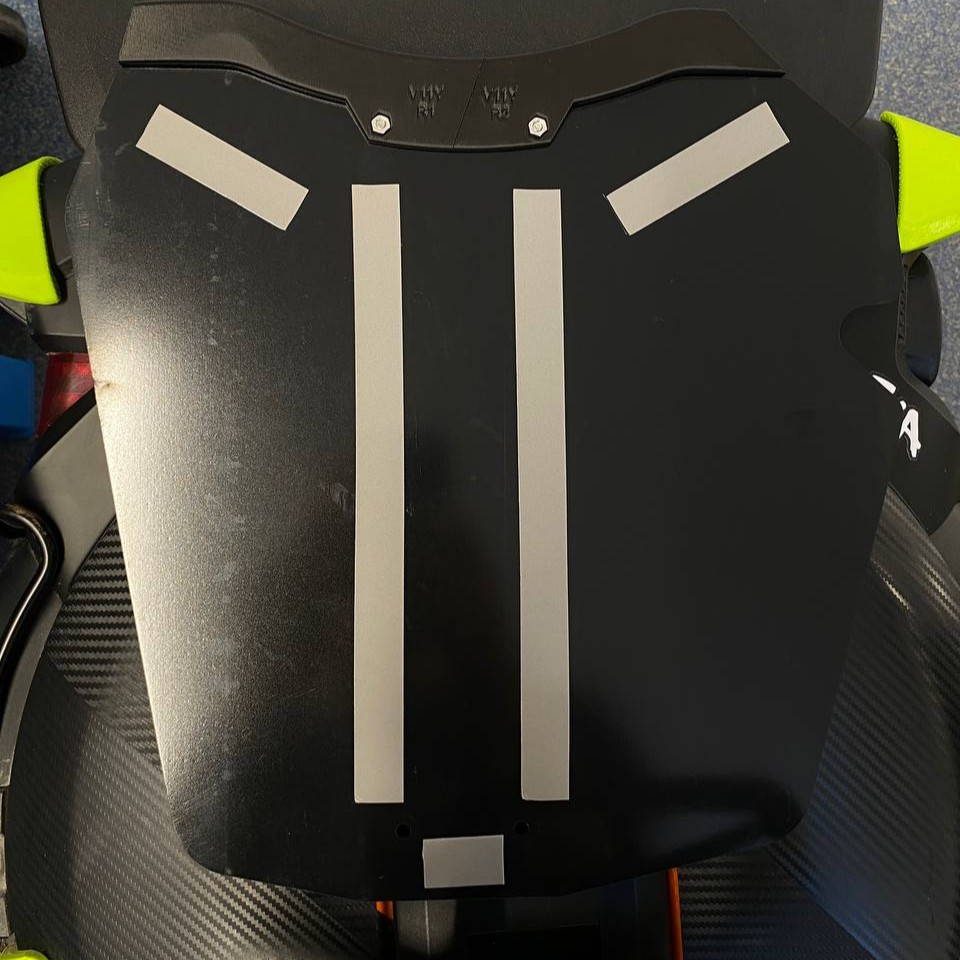

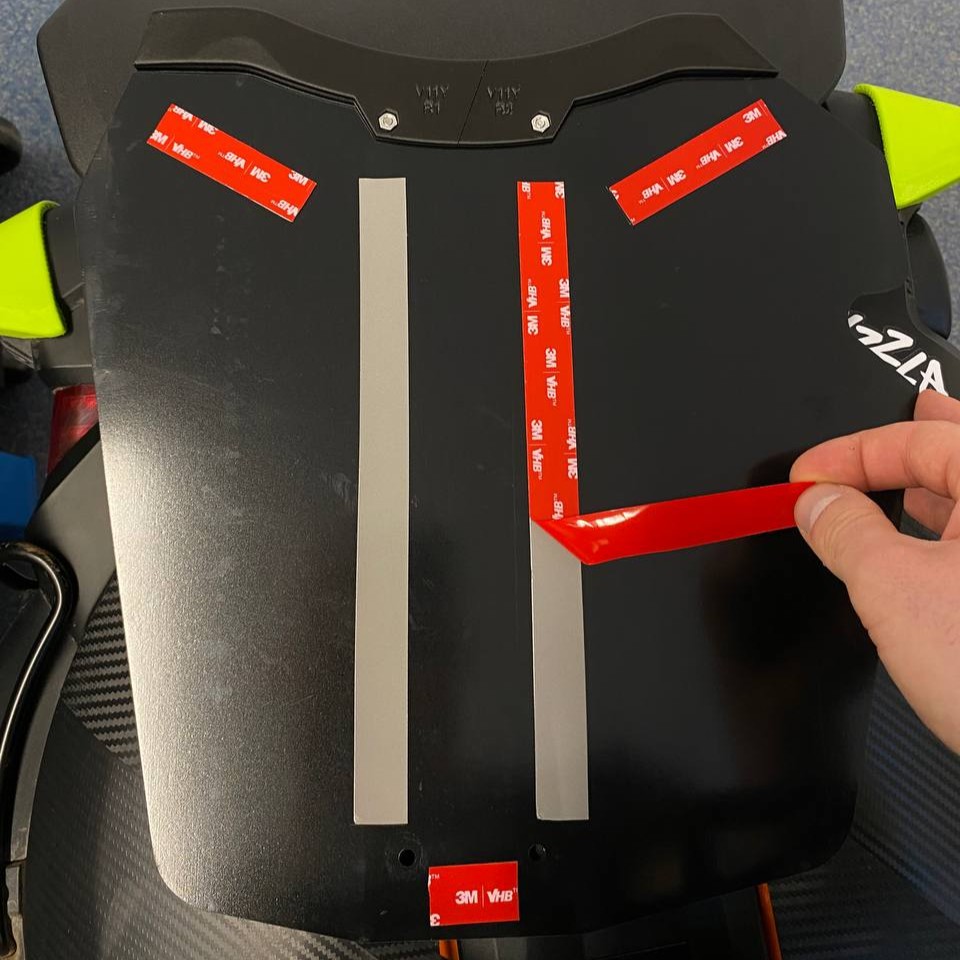

 Step 4: Peel off the red strips from VHB tape:

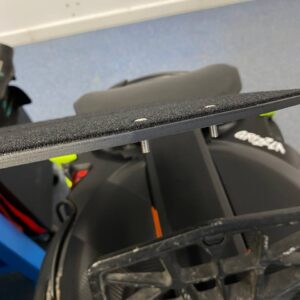

 Step 5:  Reverse the plate and insert the 2 bolts. They will be needed for proper alignment

 Step 6: Align the plate. Make sure the bolts go into the holes freely and bottom edge is parallel to the pedal hanger

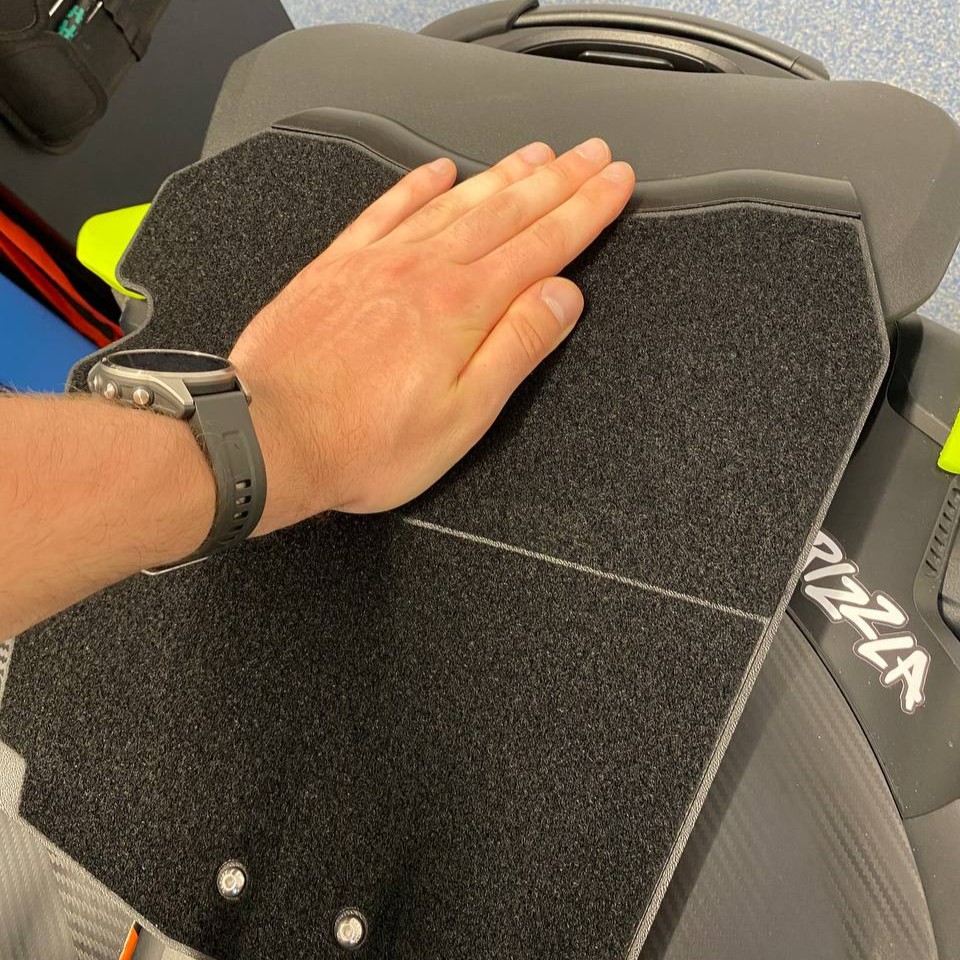

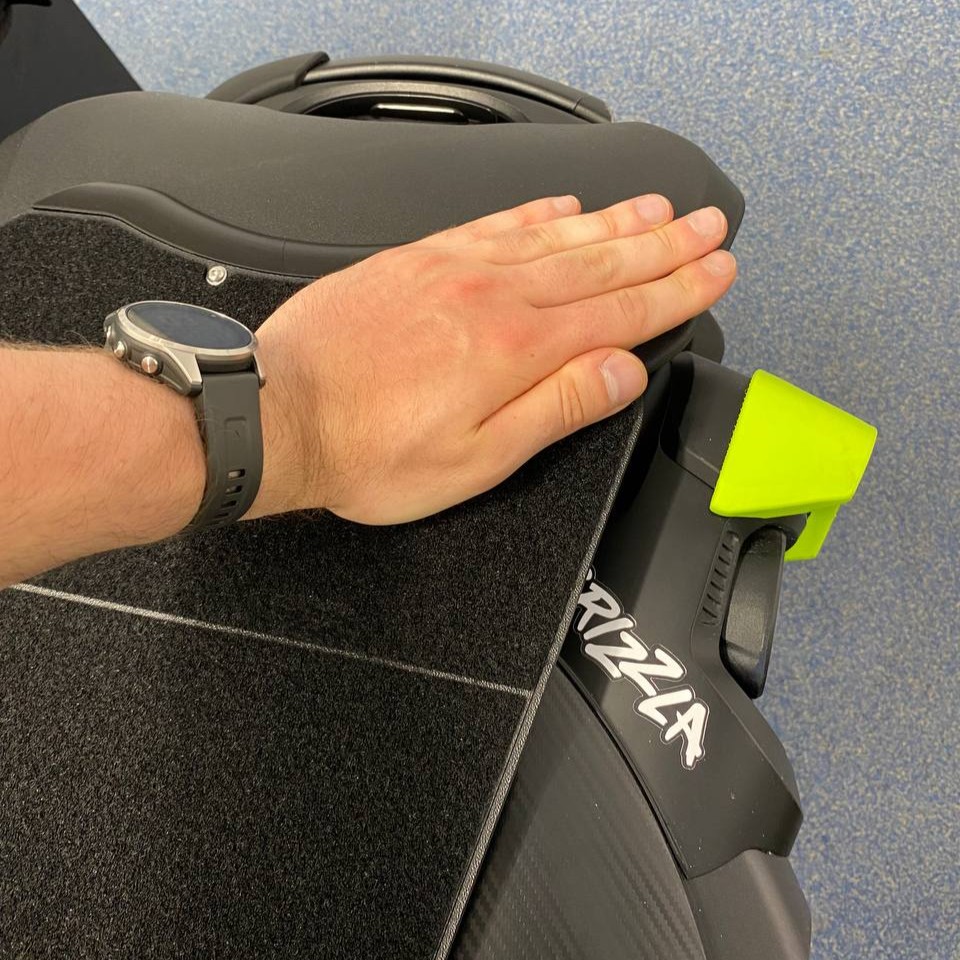

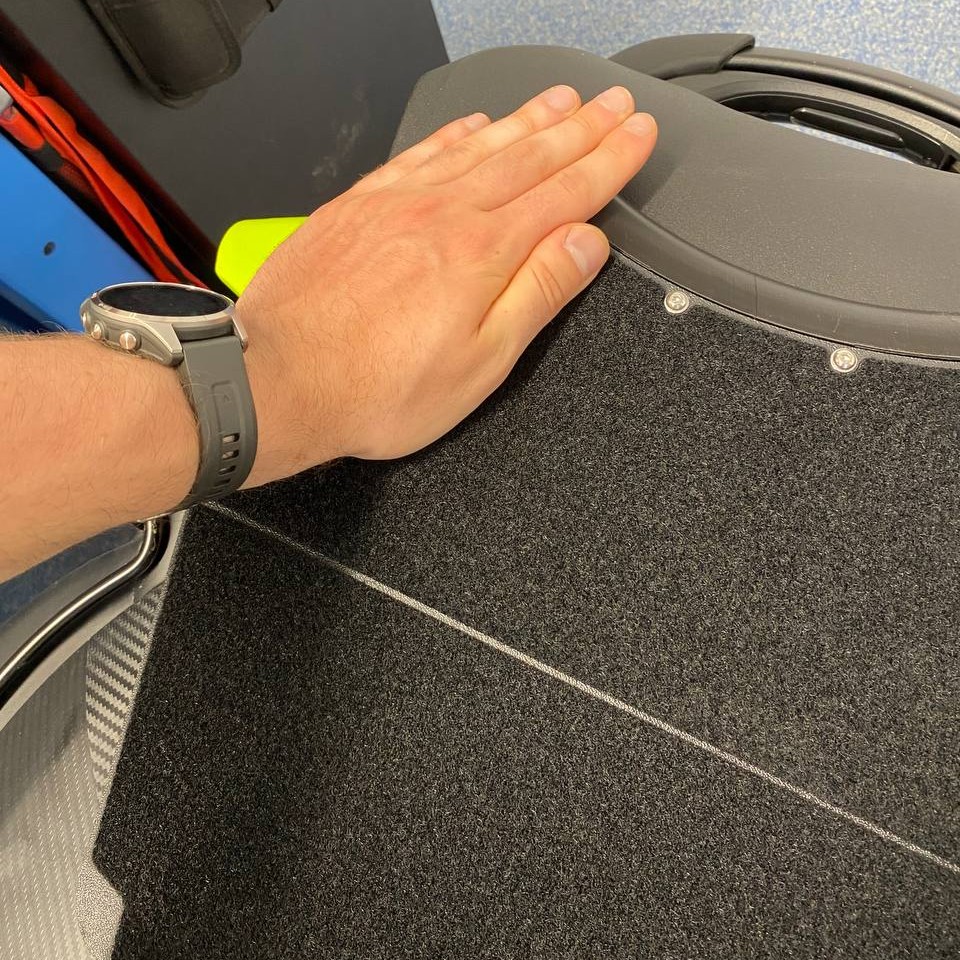

 Step 7: Push the plate against the wheel everywhere the tape is placed

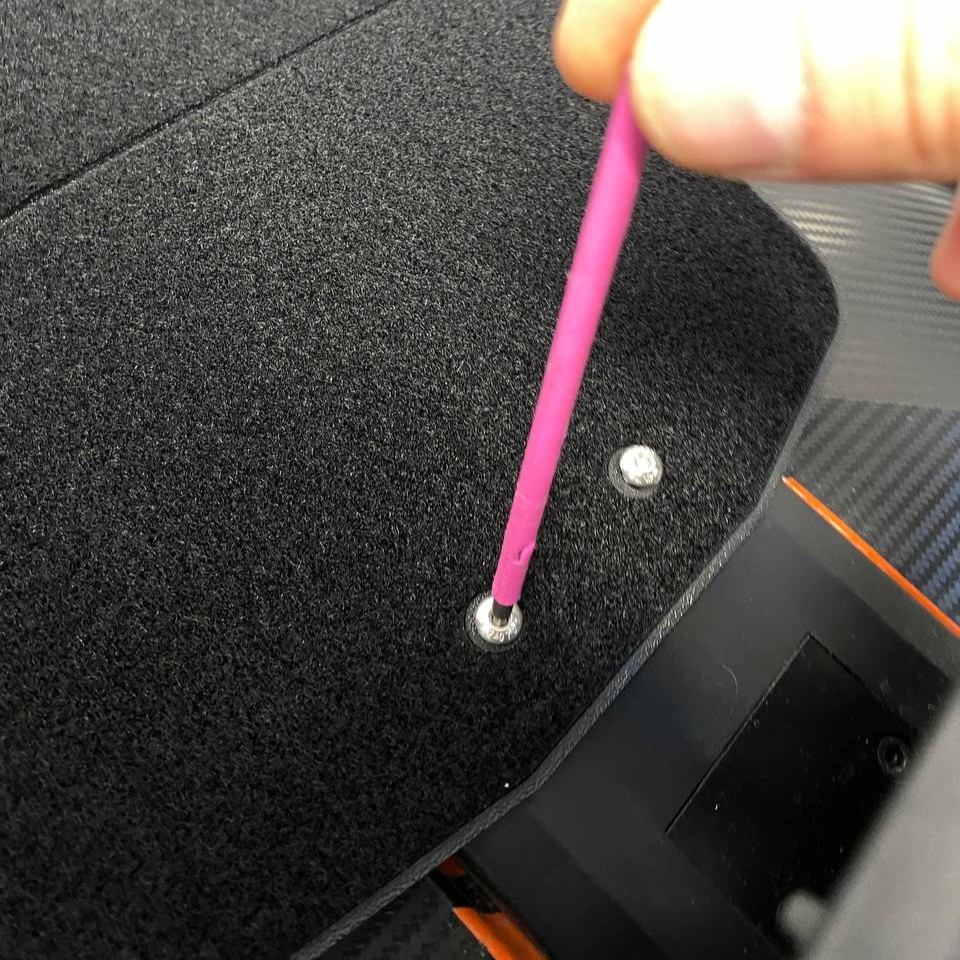

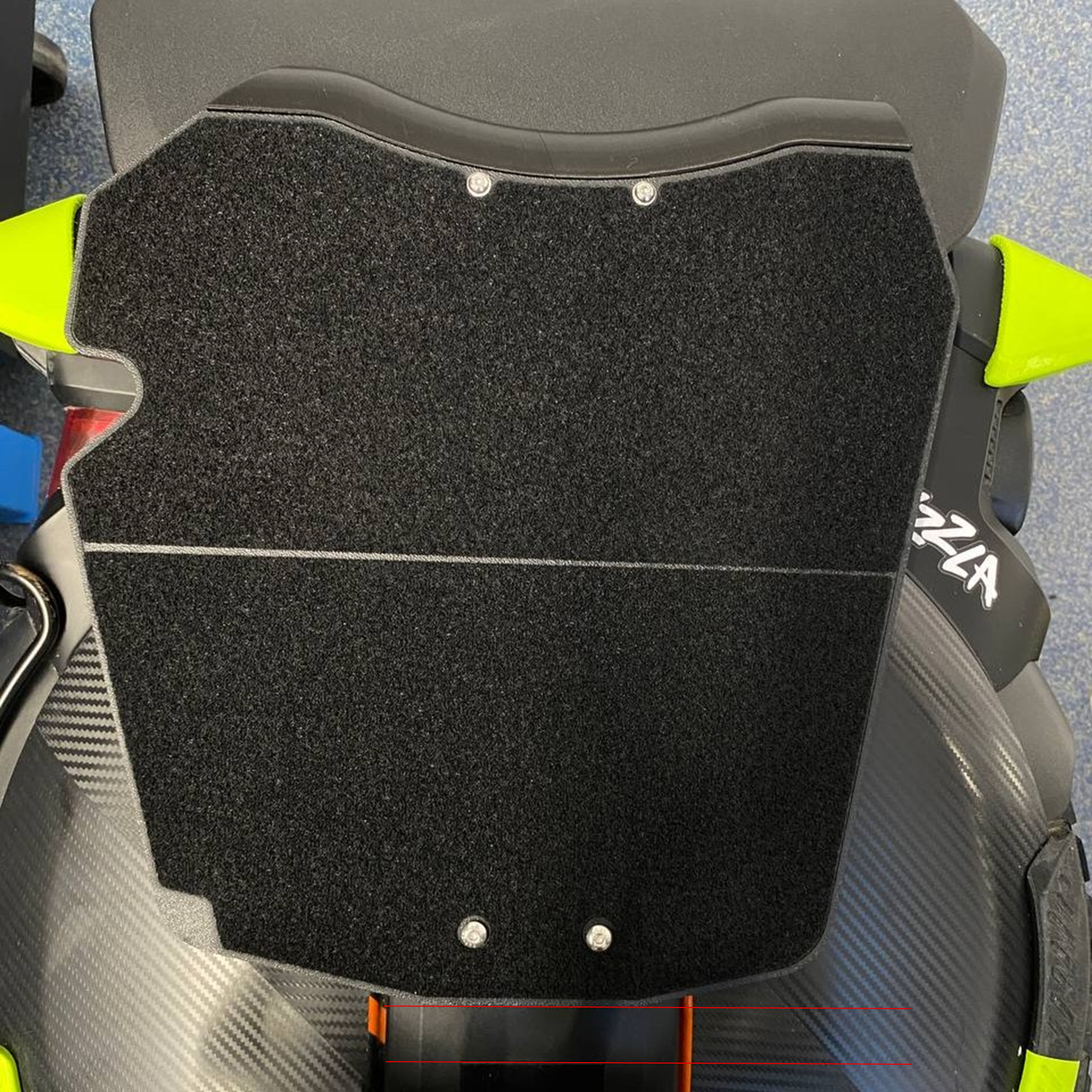

 Step 8: Tighten the 2 bottom bolts
