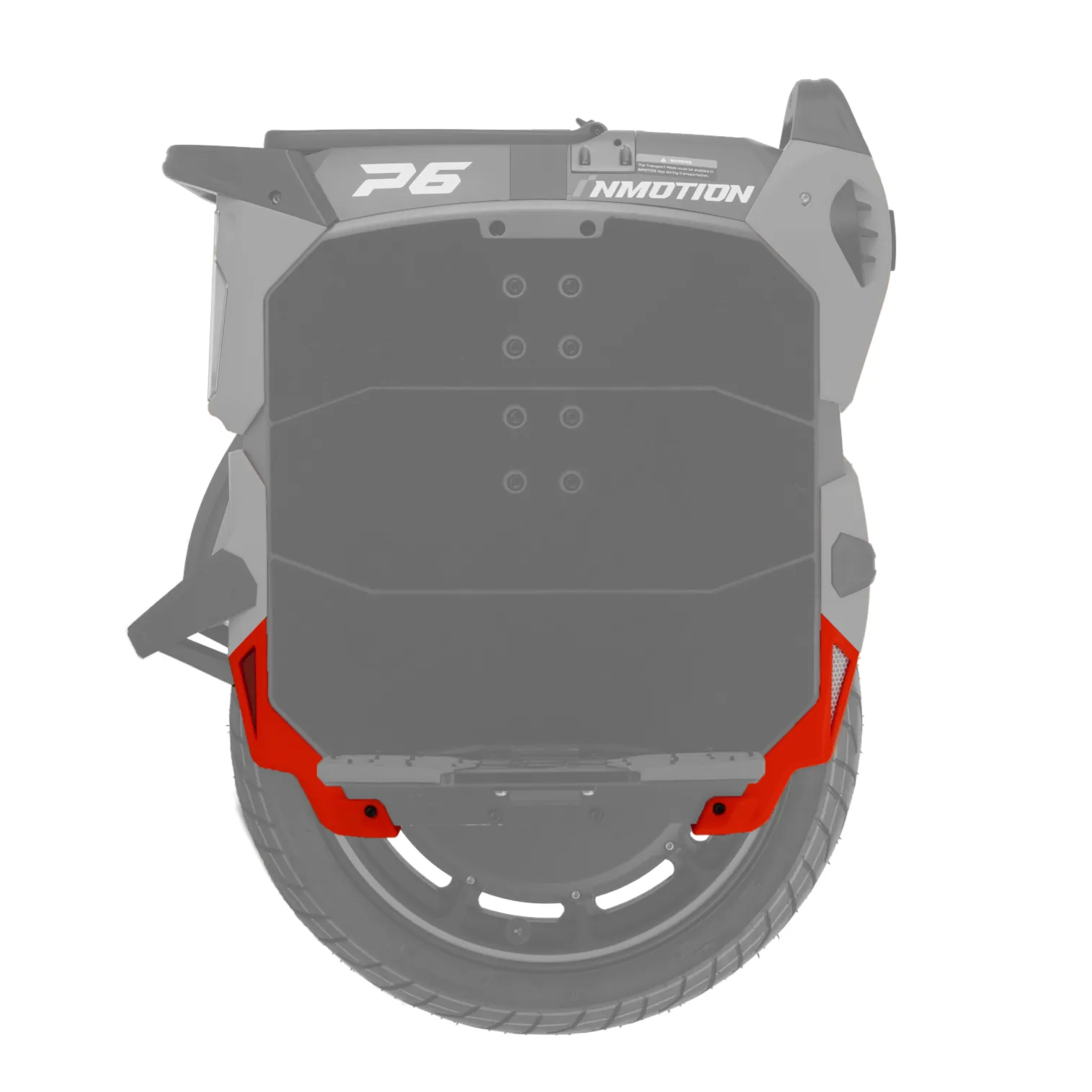

Inmotion P6 – Bottom Corners (for New Battery Panels)

INMOTION P6 – BOTTOM CORNERS (UPDATE FOR NEW BATTERY PANELS)

In 2026 Inmotion started replacing P6 battery side shells under its P6 Battery Shell Safety Notice. The revised shells (the new battery panels) carry a rubber bump at each bottom corner, where the original panels have a continuous plastic outline. In our fit checks that bump pushes bottom bumpers shaped for the original panels outward, so they no longer sit flush. This set brings your existing GRIZZLA bottom bumpers up to the current universal design without buying  whole modules again.

Who This Set Is For

Riders who already own the GRIZZLA P6 Bumper Kit, Front Bottom Bumper or Rear Bottom Bumper bought before 25th October 2026, and whose battery panels have been replaced (or will be replaced) with the revised ones. If you are buying bumpers now, you do not need this set.

Not a Standalone Bumper

These are the corner pieces only. They mount onto the centre sections of your existing Front Bottom and Rear Bottom modules. On their own they cannot be fitted to the wheel and protect nothing. If you need complete modules, see the Front Bottom Bumper, the Rear Bottom Bumper (with Kickstand & Mudguard) or the full P6 Bumper Kit.

How the New Corners Work

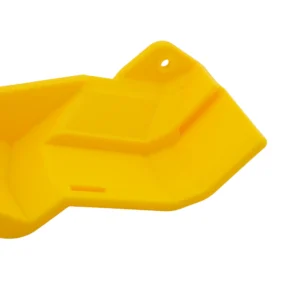

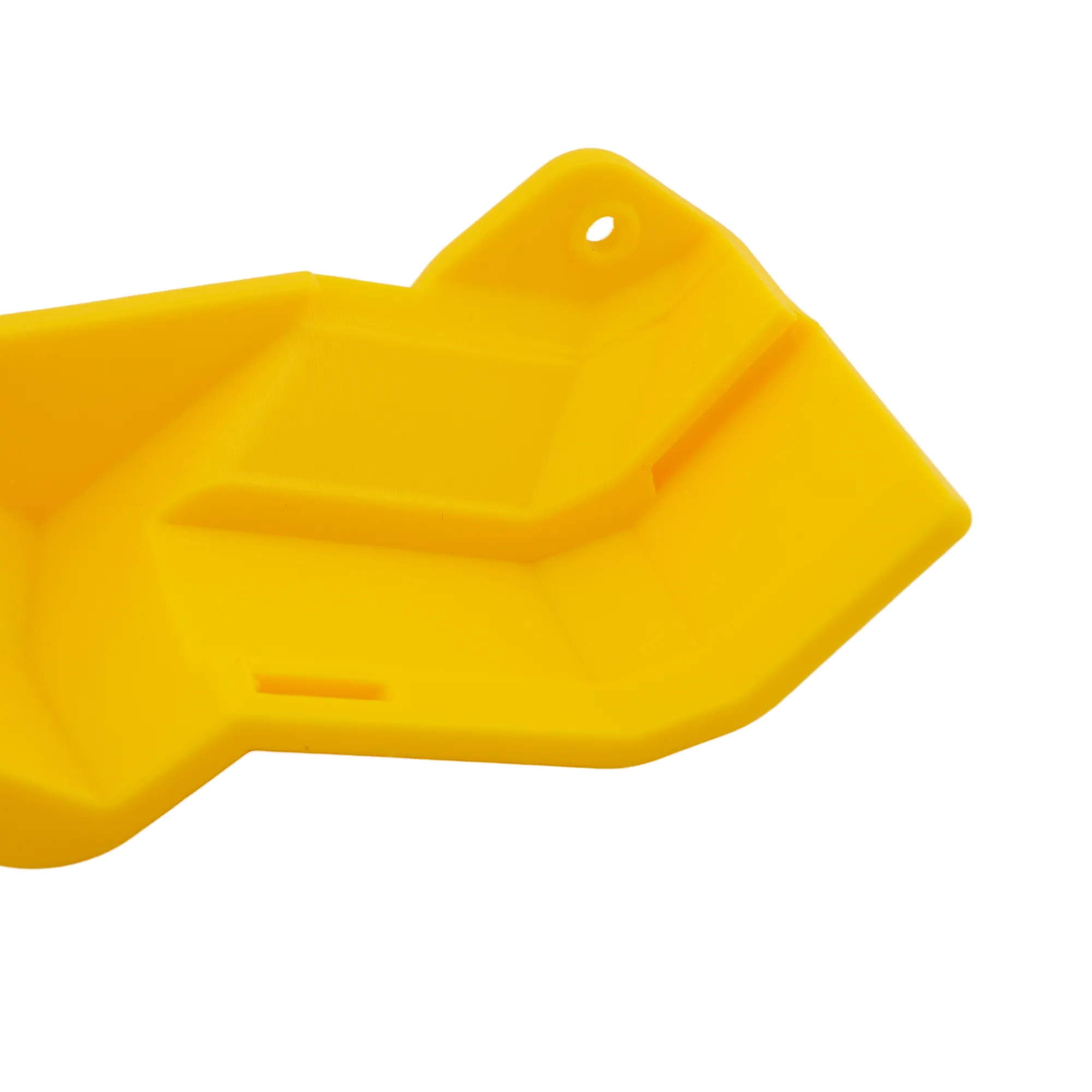

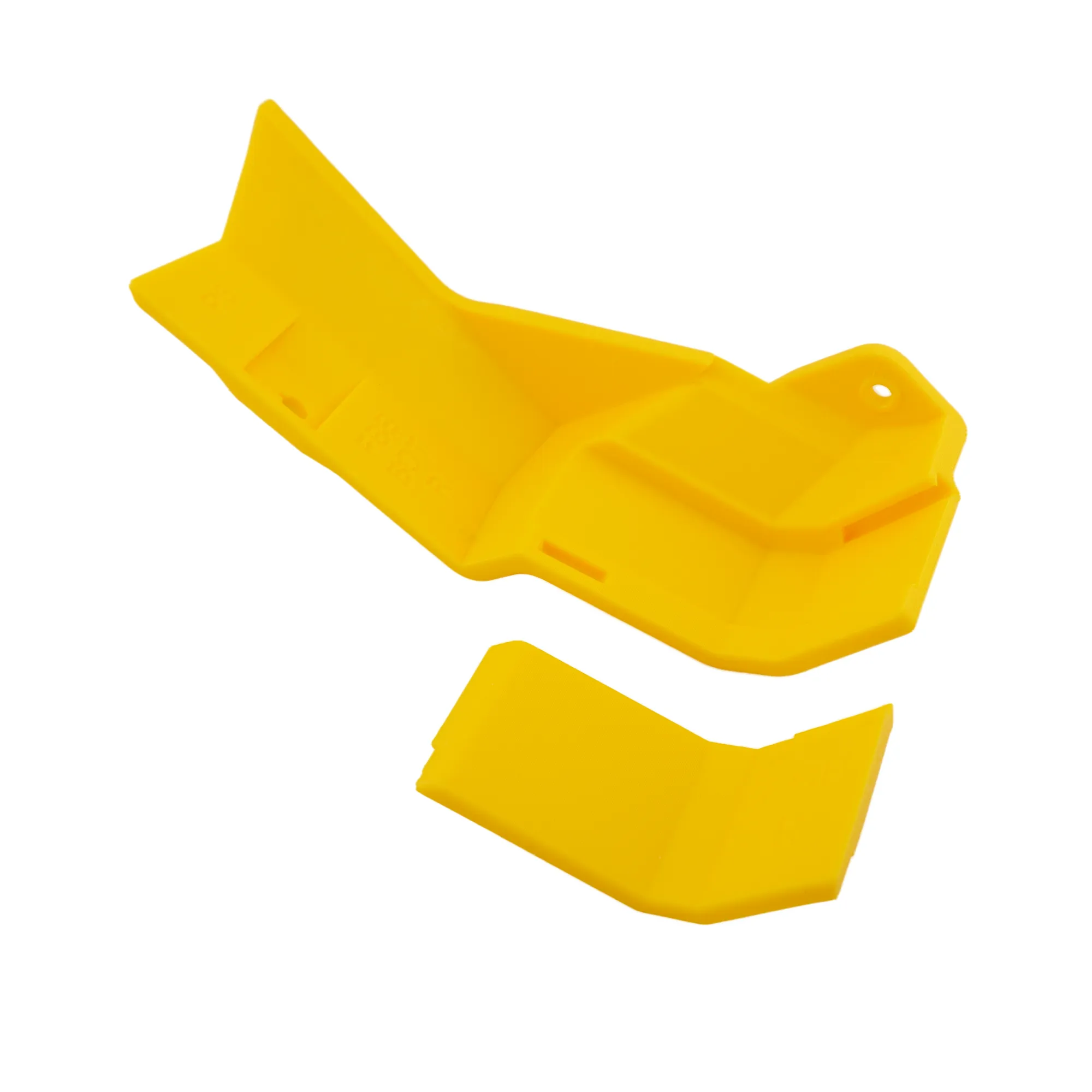

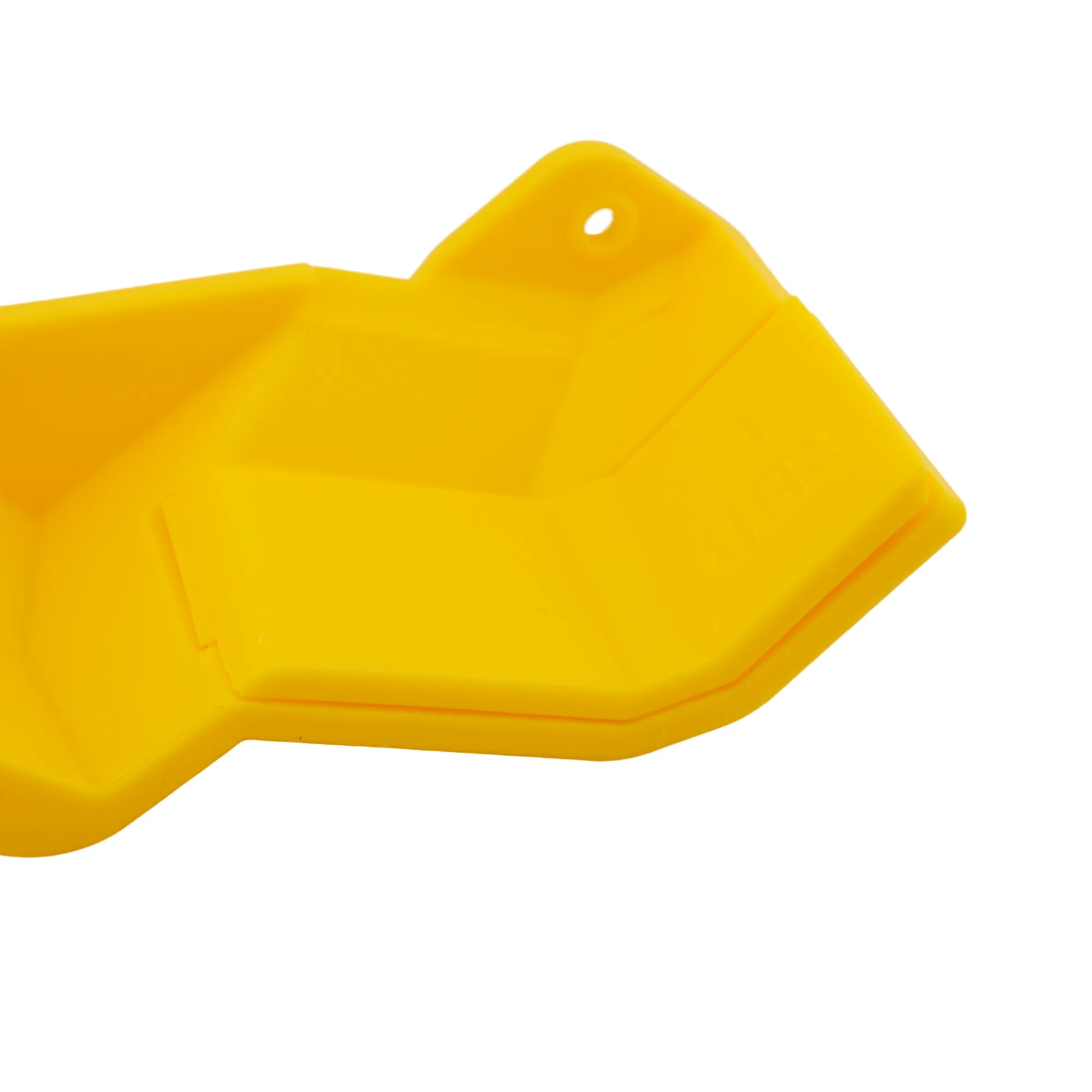

The corners are shaped around the bump of the revised panels, so on new panels they go straight on. For the original panels each corner comes with a press-fit insert that fills the space left for the bump. The inserts are in the box, so the set also works if only one of your panels was replaced, or if you fit the corners before the panel swap.

Reflectors Fitted

The front and rear reflectors of the bottom modules sit on the corner pieces, so every corner in this set comes with its reflector already installed. Nothing to transfer from the old corners.

Installation

Take the Front Bottom and Rear Bottom modules off the wheel, swap the old corner pieces on the centre sections for the new ones (press the inserts in first if your panels are original), then mount the complete modules back on the wheel. A step-by-step installation guide will apper in Support section at Grizzla website.

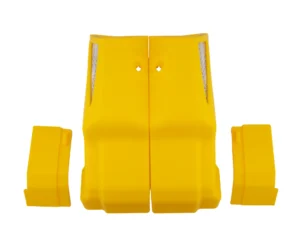

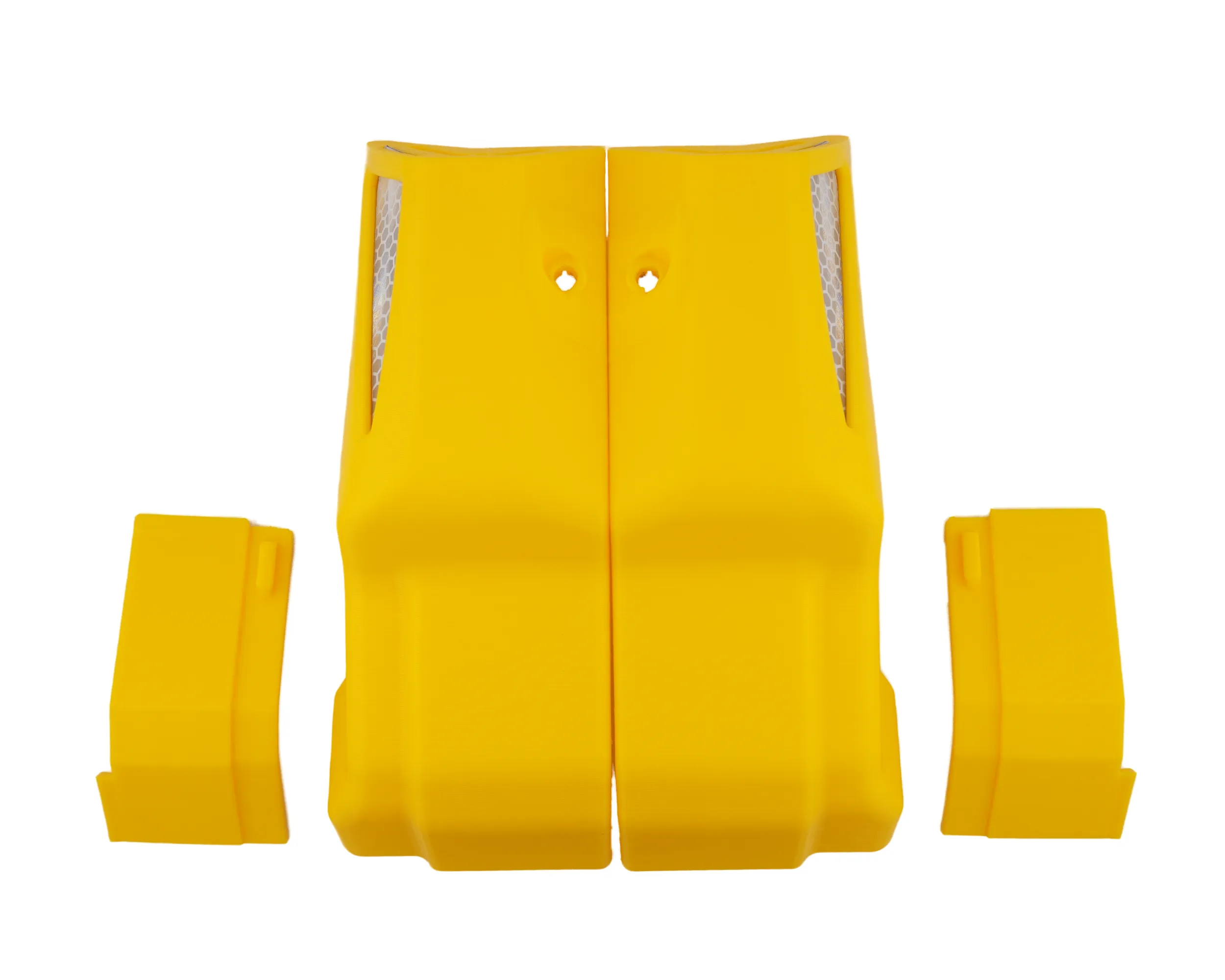

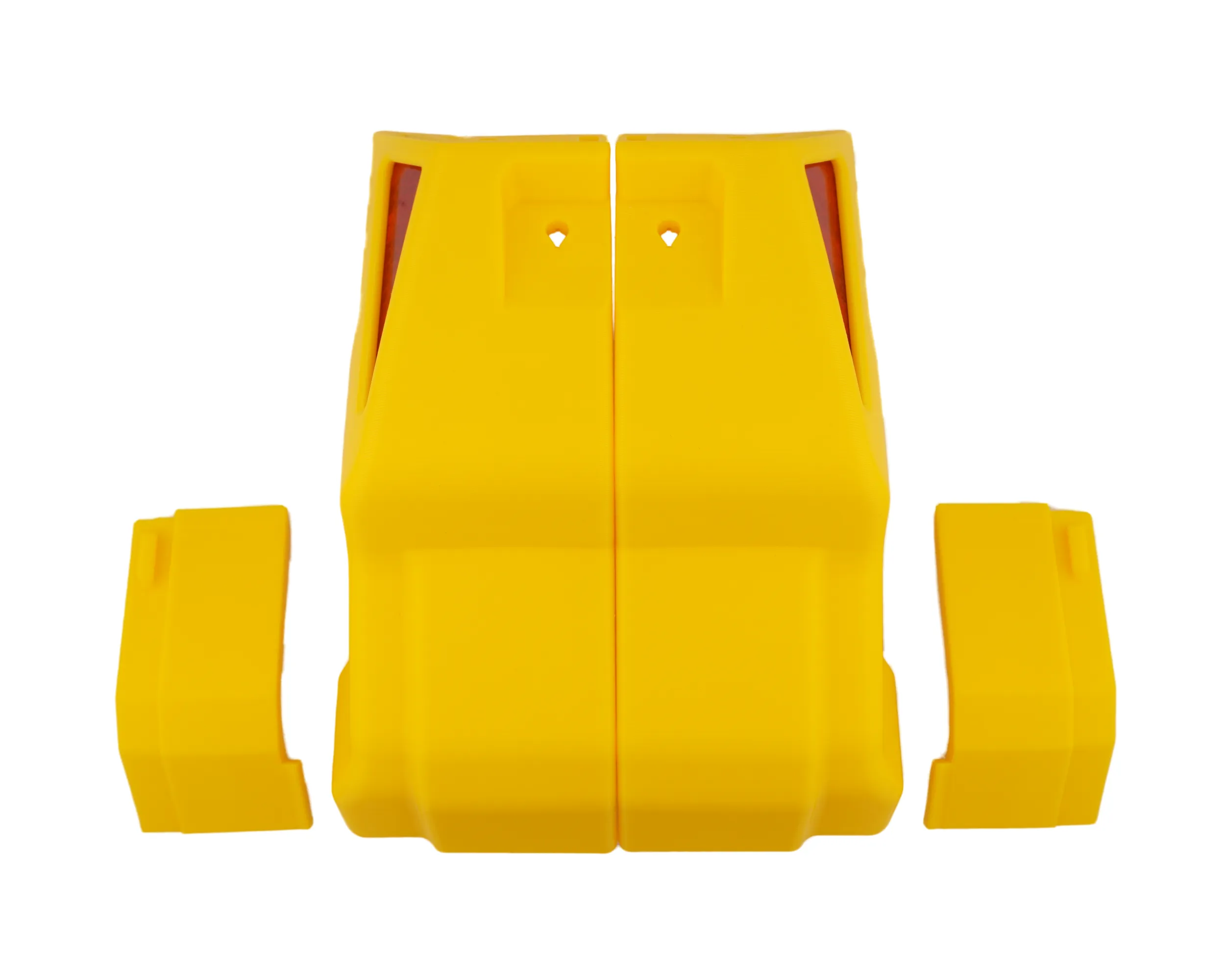

What’s in the Set

• Front Bottom Corners, left and right (2 pcs)
• Rear Bottom Corners, left and right (2 pcs)
• Press-fit inserts for compatibility with the original battery panels (4 pcs)

Set weight: 0.6 kg (1.32 lb).

Colors

Pick the Bumper Bodies color of your existing modules so the new corners match: the same 15+ colors as the kit, including matte finishes and camo tones (matte colors +5 EUR). This set has no accent parts; your existing accents stay where they are.

Key Features:

• Fits Old and New Battery Panels: corners shaped for the revised shells, press-fit inserts for the original ones
• Drop-In Update: replaces only the corner pieces of your existing bottom modules
• Reflectors Fitted: front and rear reflectors already installed
• Color-Matched: same 15+ Bumper Bodies colors as the kit
• Impact-Absorbing Elastopolymer: same material as the rest of the kit
